AVA42L-ANXMB (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ASA4#..G,M ; (1510- )ZSA42..ARL,SA; (1510- )ZSA42..LHD..6F ; (151

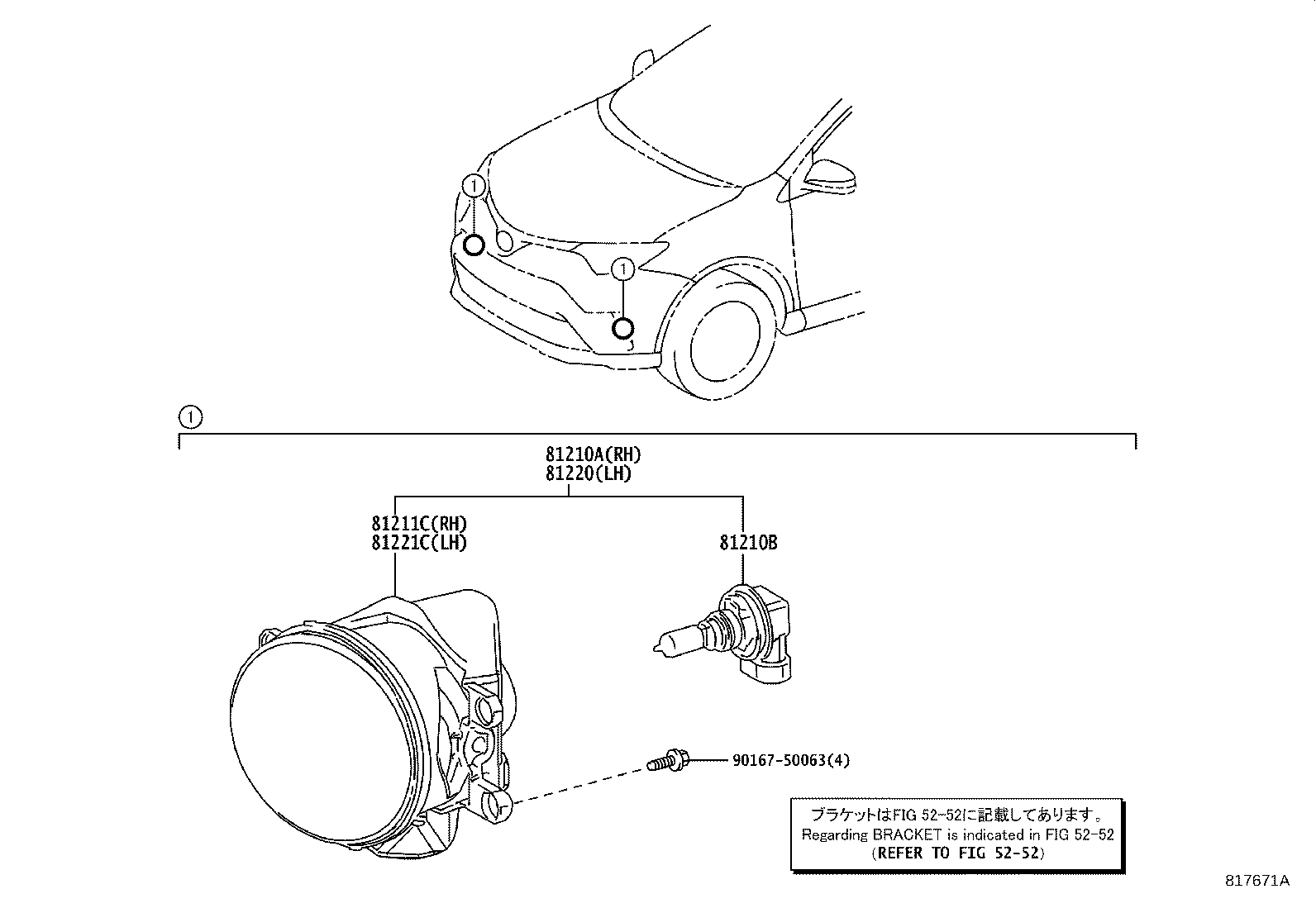

Click highlighted areas on diagram

diagram 5252 81210A 81210B 81211C 81220 81221C 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81210-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81210B - BULB, FOG LAMP
90981-13090

ALA49,AVA4#..(6FC,A)..(G,M)

12V 19W

 2
90981-13090

ALA49,AVA4#..(6FC,A)..(G,M)

12V 19W

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81211-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81220-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
81221-47010

ALA49,AVA4#..(6FC,A)..(G,M)

 1
Common parts
90167-50063
Linked diagrams
5252
