AVA42L-ANXMB (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ARFXE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )2ARFXE

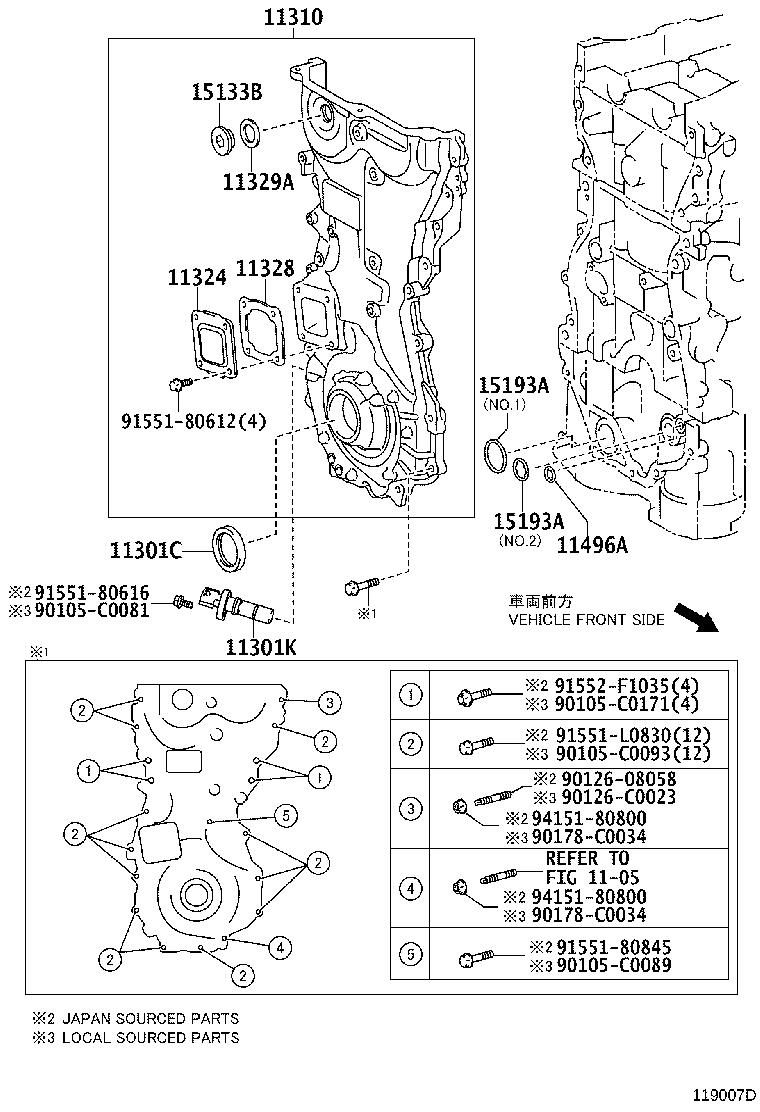

Click highlighted areas on diagram

diagram 1105 11301C 11301K 11310 11324 11328 11329A 11496A 15133B 15193A 15193A 90105C0081 90105C0089 90105C0093 90105C0171 9012608058 90126C0023 90178C0034 90178C0034 9155180612 9155180616 9155180845 91551L0830 91552F1035 9415180800 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-C0036

2ARFXE..AVA4#

*347

 1
90311-40042

2ARFXE..AVA4#

*265 OR *524

 1
11301K - SENSOR, CRANK POSITION
90919-05070

2ARFXE..AVA4#

*347,*265 OR *524

 1
11310 - COVER ASSY, TIMING CHAIN
11310-0V030

2ARFXE..AVA4#

*347

 1
11310-36020

2ARFXE..AVA4#

*265 OR *524

 1
11324 - PLATE, TIMING CHAIN COVER
11324-36010

2ARFXE..AVA4#

*347,*265 OR *524

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-36020

2ARFXE..AVA4#

*347,*265 OR *524

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-36020

2ARFXE..AVA4#

*347,*265 OR *524

 1
11496A - GASKET, OIL HOLE COVER
11496-36010

2ARFXE..AVA4#

*265 OR *524

 1
11496-0V010

2ARFXE..AVA4#

*347

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-36020

2ARFXE..AVA4#

*347,*265 OR *524

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFXE..AVA4#

*265 OR *524,NO.2

 1
15197-0V010

2ARFXE..AVA4#

*347,NO.2:REF.ILLUST

 1
15193-0V010

2ARFXE..AVA4#

*347,NO.1:REF.ILLUST

 1
15193-36010

2ARFXE..AVA4#

*265 OR *524,NO.1

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFXE..AVA4#

*265 OR *524,NO.2

 1
15197-0V010

2ARFXE..AVA4#

*347,NO.2:REF.ILLUST

 1
15193-0V010

2ARFXE..AVA4#

*347,NO.1:REF.ILLUST

 1
15193-36010

2ARFXE..AVA4#

*265 OR *524,NO.1

 1
Common parts
90105-C0081
90105-C0089
90105-C0093
90105-C0171
90126-08058
90126-C0023
90178-C0034
91551-80612
91551-80616
91551-80845
91551-L0830
91552-F1035
94151-80800
Linked diagrams
1105
