ASA44R-ANTXKQ (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)ARL

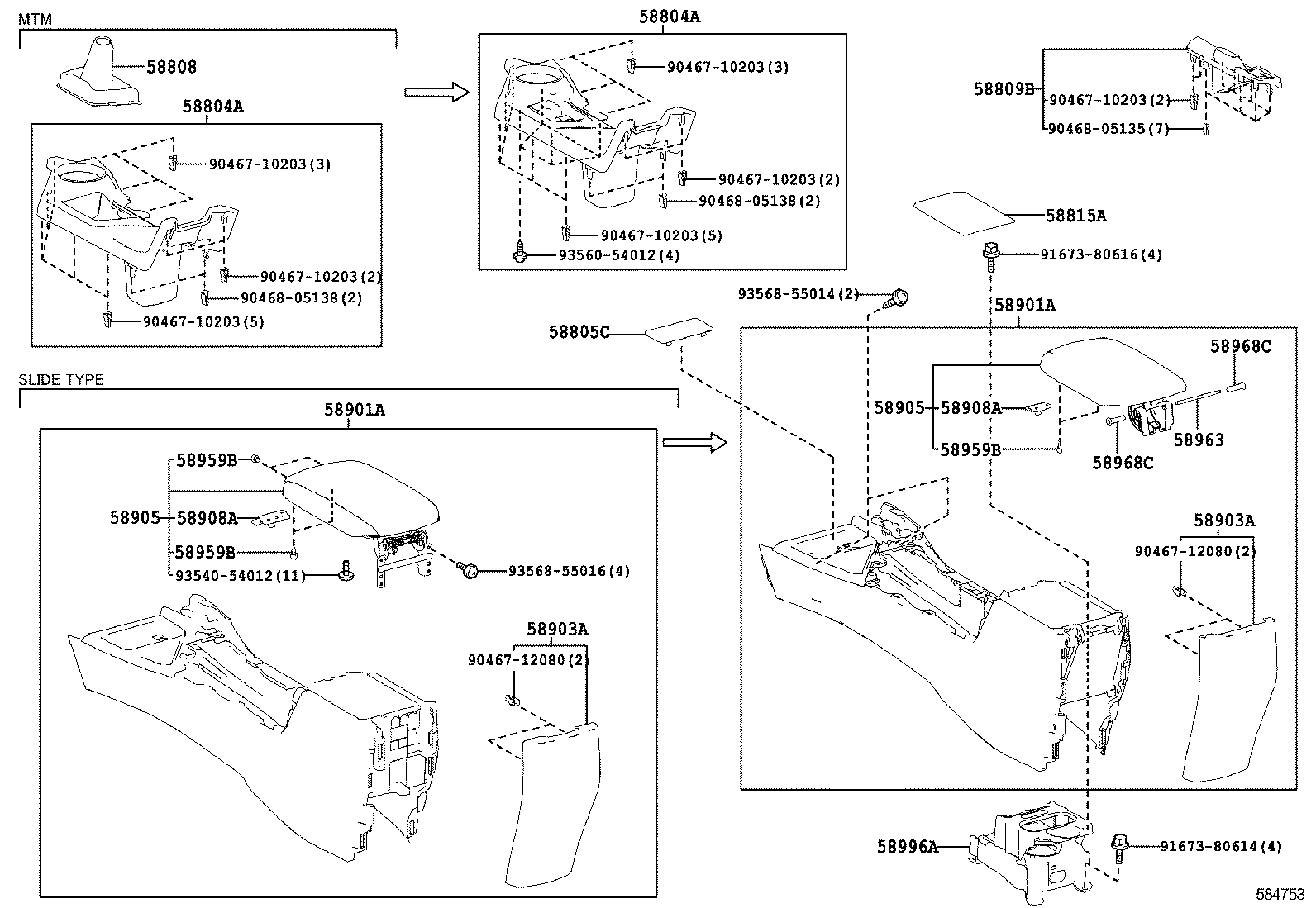

Click highlighted areas on diagram

diagram 58804A 58804A 58805C 58808 58809B 58815A 58901A 58901A 58903A 58903A 58905 58905 58908A 58908A 58959B 58959B 58959B 58963 58968C 58968C 58996A 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046712080 9046712080 9046805135 9046805138 9046805138 9167380614 9167380616 9354054012 9356054012 9356855014 9356855016
Part # Description Qty Price
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-42420

ASA44..6FC..X..ARL

SPECIAL EDITION

 1
58804-42120C0

ASA44..6FC..X..ARL

BLACK,TRIM2#,4#

 1
58804-42160C0

ASA44,ZSA42..6F..X..ARL

BLACK,TRIM2#,4#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-42420

ASA44..6FC..X..ARL

SPECIAL EDITION

 1
58804-42120C0

ASA44..6FC..X..ARL

BLACK,TRIM2#,4#

 1
58804-42160C0

ASA44,ZSA42..6F..X..ARL

BLACK,TRIM2#,4#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-42050C0

ASA4#..X;ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-42080C0

ASA44,ZSA42..6F..X..ARL

BLACK,TRIM2#,4#

 1
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-42020C1

ASA44,ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58809-42021C1

ASA44,ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58815A - CARPET, CONSOLE BOX
58815-42030

ASA4#,ZSA4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-42110C0

ASA44,ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-42110C0

ASA44,ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-42010C0

ASA4#..X;ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-42010C0

ASA4#..X;ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-42040C0

ASA4#..X;ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-42040C0

ASA4#..X;ZSA42..X..ARL

BLACK,TRIM2#,4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12080

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12080

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-42020

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 2
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-42020

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 2
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-42020

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 2
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-47010

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 1
58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER
58968-42010

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 2
58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER
58968-42010

ASA4#,ZSA4#..X;ASA44,ZSA42..6F..G

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-42050

ASA4#,ZSA4#

 1
Common parts
90467-10203
90467-12080
90468-05135
90468-05138
91673-80614
91673-80616
93540-54012
93560-54012
93568-55014
93568-55016
