ASA44R-ANTGKQ (2012)
Toyota Rav4
(1212-1510)ZSA44 ; (1212-1510)ZSA42..X..GEN ; (1212-1510)ASA4#,ZSA42..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-42150J0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 85044-42150J0 |
ASA4#..G HEADLAMP-DISCHARGE,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 85044-42150G0 |
ASA4#..G HEADLAMP-DISCHARGE,DK.GREEN MC.,6V4 |
1 | ||
| 85044-42150A0 |
ASA4#..G HEADLAMP-DISCHARGE,SUPER WHITE 2,040 |
1 | ||
| 85044-42150B1 |
ASA4#..G HEADLAMP-DISCHARGE,GRAY ME.,1G3 |
1 | ||
| 85044-42150A1 |
ASA4#..G HEADLAMP-DISCHARGE,WHITE PEARL CS.,070 |
1 | ||
| 85044-42150B0 |
ASA4#..G HEADLAMP-DISCHARGE,SILVER ME.,1F7 |
1 | ||
| 85044-42150C1 |
ASA4#..G HEADLAMP-DISCHARGE,BLACK MC.,209 |
1 | ||
| 85044-42150A0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),SUPER WHITE 2,040 |
1 | ||
| 85044-42150A1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),WHITE PEARL CS.,070 |
1 | ||
| 85044-42150D0 |
ASA4#..G HEADLAMP-DISCHARGE,RED M.M.,3R3 |
1 | ||
| 85044-42150B1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),GRAY ME.,1G3 |
1 | ||
| 85044-42150E0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),BRONZE M.M.,4T3 |
1 | ||
| 85044-42150B0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),SILVER ME.,1F7 |
1 | ||
| 85044-42150C1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),BLACK MC.,209 |
1 | ||
| 85044-42150E0 |
ASA4#..G HEADLAMP-DISCHARGE,BRONZE M.M.,4T3 |
1 | ||
| 85044-42150D0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),RED M.M.,3R3 |
1 | ||
| 85044-42150E1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),DK.BROWN ME.,4U5 |
1 | ||
| 85044-42150E1 |
ASA4#..G HEADLAMP-DISCHARGE,DK.BROWN ME.,4U5 |
1 | ||
| 85044-42150E2 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),ORANGE ME.,4R8 |
1 | ||
| 85044-42150E2 |
ASA4#..G HEADLAMP-DISCHARGE,ORANGE ME.,4R8 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-42110G0 |
ASA4#..G HEADLAMP-DISCHARGE,DK.GREEN MC.,6V4 |
1 | ||
| 85045-42110J0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 85045-42110J0 |
ASA4#..G HEADLAMP-DISCHARGE,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 85045-42110A0 |
ASA4#..G HEADLAMP-DISCHARGE,SUPER WHITE 2,040 |
1 | ||
| 85045-42110B0 |
ASA4#..G HEADLAMP-DISCHARGE,SILVER ME.,1F7 |
1 | ||
| 85045-42110B1 |
ASA4#..G HEADLAMP-DISCHARGE,GRAY ME.,1G3 |
1 | ||
| 85045-42110A1 |
ASA4#..G HEADLAMP-DISCHARGE,WHITE PEARL CS.,070 |
1 | ||
| 85045-42110D0 |
ASA4#..G HEADLAMP-DISCHARGE,RED M.M.,3R3 |
1 | ||
| 85045-42110C1 |
ASA4#..G HEADLAMP-DISCHARGE,BLACK MC.,209 |
1 | ||
| 85045-42110A0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),SUPER WHITE 2,040 |
1 | ||
| 85045-42110A1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),WHITE PEARL CS.,070 |
1 | ||
| 85045-42110E0 |
ASA4#..G HEADLAMP-DISCHARGE,BRONZE M.M.,4T3 |
1 | ||
| 85045-42110C1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),BLACK MC.,209 |
1 | ||
| 85045-42110E0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),BRONZE M.M.,4T3 |
1 | ||
| 85045-42110B1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),GRAY ME.,1G3 |
1 | ||
| 85045-42110B0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),SILVER ME.,1F7 |
1 | ||
| 85045-42110D0 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),RED M.M.,3R3 |
1 | ||
| 85045-42110E1 |
ASA4#..G HEADLAMP-DISCHARGE,DK.BROWN ME.,4U5 |
1 | ||
| 85045-42110E1 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),DK.BROWN ME.,4U5 |
1 | ||
| 85045-42110E2 |
ASA4#..G HEADLAMP-DISCHARGE,ORANGE ME.,4R8 |
1 | ||
| 85045-42110E2 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB),ORANGE ME.,4R8 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-42051 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85207-42051 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-42051 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85208-42051 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15093 |
ASA44..G..(ARL,GEN) L=320,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 90075-15093 |
ASA4#..G L=320,HEADLAMP-DISCHARGE |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15053 |
ASA4#..G L=35,HEADLAMP-DISCHARGE |
1 | ||
| 90075-15053 |
ASA44..G..(ARL,GEN) L=35,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15065 |
ASA4#..G L=1450,HEADLAMP-DISCHARGE |
1 | ||
| 90075-15065 |
ASA44..G..(ARL,GEN) L=1450,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-42031 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85272-42031 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 85273-42021 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85273-42021 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 85272-28030 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
2 | ||
| 85272-28030 |
ASA4#..G HEADLAMP-DISCHARGE |
2 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 85272-28030 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
2 | ||
| 85272-28030 |
ASA4#..G HEADLAMP-DISCHARGE |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85280-47010 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 90099-32089 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 90099-32089 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17002 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 90075-17002 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ASA4#..G HEADLAMP-DISCHARGE |
2 | ||
| 90075-17001 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
2 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17001 |
ASA4#..G HEADLAMP-DISCHARGE |
2 | ||
| 90075-17001 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
2 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 90075-17005 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 90075-17005 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17003 |
ASA4#..G HEADLAMP-DISCHARGE |
1 | ||
| 90075-17003 |
ASA44..G..(ARL,GEN) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15053 |
ASA4#..G L=35,HEADLAMP-DISCHARGE |
1 | ||
| 90075-15053 |
ASA44..G..(ARL,GEN) L=35,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 90075-15053 |
ASA44..G..(ARL,GEN) L=35,HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 90075-15053 |
ASA4#..G L=35,HEADLAMP-DISCHARGE |
1 | ||
| Common parts | ||||
| 90075-90512 | ||||
| 90075-91002 | ||||

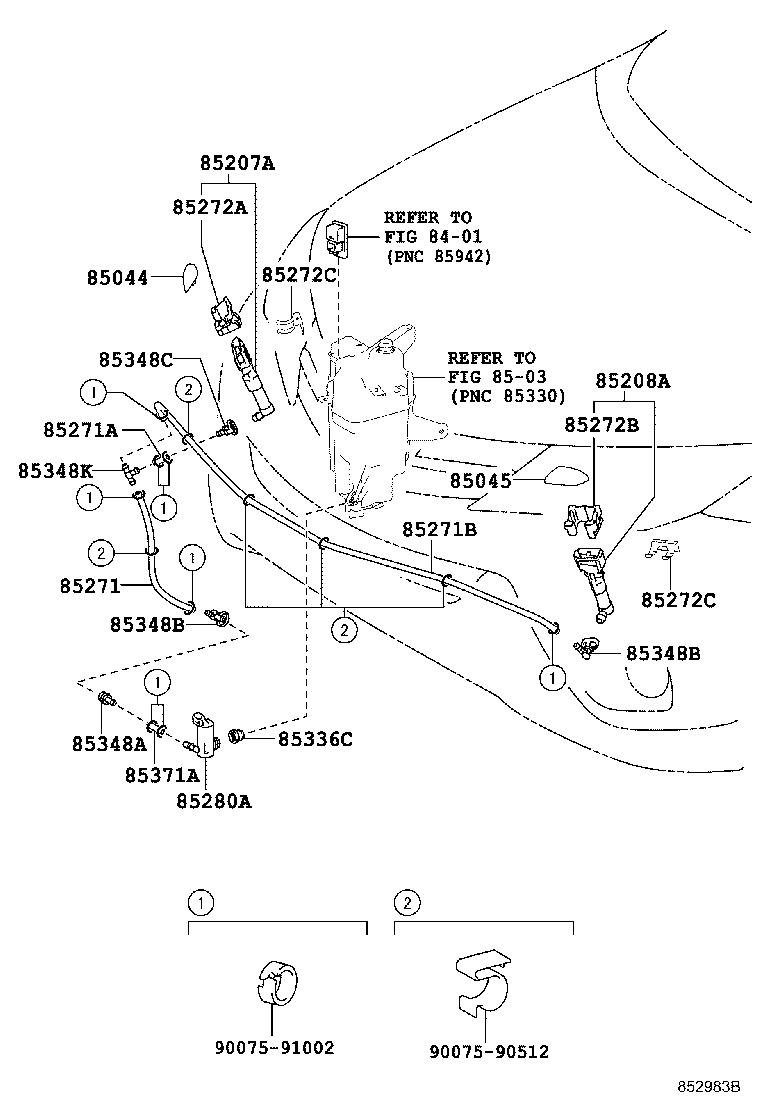

| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
