ASA44R-ANTGKQ (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

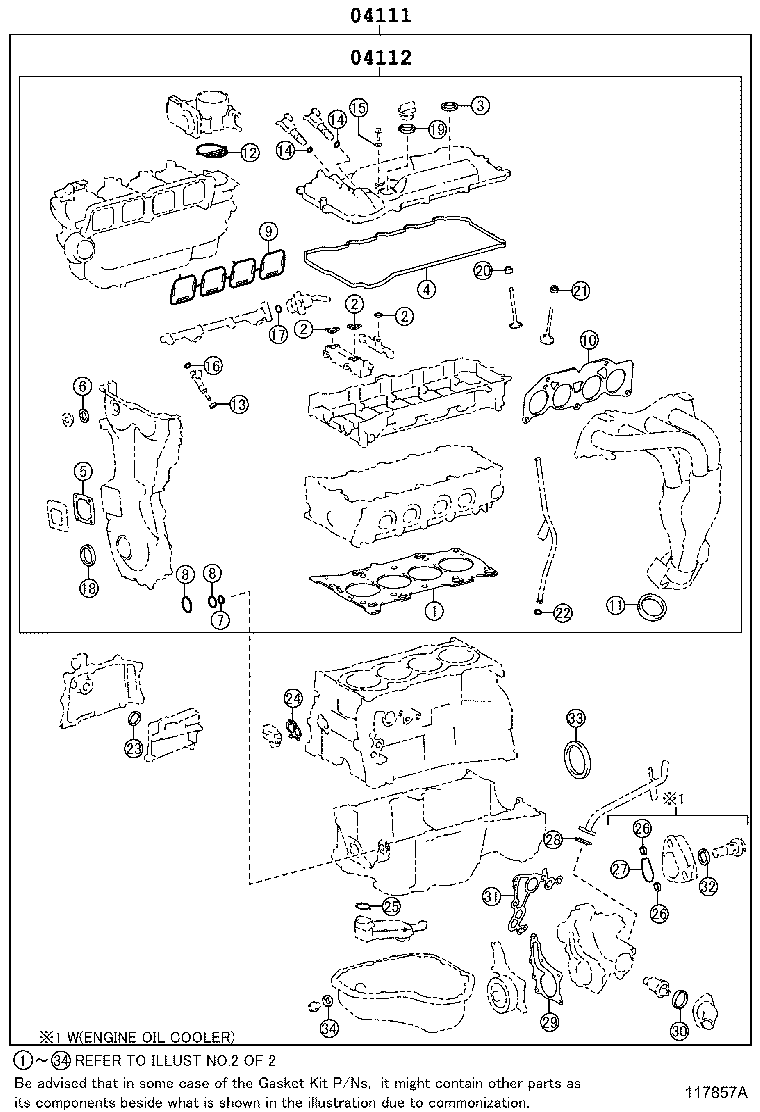

ILLUST NO. 1 OF 2(1212- )2ARFE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-36170

2ARFE..ASA4#..ARL,GCC

 1
04111-36171

2ARFE..ASA4#..ARL,GCC

 1
04111-36173

2ARFE..ASA4#..ARL,GCC

 1
04111-36174

2ARFE..ASA4#..ARL,GCC

 1
04111-36172

2ARFE..ASA4#..ARL,GCC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-36141

2ARFE..ASA4#

 1
04112-36140

2ARFE..ASA4#

 1
04112-36143

2ARFE..ASA4#

 1
04112-36142

2ARFE..ASA4#

 1

ILLUST NO. 2 OF 2(1212- )2ARFE

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1104 1104 1104 1105 1105 1105 1106 1106 1106 1106 1106 1201 1302 1302 1302 1501 1503 1503 1503 1601 1603 1603 1603 1701 1701 1702 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-36170

2ARFE..ASA4#..ARL,GCC

 1
04111-36171

2ARFE..ASA4#..ARL,GCC

 1
04111-36173

2ARFE..ASA4#..ARL,GCC

 1
04111-36174

2ARFE..ASA4#..ARL,GCC

 1
04111-36172

2ARFE..ASA4#..ARL,GCC

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-36141

2ARFE..ASA4#

 1
04112-36140

2ARFE..ASA4#

 1
04112-36143

2ARFE..ASA4#

 1
04112-36142

2ARFE..ASA4#

 1
Linked diagrams
1104
1105
1106
1201
1302
1501
1503
1601
1603
1701
1702
2211
