ASA44R-ANFXKQ (2015)

Toyota Rav4

Production Oct 2015 - May 2018
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ASA44..6FC..M..ARL,GCC ; (1510- )ASA44..RHD..6FC..GEN,SA ; (1510-

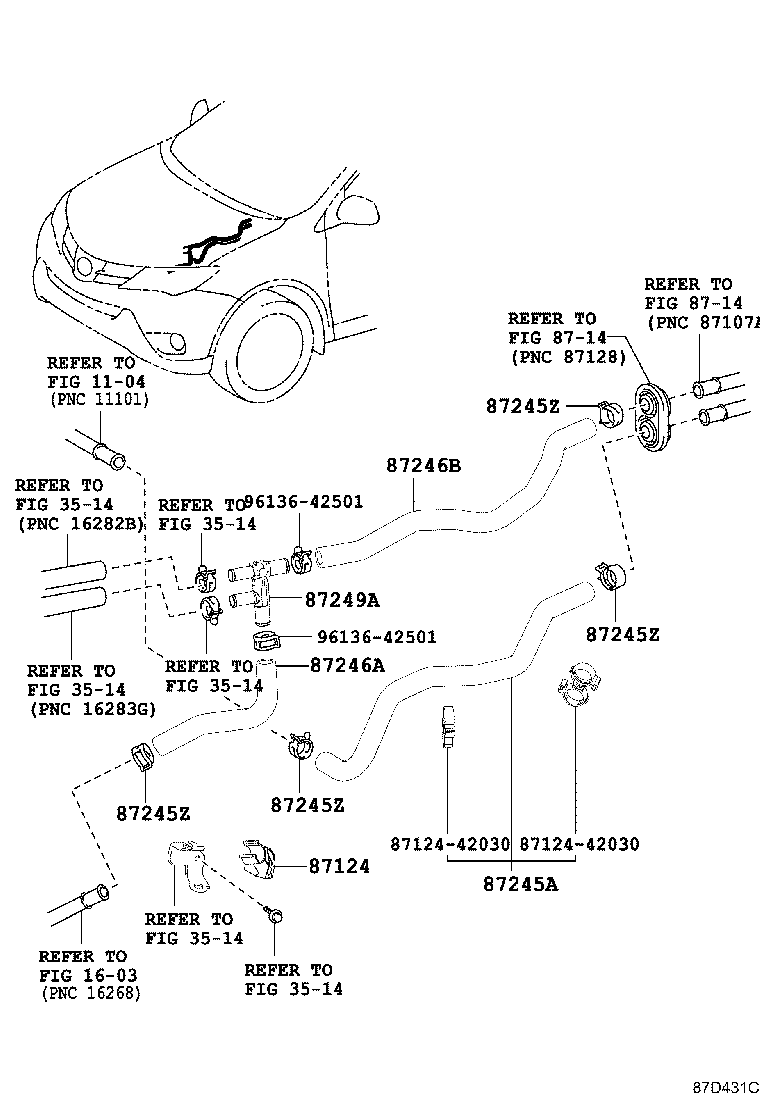

Click highlighted areas on diagram

diagram 1104 1603 3514 3514 3514 3514 3514 3514 87124 8712442030 8712442030 8714 8714 87245A 87245Z 87245Z 87245Z 87245Z 87246A 87246B 87249A 9613642501 9613642501
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-42060

ASA4#..6F

 1
87124-42060

ASA4#..6F

 1
87124-42060

ASA4#..6F

 1
87124-42060

ASA4#..6F

 1
87245A - HOSE, HEATER WATER, INLET A
87209-42170

ASA4#

 1
87209-42170

ASA4#

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

ALA49,ASA4#

 4
96136-42501

ALA49,ASA4#

 4
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

ALA49,ASA4#

 4
96136-42501

ALA49,ASA4#

 4
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

ALA49,ASA4#

 4
96136-42501

ALA49,ASA4#

 4
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42501

ALA49,ASA4#

 4
96136-42501

ALA49,ASA4#

 4
87246A - HOSE, HEATER WATER, OUTLET A
87209-42180

ASA4#..6F

 1
87209-42180

ASA4#..6F

 1
87209-42180

ASA4#..6F

 1
87209-42180

ASA4#..6F

 1
Common parts
87124-42030
96136-42501
