ASA44R-ANFXKQ (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1510)ARL

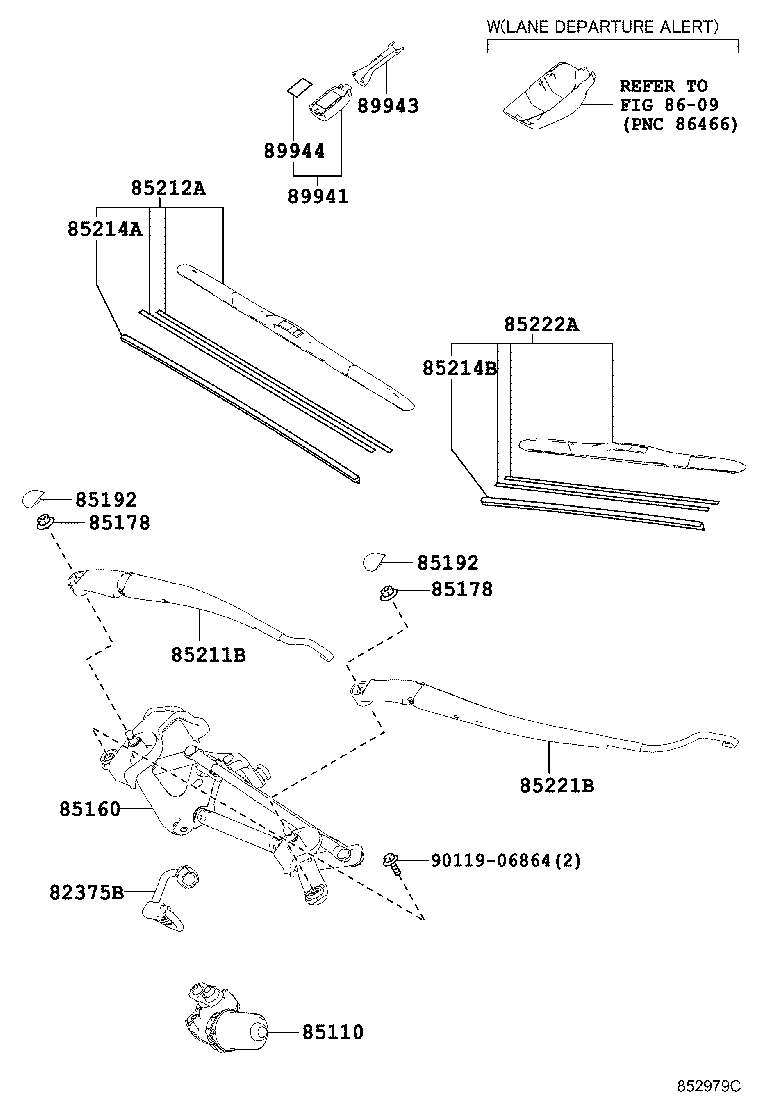

Click highlighted areas on diagram

diagram 82375B 85110 85160 85178 85178 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 8609 89941 89943 89944 9011906864
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-48020

ASA4#,ZSA4#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-42200

ASA44,ZSA42..ARL

 1
85110-42201

ASA44,ZSA42..ARL

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-42180

ASA44,ZSA42..ARL

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ASA4#,ZSA4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ASA4#,ZSA4#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ASA4#,ZSA4#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ASA4#,ZSA4#

 2
85211B - ARM, FRONT WIPER, RH
85211-42160

ASA44,ZSA42..ARL

 1
85212A - BLADE, FR WIPER, RH
85212-52250

ASA44,ZSA42..ARL

 1
85214A - RUBBER, WIPER, RH
85214-52110

ASA44,ZSA42..ARL

 1
85214-68020

ASA44,ZSA42..ARL

 1
85214B - RUBBER, WIPER, LH
85214-28090

ASA44,ZSA42..ARL

 1
85221B - ARM, FRONT WIPER, LH
85221-42160

ASA44,ZSA42..ARL

 1
85222A - BLADE, FR WIPER, LH
85222-42130

ASA44,ZSA42..ARL

 1
Common parts
90119-06864
Linked diagrams
8609
