ASA44R-ANFGKQ (2012)
Toyota Rav4
(1212- )ALA49,ASA4#,ZSA4#
REAR SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-42030 |
ASA4#,ZSA4# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-42160 |
ASA44,ZSA42..ARL |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-42520C5 |
ASA4#,ZSA4#..G BLACK/BLACK,TRIM2# |
1 | ||
| 71075-42520A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71075-42520C6 |
ASA4#,ZSA4#..G BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71075-42510A5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71075-4251020 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71075-42510C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71075-42521A3 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71075-42521C7 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK/BLACK,TRIM2# |
1 | ||
| 71075-42521C8 |
ASA4#,ZSA4#..G BLACK/TRERRACOTTA,TRIM3# |
1 | ||
| 71075-4251123 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71075-4251124 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71075-42511A7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-42570C5 |
ASA44,ZSA42..G..ARL BLACK/ECRU,TRIM3# |
1 | ||
| 71077-42570C4 |
ASA44,ZSA42..G..ARL BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71077-42570C6 |
ASA44,ZSA42..G..ARL BEIGE/BROWN,TRIM4# |
1 | ||
| 71077-42580C7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BROWN,TRIM4# |
1 | ||
| 71077-42580C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71077-42580C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/ECRU,TRIM3# |
1 | ||
| 71077-4257122 |
ASA44,ZSA42..G..ARL BLACK/BLACK,TRIM2# |
1 | ||
| 71077-4257124 |
ASA44,ZSA42..G..ARL BEIGE,TRIM4# |
1 | ||
| 71077-4257123 |
ASA44,ZSA42..G..ARL BLACK/TRERRACOTTA,TRIM3# |
1 | ||
| 71077-4258125 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71077-4258127 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71077-4258126 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-42100 |
ASA4#,ZSA4# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-42130 |
ASA44,ZSA42..ARL |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-42020C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-42030C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-42020C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-42030C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-48010C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-42010 |
ASA4#,ZSA4# |
2 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-42010 |
ASA4#,ZSA4# |
1 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
4 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42080C0 |
ASA4#,ZSA4#..G BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42080C1 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42080A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
2 | ||
| 71940-42090C5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42090A4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
2 | ||
| 71940-42090C6 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42081A3 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
2 | ||
| 71940-42081C2 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42081C3 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-4209120 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42091A6 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
2 | ||
| 71940-42091C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42070 |
ASA4#,ZSA4# |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-48030C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 71308-42010 |
ASA4#,ZSA4# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72995A - COVER, REAR SEAT | ||||
| 72995-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-42030C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-42030C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-50100C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 90119-10578 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90929-01366 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1212- )ALA49,ASA4#,ZSA4#
REAR SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-42030 |
ASA4#,ZSA4# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-42160 |
ASA44,ZSA42..ARL |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-42520A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71076-42520C6 |
ASA4#,ZSA4#..G BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71076-42520C5 |
ASA4#,ZSA4#..G BLACK/BLACK,TRIM2# |
1 | ||
| 71076-4251020 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71076-42510A5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71076-42521A3 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71076-42510C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71076-42521C7 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK/BLACK,TRIM2# |
1 | ||
| 71076-4251123 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71076-4251124 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71076-42521C8 |
ASA4#,ZSA4#..G BLACK/TRERRACOTTA,TRIM3# |
1 | ||
| 71076-42511A7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-4254026 |
ASA44,ZSA42..G..ARL BLACK/ECRU,TRIM3# |
1 | ||
| 71078-4254027 |
ASA44,ZSA42..G..ARL BEIGE/BROWN,TRIM4# |
1 | ||
| 71078-4254025 |
ASA44,ZSA42..G..ARL BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71078-4255026 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/ECRU,TRIM3# |
1 | ||
| 71078-4255027 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71078-4255025 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BROWN,TRIM4# |
1 | ||
| 71078-4254145 |
ASA44,ZSA42..G..ARL BEIGE,TRIM4# |
1 | ||
| 71078-4254144 |
ASA44,ZSA42..G..ARL BLACK/TRERRACOTTA,TRIM3# |
1 | ||
| 71078-4254143 |
ASA44,ZSA42..G..ARL BLACK/BLACK,TRIM2# |
1 | ||
| 71078-4255145 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71078-4255144 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71078-4255143 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-42100 |
ASA4#,ZSA4# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-42130 |
ASA44,ZSA42..ARL |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-42030C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-42020C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-42020C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-42030C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 71846B - CAP, REAR SEAT BACK BOARD, NO.1 | ||||
| 71846-48010C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71849C - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-42010 |
ASA4#,ZSA4# |
2 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71882-42010 |
ASA4#,ZSA4# |
1 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
4 | ||
| 71897 - HOOK, SEAT COVER SIDE | ||||
| 71897-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-42080C0 |
ASA4#,ZSA4#..G BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42080C1 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42080A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
2 | ||
| 71940-42090C5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42090A4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
2 | ||
| 71940-42090C6 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42081A3 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
2 | ||
| 71940-42081C2 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71940-42081C3 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-4209120 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
2 | ||
| 71940-42091A6 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
2 | ||
| 71940-42091C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-42110A0 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71960-42110C3 |
ASA4#,ZSA4#..G BLACK,TRIM2#,3# |
1 | ||
| 71960-42120A5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE/R070,TRIM4# |
1 | ||
| 71960-42120C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71960-42111C4 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK,TRIM2#,3# |
1 | ||
| 71960-42111A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71960-4212120 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71960-42121A6 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE/R070,TRIM4# |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-42070 |
ASA4#,ZSA4# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-48030C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 71309-42010 |
ASA4#,ZSA4# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-42010 |
ASA4#,ZSA4# |
8 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-42120C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK,TRIM2#,3# |
1 | ||
| 72830-42120A1 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 72830-42100C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK(MAJESTY),TRIM3# |
1 | ||
| 72830-42100A2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE,TRIM4# |
1 | ||
| 72830-42120A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 72830-42100C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM20 |
1 | ||
| 72830-42120C1 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) BLACK,TRIM2#,3# |
1 | ||
| 72830-42101A4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE,TRIM4# |
1 | ||
| 72830-42101C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK(MAJESTY),TRIM3# |
1 | ||
| 72830-42101C4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| 72831B - PLATE, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72831-47010 |
ASA4#,ZSA4# |
1 | ||
| 72831C - PLATE, REAR SEAT CENTER ARMREST, NO.2 | ||||
| 72831-52010 |
ASA4#,ZSA4# |
1 | ||
| 72831-42020 |
ASA4#,ZSA4# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-42030A1 |
ASA4#,ZSA4# BEIGE,TRIM4# |
1 | ||
| 72868-42030C0 |
ZSA44;ZSA42..X..GEN;ASA4#,ZSA42..G BLACK,TRIM2#,3# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-50100C0 |
ZSA4#..X..GEN;ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
2 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72995-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72995-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72998C - COVER, REAR SEAT, LH | ||||
| 72996-42030C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72998C - COVER, REAR SEAT, LH | ||||
| 72996-42030C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-42010 |
ASA4#,ZSA4# |
1 | ||
| Common parts | ||||
| 78899-28050 | ||||
| 78899-42010 | ||||
| 78899-60070 | ||||
| 90105-10539 | ||||
| 90119-10578 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90929-01366 | ||||
| Linked diagrams | ||||
| 7152 | ||||

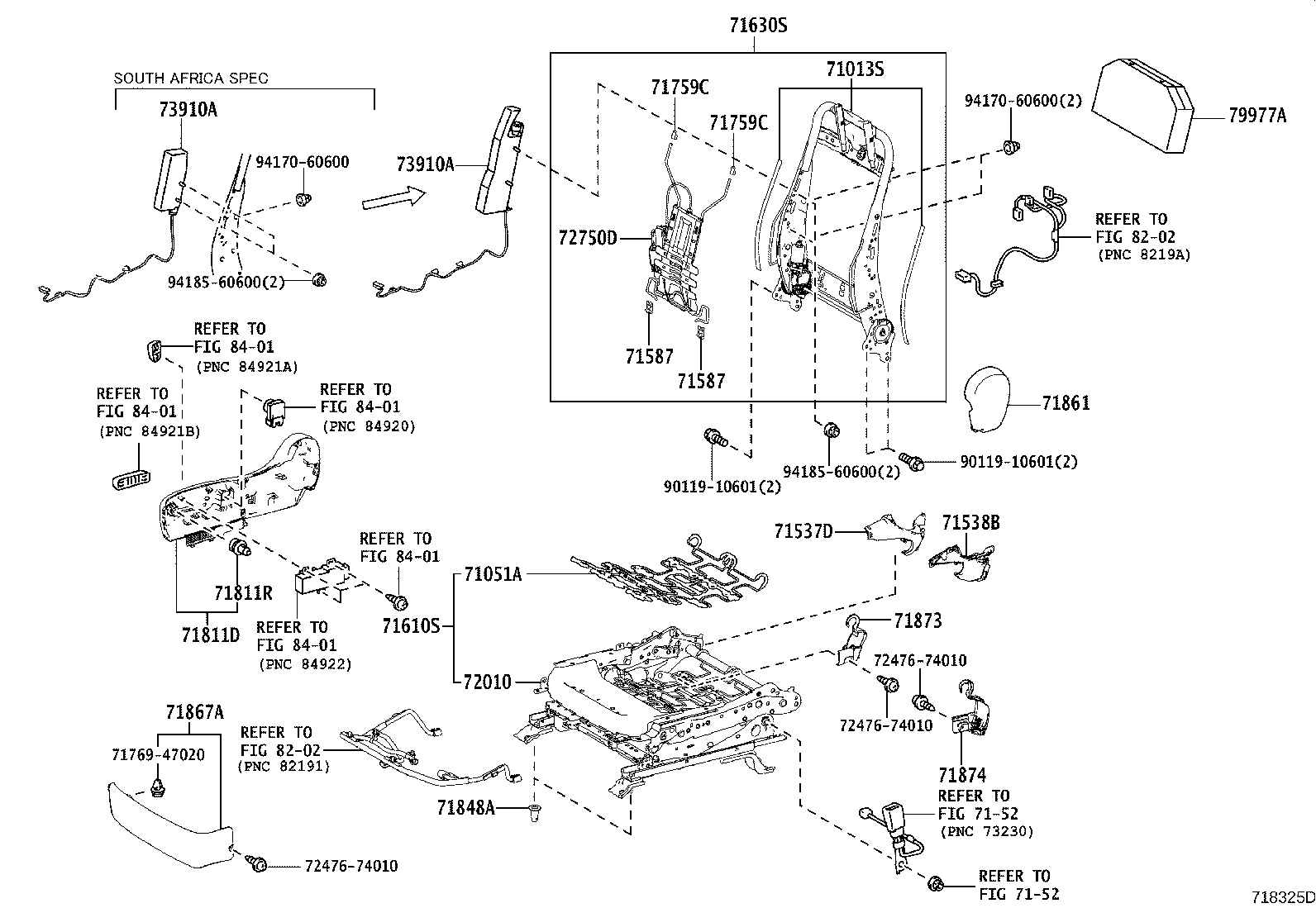

ILLUST NO. 2 OF 3(1212- )RHD
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 71013-42130 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-52050 |
ASA4#,ZSA4# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ASA4#,ZSA4# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-42020C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42020C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-42030 |
ASA44,ZSA42..ARL |
1 | ||
| 71610-42040 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-42100 |
ASA44,ZSA42..ARL |
1 | ||
| 71630-42180 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71811-42160C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#,4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ASA4#,ZSA4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71848-76010 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71848-48050 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42110C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71861-42060C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ASA44,ZSA42..ARL |
1 | ||
| 71873-60030 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ASA44,ZSA42..ARL |
1 | ||
| 71874-60110 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42190 |
ASA44,ZSA42..ARL |
1 | ||
| 72010-42200 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010-42201 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010-42191 |
ASA44,ZSA42..ARL |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ASA4#,ZSA4# |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-42010 |
ASA4#,ZSA4# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-42010 |
ASA4#,ZSA4# |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42020C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52120 |
ASA4#,ZSA4# |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 93269-55010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(1212- )
SEAT TRACK COVER(FRONT SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-42050C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-42010C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-42020C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-42020C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| Common parts | ||||
| 90119-10966 | ||||
ILLUST NO. 2 OF 3(1212-1608)G..ARL ; (1212- )RHD..G..GEN,SA
DRIVER SEAT, W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 71013-42130 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-42020C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42020C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-42030 |
ASA44,ZSA42..ARL |
1 | ||
| 71610-42040 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-42100 |
ASA44,ZSA42..ARL |
1 | ||
| 71630-42180 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-42110C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71811-42160C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3#,4# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-47020 |
ASA4#,ZSA4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71848-76010 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71848-48050 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-42110C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71861-42060C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-42030C0 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ASA44,ZSA42..ARL |
1 | ||
| 71873-60030 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
ASA44,ZSA42..ARL |
1 | ||
| 71874-60110 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42190 |
ASA44,ZSA42..ARL |
1 | ||
| 72010-42200 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010-42201 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 72010-42191 |
ASA44,ZSA42..ARL |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33080 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-52120 |
ASA4#,ZSA4# |
2 | ||
| Common parts | ||||
| 71769-47020 | ||||
| 72476-74010 | ||||
| 90119-10601 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1212- )RHD
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42070 |
ASA44,ZSA42..ARL |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47060 |
ASA44,ZSA42..ARL |
2 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-52050 |
ASA4#,ZSA4# |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASA44,ZSA42..ARL |
4 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
ASA44,ZSA42..ARL |
4 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-42010 |
ASA44,ZSA42..ARL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-42090 |
ASA44,ZSA42..ARL |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
ASA4#,ZSA4# |
2 | ||
| 71759-47010 |
ASA4#,ZSA4# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-42140C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-47020 |
ASA4#,ZSA4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71848-76010 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
2 | ||
| 71848-48050 |
ASA44,ZSA42..ARL;ASA4#,ZSA4#..LHD..G |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42090C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42210 |
ASA44,ZSA42..ARL |
1 | ||
| 72020-42211 |
ASA44,ZSA42..ARL |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ASA4#,ZSA4# |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-42010 |
ASA4#,ZSA4# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-42010 |
ASA4#,ZSA4# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040C0 |
ASA44,ZSA42..G..ARL BLACK,TRIM2#,3#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42060 |
ASA44,ZSA42..ARL |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42060 |
ASA44,ZSA42..ARL |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1212- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1212- )ALA49,ASA4#,ZSA4#
SEAT TRACK COVER(REAR SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-42010 |
ASA4#,ZSA4# |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-42010C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-42020C0 |
ASA4#,ZSA4#..G;ZSA4#..6F..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-42040C0 |
ASA42..G;ZSA4#..A..X..GEN;ASA44,ZSA42..G..(ARL,GCC) BLACK,TRIM2#,3#,4# |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79966-42060C0 |
ASA42..G;ZSA4#..A..X..GEN;ASA44,ZSA42..G..(ARL,GCC) BLACK,TRIM2#,3#,4# |
1 | ||
| Common parts | ||||
| 90105-10539 | ||||
ILLUST NO. 1 OF 3(1212- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-42760C7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71071-42760A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE,TRIM4# |
1 | ||
| 71071-42760C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71071-42730C5 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71071-42730C4 |
ASA44,ZSA42..G..ARL BLACK/BLACK,TRIM2# |
1 | ||
| 71071-42730A2 |
ASA44,ZSA42..G..ARL BEIGE,TRIM4# |
1 | ||
| 71071-42761C7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71071-42761C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71071-42761A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE,TRIM4# |
1 | ||
| 71071-42731A4 |
ASA44,ZSA42..G..ARL BEIGE/BROWN,TRIM4# |
1 | ||
| 71071-42731C9 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71071-42731C8 |
ASA44,ZSA42..G..ARL BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71071-4276121 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71071-4276122 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71071-42761A5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-42570C7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71072-42570A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BEIGE,TRIM4# |
1 | ||
| 71072-42530A2 |
ASA44,ZSA42..G..ARL BEIGE,TRIM4# |
1 | ||
| 71072-42530C5 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71072-42570C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71072-42530C4 |
ASA44,ZSA42..G..ARL BLACK/BLACK,TRIM2# |
1 | ||
| 71072-42571A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE,TRIM4# |
1 | ||
| 71072-42571C7 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71072-42571C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71072-42531C9 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71072-42531C8 |
ASA44,ZSA42..G..ARL BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71072-42531A4 |
ASA44,ZSA42..G..ARL BEIGE/BROWN,TRIM4# |
1 | ||
| 71072-4257122 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71072-4257121 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRACOTTA/ECRU,TRIM3# |
1 | ||
| 71072-42571A5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-42A70A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71073-42A70C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71073-42A70C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71073-42A71A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71073-42A71C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71073-42A71C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71073-42A50C1 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71073-42A50A0 |
ASA44,ZSA42..G..ARL BEIGE/BEIGE,TRIM4# |
1 | ||
| 71073-42A50C0 |
ASA44,ZSA42..G..ARL BLACK/BLACK,TRIM2# |
1 | ||
| 71073-42A72C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71073-42A72A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71073-42A72C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-42530A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71074-42530C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71074-42530C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71074-42531C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71074-42531C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71074-42470C3 |
ASA44,ZSA42..G..ARL BLACK,TRIM2# |
1 | ||
| 71074-42470A2 |
ASA44,ZSA42..G..ARL BEIGE,TRIM4# |
1 | ||
| 71074-42531A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71074-42470C4 |
ASA44,ZSA42..G..ARL BLACK/TERRACOTTA,TRIM3# |
1 | ||
| 71074-42532C3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71074-42532A1 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71074-42532C2 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/TERRA COTTA/ECRU,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-42190 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71511-42230 |
ASA44,ZSA42..G..ARL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-42020 |
ASA44,ZSA42..G..ARL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-42300 |
ASA44,ZSA42..G..ARL |
1 | ||
| 71551-42310 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-42140 |
ASA44,ZSA42..G..ARL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-42200A1 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71910-42200B2 |
ASA44,ZSA42..G..ARL GRAY,TRIM1# |
1 | ||
| 71910-42220A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71910-42200C1 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42200C0 |
ASA4#,ZSA4#..G BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42220C4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42220C5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42201A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71910-42201C2 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42201C3 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42221A4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71910-42221C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42221C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-42200A1 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71910-42200C0 |
ASA4#,ZSA4#..G BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42200C1 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42220A3 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71910-42200B2 |
ASA44,ZSA42..G..ARL GRAY,TRIM1# |
1 | ||
| 71910-42220C4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42201C2 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42201A2 |
ASA4#,ZSA4#..G BEIGE,TRIM4# |
1 | ||
| 71910-42220C5 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42201C3 |
ASA4#,ZSA4#..G BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71910-42221A4 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,LT.BEIGE/BEIGE/BROWN,TRIM4# |
1 | ||
| 71910-42221C8 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/LT.BROWN,TRIM2# |
1 | ||
| 71910-42221C9 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK/REDDISH BROWN,TRIM3# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71930-47020C0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71932-42020A0 |
ASA4#,ZSA4# W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020C0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71932-42020C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71930-47020C0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71932-42020A0 |
ASA4#,ZSA4# W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020C0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71932-42020C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71930-47020C0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020C0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71932-42020A0 |
ASA4#,ZSA4# W(LOCK),SHELL,TRIM4# |
1 | ||
| 71932-42020C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 71931-47020C0 |
ASA42..G;ASA44,ZSA42..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..ARL W(LOCK),SHELL,TRIM40 |
1 | ||
| 71931-47020A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM40 |
1 | ||
| 71930-47020A0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71930-47020C0 |
ASA44,ZSA42..G..ARL W(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020C0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 71931-47020A0 |
ASA44,ZSA42..G..ARL W/O(LOCK),L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM4# |
1 | ||
| 71932-42020A0 |
ASA4#,ZSA4# W(LOCK),SHELL,TRIM4# |
1 | ||
| 71932-42020C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030C0 |
ASA42,ZSA4#..G;ASA44..G..(ARL,GCC) W/O(LOCK),BLACK,TRIM2#,3# |
1 | ||
| 71932-42030A0 |
ASA4#,ZSA4# W/O(LOCK),SHELL,TRIM4# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-42190 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42191 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-42180 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42181 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-42170 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42171 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-42170 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 87510-42171 |
ASA44,ZSA42..G..ARL L3 PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
