ASA44L-ANTXKV (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1212- )2ARFE

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101J 11102A 11102A 11103 11114A 11114A 11115 11115A 11115A 11117E 11117F 11117J 11117N 11122 11126 11131 11135 11151A 11151H 11159H 11159H 11159H 11193 11201 11213 1201 1201 12108 12108A 12281A 12282D 12601B 15330A 15678A 1603 1603 1603 1603 8404 8404 8716 8716 9155180616 9155180616 9155281025 9155281040 9167180616
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39776

2ARFE..ASA4#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02164

2ARFE..ASA4#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11034

2ARFE..ASA4#

 10
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37010

2ARFE..ASA4#

 2
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2ARFE..ASA4#

 2
11102A - SENSOR, CAMSHAFT POSITION
90919-05060

2ARFE..ASA4#

 2
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-36011

2ARFE..ASA4#

 1
11114A - PIN, STRAIGHT
90250-06003

2ARFE..ASA4#

L=14,OD=6

 2
11114A - PIN, STRAIGHT
90250-06003

2ARFE..ASA4#

L=14,OD=6

 2
11115 - GASKET, CYLINDER HEAD
11115-36031

2ARFE..ASA4#

 1
11115-36030

2ARFE..ASA4#

 1
11115A - PIN, RING
90253-12002

2ARFE..ASA4#

 2
11115A - PIN, RING
90253-12002

2ARFE..ASA4#

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

2ARFE..ASA4#

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-24011

2ARFE..ASA4#

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-20004

2ARFE..ASA4#

 3
11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
90430-24246

2ARFE..ASA4#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-31050

2ARFE..ASA4#

O/S 0.05

 8
11122-31050

2ARFE..ASA4#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11126-31030

2ARFE..ASA4#

STD

 8
11127-31030

2ARFE..ASA4#

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11131-36030

2ARFE..ASA4#

STD

 8
11132-36030

2ARFE..ASA4#

O/S 0.03

 8
11135 - SEAT, EXHAUST VALVE
11135-36010

2ARFE..ASA4#

STD

 8
11136-36010

2ARFE..ASA4#

O/S 0.03

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005

2ARFE..ASA4#

L=12.5,OD=8

 10
11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009

2ARFE..ASA4#

 11
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
90430-10024

2ARFE..ASA4#

NO.2:REFER ILLUST.

 1
11159-36011

2ARFE..ASA4#

NO.1:REFER ILLUST.

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
90430-10024

2ARFE..ASA4#

NO.2:REFER ILLUST.

 1
11159-36011

2ARFE..ASA4#

NO.1:REFER ILLUST.

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
90430-10024

2ARFE..ASA4#

NO.2:REFER ILLUST.

 1
11159-36011

2ARFE..ASA4#

NO.1:REFER ILLUST.

 2
11193 - GASKET, SPARK PLUG TUBE
11193-36010

2ARFE..ASA4#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-36010

2ARFE..ASA4#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-36020

2ARFE..ASA4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

2ARFE..ASA4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

2ARFE..ASA4#

 1
12281A - HANGER, ENGINE, NO.1
12281-36020

2ARFE..ASA4#

 1
12282D - HANGER, ENGINE, NO.2
12282-36021

2ARFE..ASA4#

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-36060

2ARFE..ASA4#

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90099-14137

2ARFE..ASA4#

 2
15678A - FILTER, OIL CONTROL VALVE
15678-37010

2ARFE..ASA4#

 1
Common parts
91551-80616
91552-81025
91552-81040
91671-80616
Linked diagrams
1201
1603
8404
8716

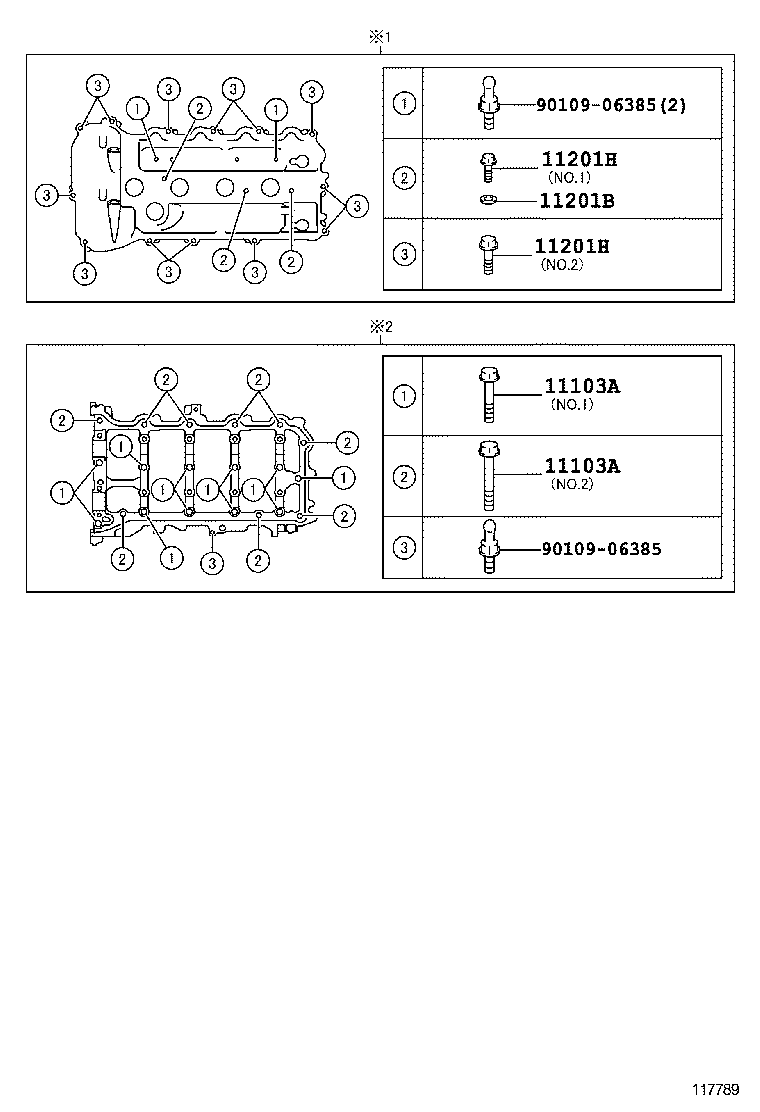

ILLUST NO. 2 OF 2(1212- )2ARFE

Click highlighted areas on diagram

diagram 11103A 11103A 11201B 11201H 11201H 9010906385 9010906385
Part # Description Qty Price
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-08455

2ARFE..ASA4#

NO.1:REFER ILLUST.

 11
91551-G0845

2ARFE..ASA4#

NO.2:REFER ILLUST.

 9
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90105-08455

2ARFE..ASA4#

NO.1:REFER ILLUST.

 11
91551-G0845

2ARFE..ASA4#

NO.2:REFER ILLUST.

 9
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-05008

2ARFE..ASA4#

 3
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-A0625

2ARFE..ASA4#

NO.2:REFER ILLUST.

 13
91551-80635

2ARFE..ASA4#

NO.1:REFER ILLUST.

 3
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-A0625

2ARFE..ASA4#

NO.2:REFER ILLUST.

 13
91551-80635

2ARFE..ASA4#

NO.1:REFER ILLUST.

 3
Common parts
90109-06385
