ASA44L-ANTGKV (2012)
Toyota Rav4
Production
Dec 2012
-
Oct 2015
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

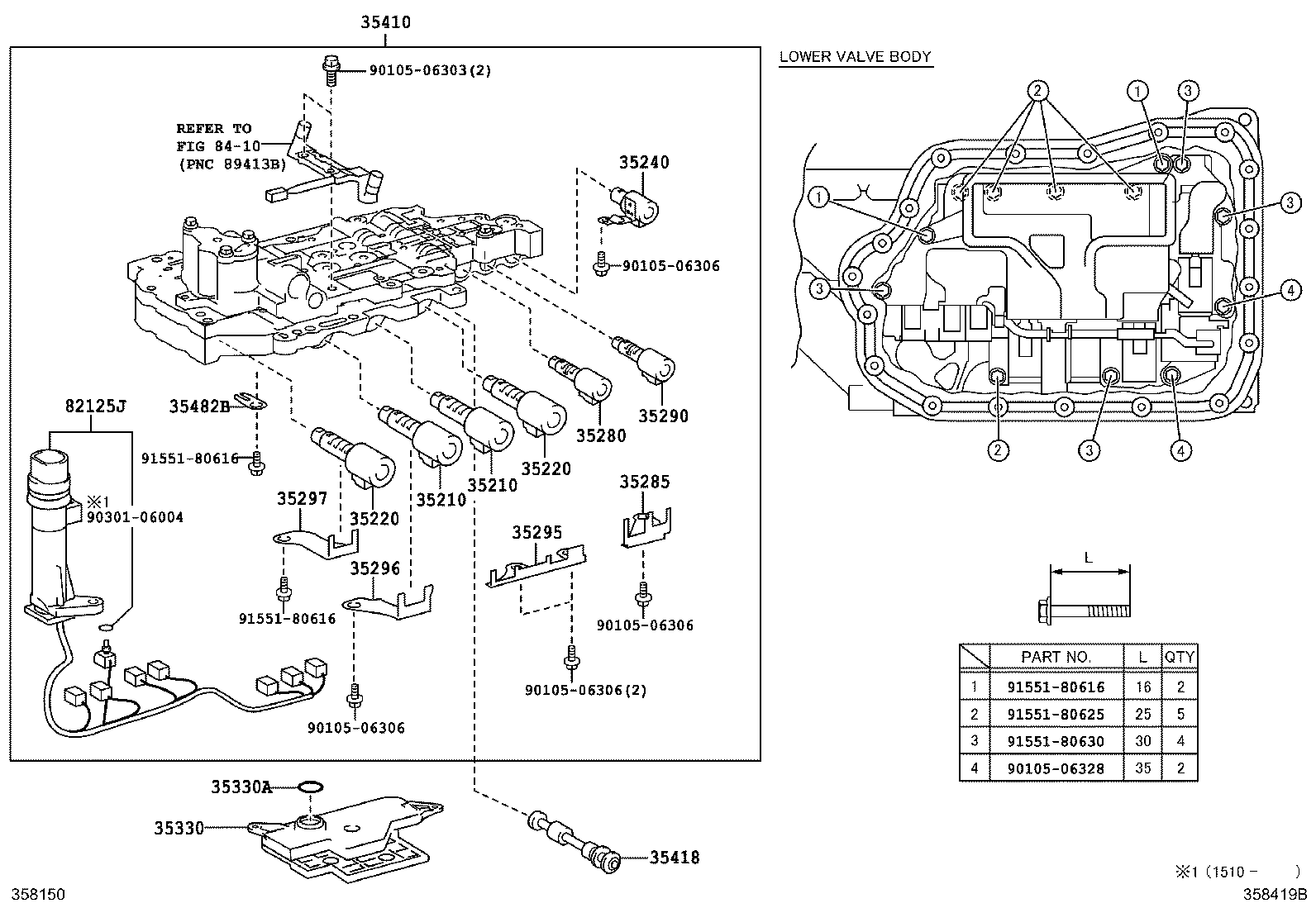

ILLUST NO. 1 OF 2(1212- )ASA4#..6FC
Click highlighted areas on diagram
U760E,U760F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-73010 |
ASA4#..6FC |
2 | ||
| 35210-33030 |
ASA4#..6FC |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-73010 |
ASA4#..6FC |
2 | ||
| 35210-33030 |
ASA4#..6FC |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-73010 |
ASA4#..6FC |
2 | ||
| 35220-48020 |
ASA4#..6FC |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-73010 |
ASA4#..6FC |
2 | ||
| 35220-48020 |
ASA4#..6FC |
2 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-73010 |
ASA4#..6FC |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-33020 |
ASA4#..6FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-73010 |
ASA4#..6FC |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-33040 |
ASA4#..6FC |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-73010 |
ASA4#..6FC |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-73010 |
ASA4#..6FC |
1 | ||
| 35297 - PLATE, SOLENOID LOCK, NO.4 | ||||
| 35297-73010 |
ASA4#..6FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-73010 |
ASA4#..6FC |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-27015 |
ASA4#..6FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-33250 |
ASA4#..6FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-73010 |
ASA4#..6FC |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
ASA4#..6FC |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-73010 |
ASA4#..6FC |
1 | ||
| Common parts | ||||
| 90105-06303 | ||||
| 90105-06306 | ||||
| 90105-06328 | ||||
| 90301-06004 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(1212- )6FC
Click highlighted areas on diagram
U660F,U760E,U760F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-33010 |
ASA4#..6FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-33010 |
ASA4#..6FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-33010 |
ASA4#..6FC |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-73010 |
ASA4#..6FC |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||
