ASA42L-ANTGKV (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ASA4#..6FC

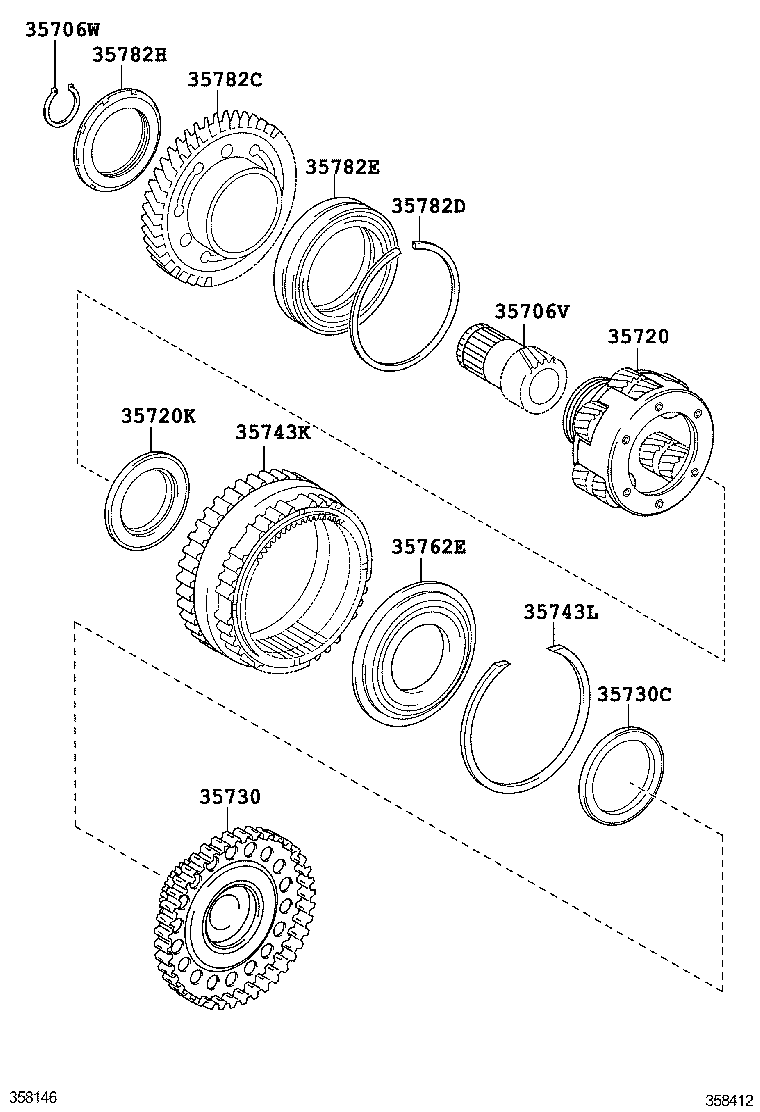

Click highlighted areas on diagram

U760E,U760F

diagram 35706V 35706W 35720 35720K 35730 35730C 35743K 35743L 35762E 35782C 35782D 35782E 35782H
Part # Description Qty Price
35706V - GEAR SUB ASSY, PLANETARY SUN
35706-73010

ASA4#..6FC

 1
35706W - RING, SNAP (FOR PLANETARY SUN GEAR)
90520-34032

ASA4#..6FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-73020

ASA4#..6FC

 1
35720-73010

ASA4#..6FC

 1
35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
90374-62004

ASA4#..6FC

 1
90374-62011

ASA4#..6FC

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-73010

ASA4#..6FC

 1
35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.
90374-61001

ASA4#..6FC

 1
35743K - GEAR, PLANETARY RING
35743-73010

ASA4#..6FC

 1
35743L - RING, SNAP (FOR PLANETARY RING GEAR)
90520-99108

ASA4#..6FC

 1
35762E - FLANGE, PLANETARY RING GEAR
35762-73010

ASA4#..6FC

 1
35782C - GEAR, COUNTER DRIVE
35782-73010

ASA4#..6FC

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-99154

ASA4#..6FC

 1
90520-99110

ASA4#..6FC

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90369-72001

ASA4#..6FC

 1
90369-72002

ASA4#..6FC

 1
35782H - NUT(FOR COUNTER DRIVE GEAR)
90179-60001

ASA4#..6FC

 1
