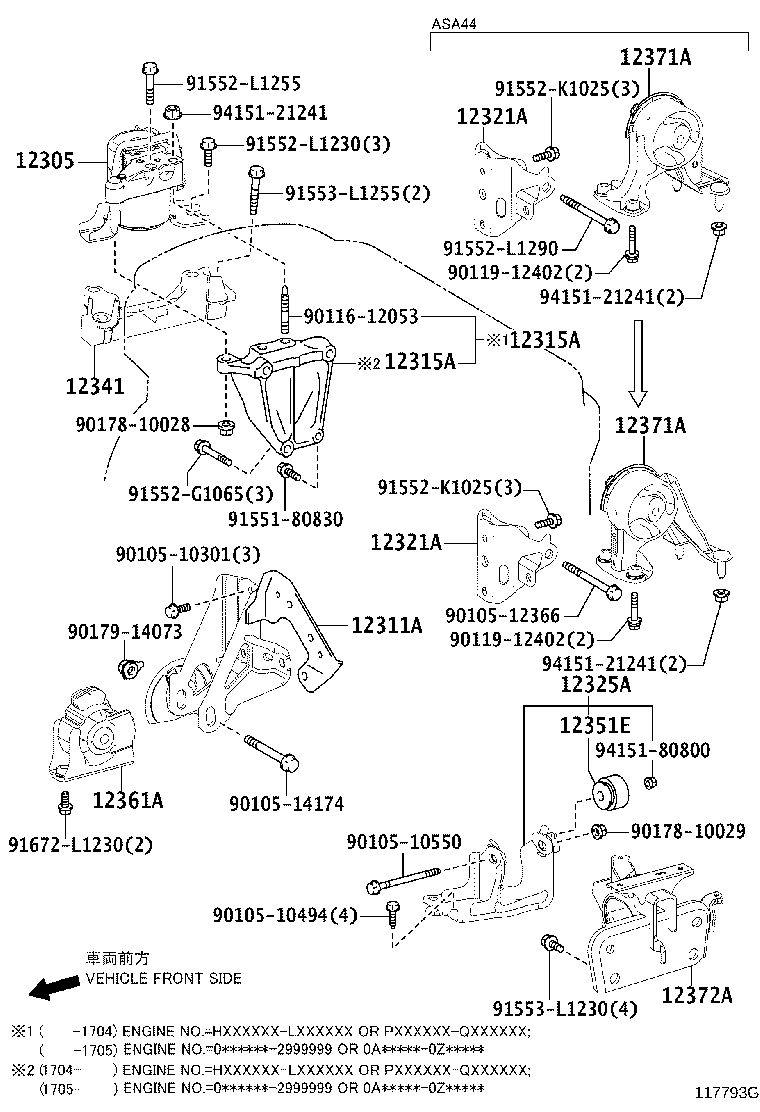

ASA42L-ANTGKV (2012)
Toyota Rav4
(1212- )2ARFE..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-36040 |
2ARFE..ASA4# |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-36090 |
2ARFE..ASA4#..6FC |
1 | ||
| 12311-36091 |
2ARFE..ASA4#..6FC |
1 | ||
| 12311-36080 |
2ARFE..ASA4#..6F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-36010 |
2ARFE..ASA4# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-36010 |
2ARFE..ASA4# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-36070 |
2ARFE..ASA42..6FC |
1 | ||
| 12321-36050 |
2ARFE..ASA42..6F |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-36070 |
2ARFE..ASA42..6FC |
1 | ||
| 12321-36050 |
2ARFE..ASA42..6F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-36040 |
2ARFE..ASA4#..6FC |
1 | ||
| 12304-36041 |
2ARFE..ASA4#..6FC |
1 | ||
| 12304-36030 |
2ARFE..ASA4#..6F |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26011 |
2ARFE..ASA4# |
1 | ||
| 12351E - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
2ARFE..ASA4#..6F |
1 | ||
| 12351-37020 |
2ARFE..ASA4#..6FC |
1 | ||
| 12351-33020 |
2ARFE..ASA4#..6FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-36120 |
2ARFE..ASA4#..6F |
1 | ||
| 12361-36130 |
2ARFE..ASA4#..6FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-36090 |
2ARFE..ASA42..6FC |
1 | ||
| 12371-36070 |
2ARFE..ASA42..6F |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-36090 |
2ARFE..ASA42..6FC |
1 | ||
| 12371-36070 |
2ARFE..ASA42..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-36060 |
2ARFE..ASA4#..6FC |
1 | ||
| 12372-36050 |
2ARFE..ASA4#..6F |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-14073 | ||||
| 91551-80830 | ||||
| 91552-G1065 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91553-L1255 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||

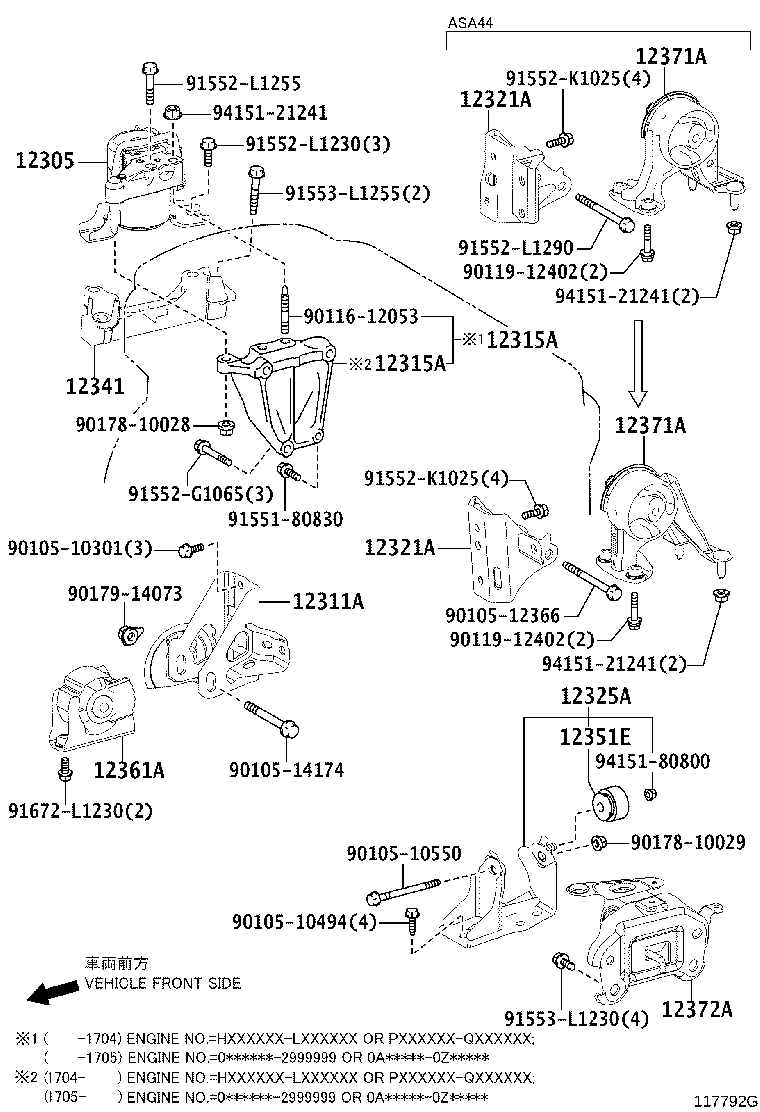

(1212- )2ARFE..6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-36040 |
2ARFE..ASA4# |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-36090 |
2ARFE..ASA4#..6FC |
1 | ||
| 12311-36091 |
2ARFE..ASA4#..6FC |
1 | ||
| 12311-36080 |
2ARFE..ASA4#..6F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-36010 |
2ARFE..ASA4# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-36010 |
2ARFE..ASA4# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-36070 |
2ARFE..ASA42..6FC |
1 | ||
| 12321-36050 |
2ARFE..ASA42..6F |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-36070 |
2ARFE..ASA42..6FC |
1 | ||
| 12321-36050 |
2ARFE..ASA42..6F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12304-36040 |
2ARFE..ASA4#..6FC |
1 | ||
| 12304-36041 |
2ARFE..ASA4#..6FC |
1 | ||
| 12304-36030 |
2ARFE..ASA4#..6F |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26011 |
2ARFE..ASA4# |
1 | ||
| 12351E - DAMPER, ENGINE MOUNTING | ||||
| 12351-23010 |
2ARFE..ASA4#..6F |
1 | ||
| 12351-37020 |
2ARFE..ASA4#..6FC |
1 | ||
| 12351-33020 |
2ARFE..ASA4#..6FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-36120 |
2ARFE..ASA4#..6F |
1 | ||
| 12361-36130 |
2ARFE..ASA4#..6FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-36090 |
2ARFE..ASA42..6FC |
1 | ||
| 12371-36070 |
2ARFE..ASA42..6F |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-36090 |
2ARFE..ASA42..6FC |
1 | ||
| 12371-36070 |
2ARFE..ASA42..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-36060 |
2ARFE..ASA4#..6FC |
1 | ||
| 12372-36050 |
2ARFE..ASA4#..6F |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-14073 | ||||
| 91551-80830 | ||||
| 91552-G1065 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91553-L1255 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
