ASA42L-ANFXK (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ASA42..6F..X ; (1212- )ASA44..LHD..6F..X..GEN ; (1212- )ASA44..6F.

Click highlighted areas on diagram

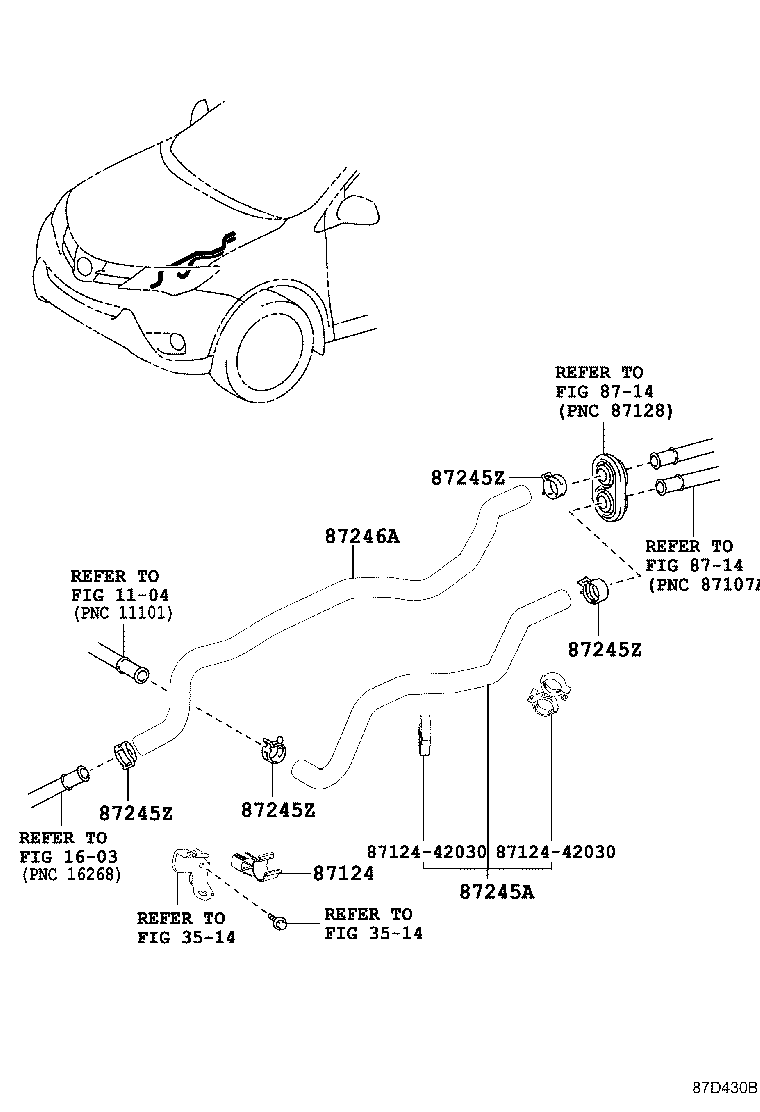

diagram 1104 1603 3514 3514 87124 8712442030 8712442030 8714 8714 87245A 87245Z 87245Z 87245Z 87245Z 87246A
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-42060

ASA4#..6F

 1
87124-42060

ASA4#..6F

 1
87245A - HOSE, HEATER WATER, INLET A
87209-42170

ASA4#

 1
87209-42170

ASA4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-42180

ASA4#..6F

 1
87209-42180

ASA4#..6F

 1
Common parts
87124-42030
Linked diagrams
1104
1603
3514
8714

(1212- )ZSA4#..A..G,X ; (1510- )ZSA44..B ;(1510- )ZSA44..A..M ; (1510-

Click highlighted areas on diagram

diagram 1104 1603 3414 3414 8712442030 8712442030 8714 8714 87245A 87245B 87245Z 87245Z 87245Z 87246A 87248A 9046623005 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87209-42170

ASA4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-42180

ASA4#..6F

 1
Common parts
87124-42030
90466-23005
96136-42501
Linked diagrams
1104
1603
3414
8714
