ASA42L-ANFXK (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )2ARFE

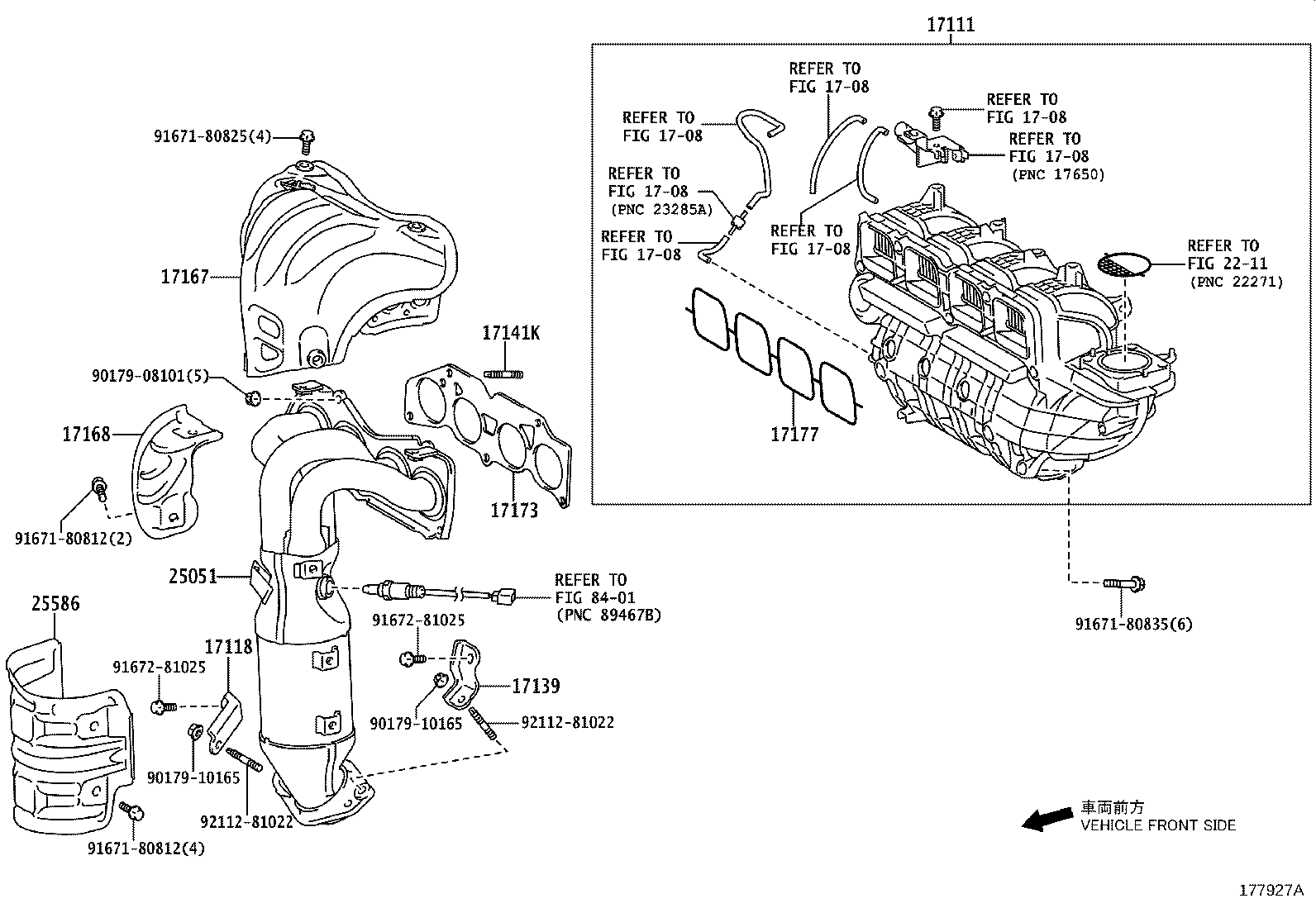

Click highlighted areas on diagram

W/O(TCV)

diagram 1708 1708 1708 1708 1708 1708 1708 17111 17118 17139 17141K 17167 17168 17173 17177 2211 25051 25586 8401 9017908101 9017910165 9017910165 9167180812 9167180812 9167180825 9167180835 9167281025 9167281025 9211281022 9211281022
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-36070

2ARFE..ASA4#

 1
17118 - STAY, MANIFOLD
17118-36010

2ARFE..ASA4#

 1
17139 - STAY, MANIFOLD, NO.2
17139-36010

2ARFE..ASA4#

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08037

2ARFE..ASA4#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-36011

2ARFE..ASA4#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-36010

2ARFE..ASA4#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-36020

2ARFE..ASA4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-36020

2ARFE..ASA4#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-36160

2ARFE..ASA4#

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-36010

2ARFE..ASA4#

 1
Common parts
90179-08101
90179-10165
91671-80812
91671-80825
91671-80835
91672-81025
92112-81022
Linked diagrams
1708
2211
8401
