ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )ZSA42..ARL,SA ; (1510- )ASA44..LHD..G,M ; (1510- )ALA49,ASA44..RHD

Click highlighted areas on diagram

LED HEADLAMP

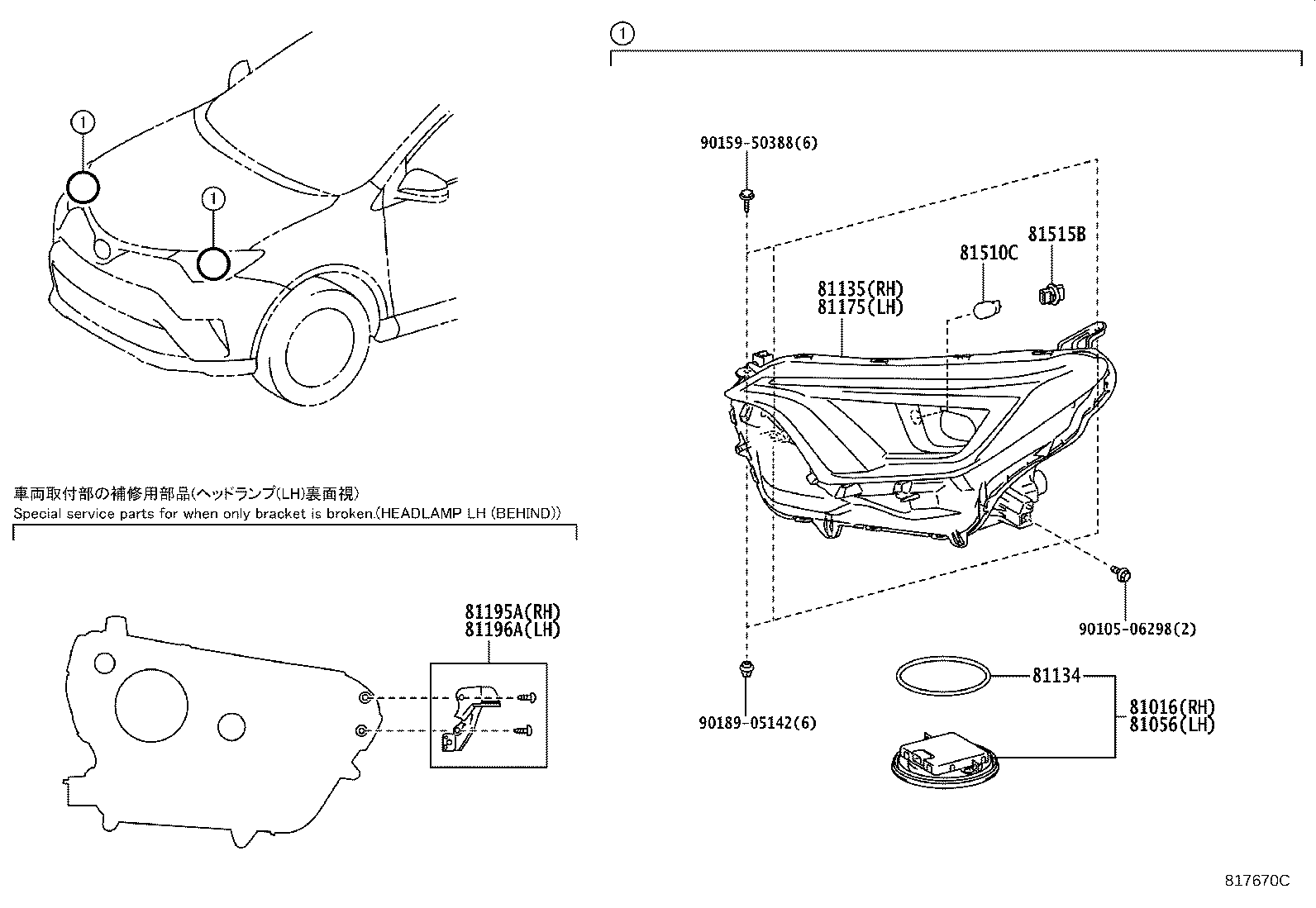

diagram 81016 81056 81134 81135 81175 81195A 81196A 81510C 81515B 9010506298 9015950388 9018905142
Part # Description Qty Price
81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
81016-42010

AVA4#;ALA49..RHD..6FC;ALA49..RHD..6F..X;ALA49..6FC..G..GEN

 1
81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
81016-42010

AVA4#;ALA49..RHD..6FC;ALA49..RHD..6F..X;ALA49..6FC..G..GEN

 1
81134 - GASKET, HEADLAMP
81134-42010

AVA4#;ALA49..RHD..6FC;ALA49..RHD..6F..X;ALA49..6FC..G..GEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81145-42690

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-42690

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-42040

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-42040

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ALA49..6F..X;ALA49,AVA4#..6FC,A

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
Common parts
90105-06298
90159-50388
90189-05142
