ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD

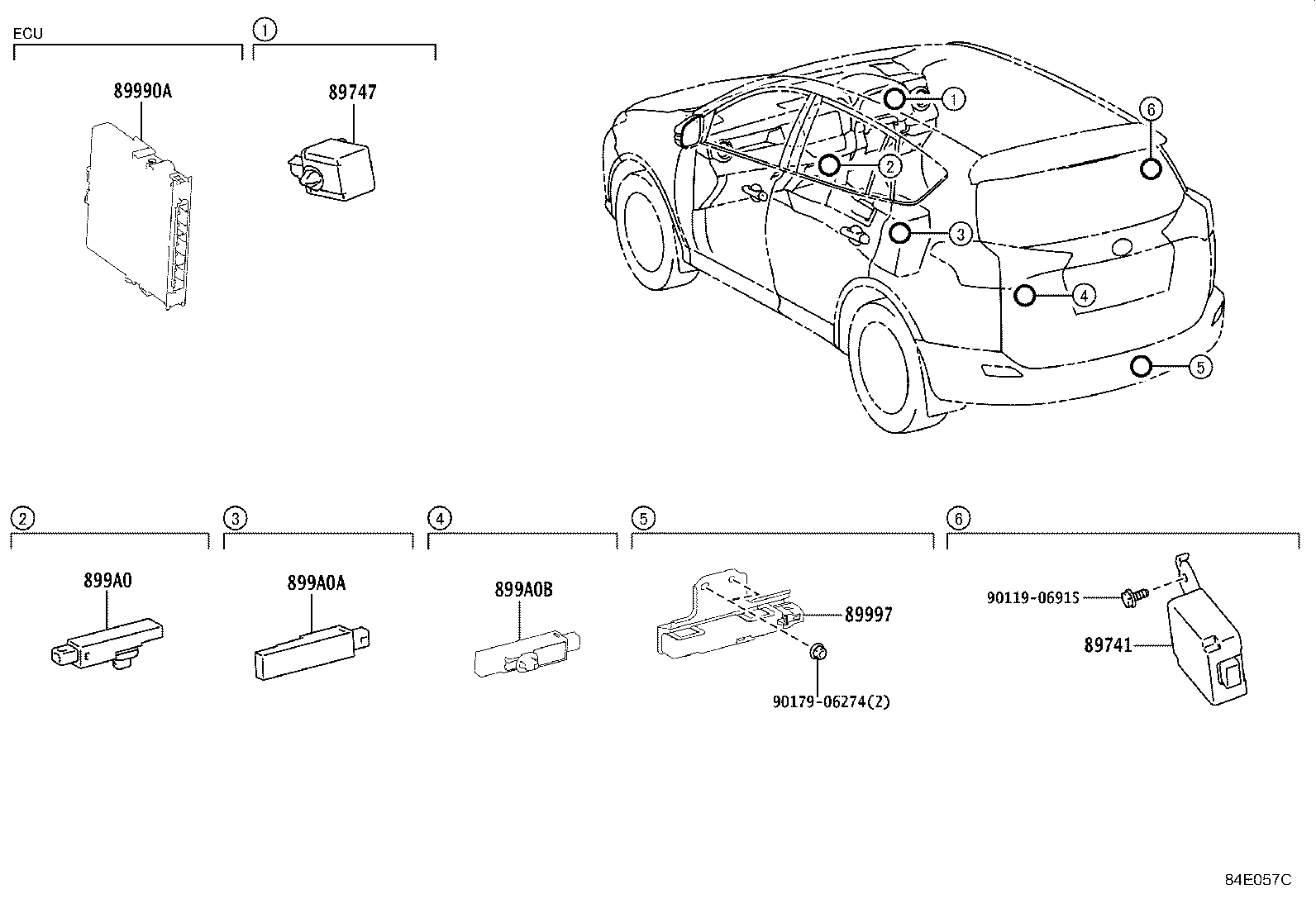

Click highlighted areas on diagram

diagram 89741 89747 89990A 89997 899A0 899A0A 899A0B 9011906915 9017906274
Part # Description Qty Price
89990A - COMPUTER ASSY, SMART KEY
89990-42111

ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC)

 1
89990-42110

ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-42010

ALA49..6FC..M..DCR

KEY PLATE-MASTER 2 FOR SMART,LUGGAGE

 1
89997-42010

ALA49..6FC..G..DCR;ALA49,AVA4#..(G,M)..(DCRL,HTWC)

LUGGAGE

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60010

ALA49..6FC..G..DCR;ALA49,AVA4#..(G,M)..(DCRL,HTWC)

 1
899A0-60010

ALA49..6FC..M..DCR

KEY PLATE-MASTER 2 FOR SMART

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-47010

ALA49..6FC..M..DCR

KEY PLATE-MASTER 2 FOR SMART

 1
899A0-47010

ALA49..6FC..G..DCR;ALA49,AVA4#..(G,M)..(DCRL,HTWC)

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-47010

ALA49..6FC..M..DCR

KEY PLATE-MASTER 2 FOR SMART

 1
899A0-47010

ALA49..6FC..G..DCR;ALA49,AVA4#..(G,M)..(DCRL,HTWC)

 1
Common parts
90119-06915
90179-06274
