ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD

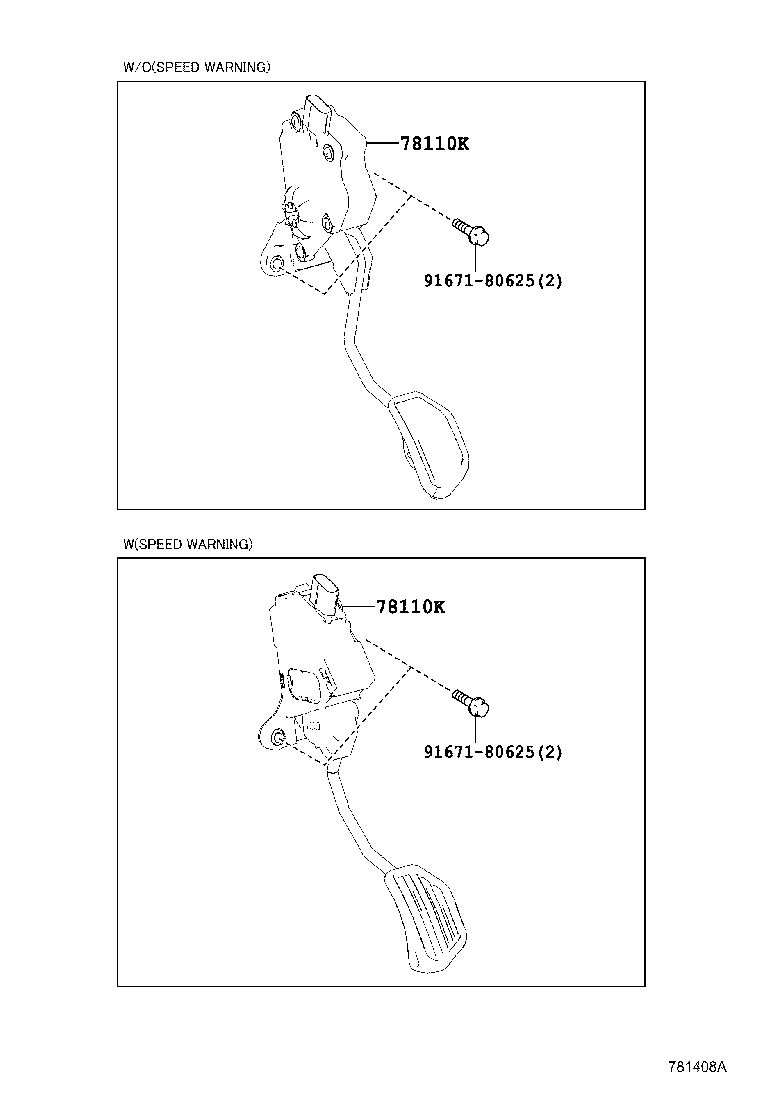

Click highlighted areas on diagram

diagram 78110K 78110K 9167180625 9167180625
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-42050

ALA49..RHD..6F;ASA44,ZSA4#..RHD

 1
78110-42051

ALA49..RHD..6F..X

 1
78110-0W050

ALA49..RHD..6FC

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-42050

ALA49..RHD..6F;ASA44,ZSA4#..RHD

 1
78110-42051

ALA49..RHD..6F..X

 1
78110-0W050

ALA49..RHD..6FC

 1
Common parts
91671-80625
