ALA49R-ANTMXQ (2015)
Toyota Rav4

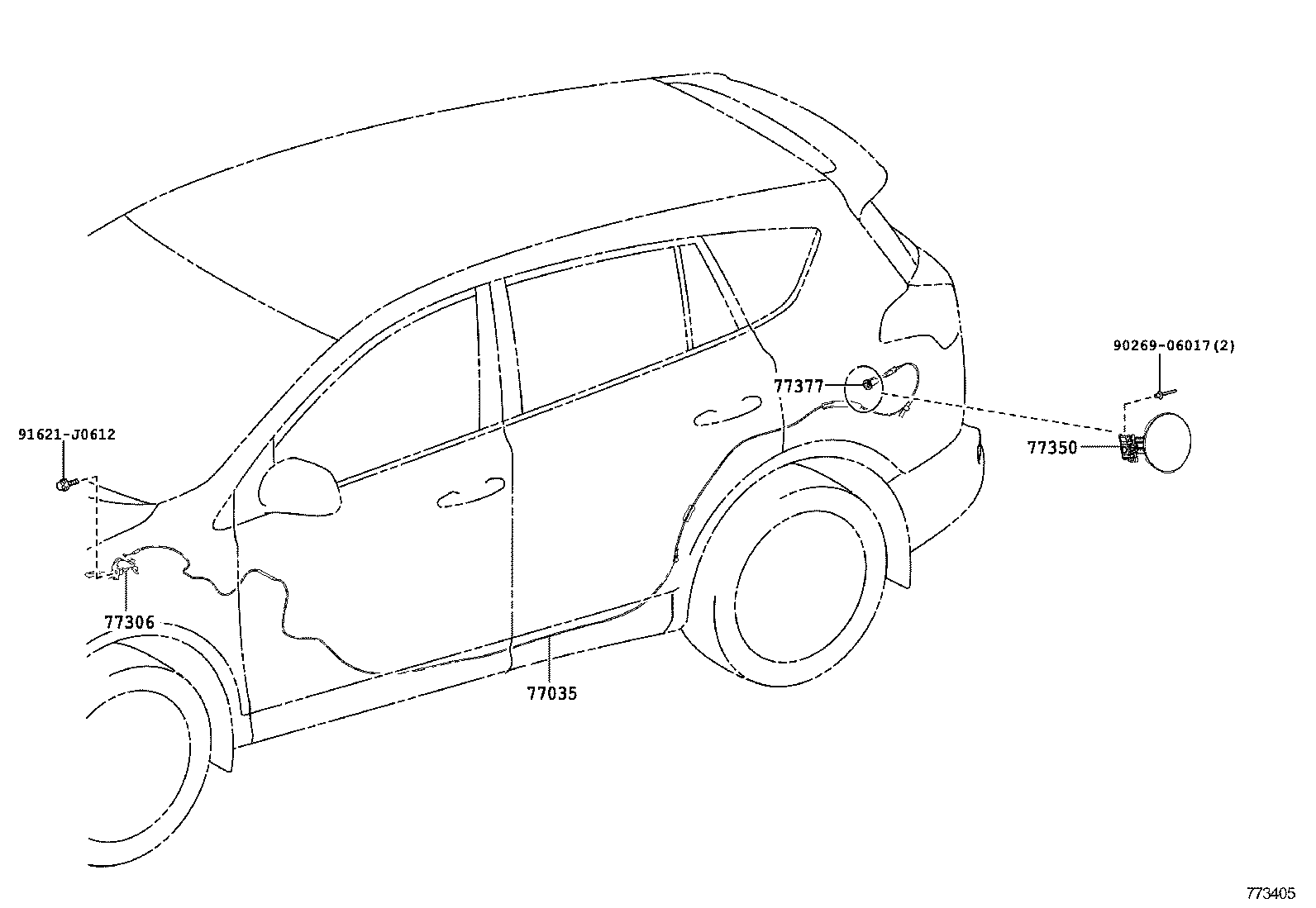

ILLUST NO. 3 OF 3(1212- )RHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-42180 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-32010 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-42090 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 91621-J0612 | ||||
ILLUST NO. 2 OF 3(1510- )ALA49
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-42230 |
ALA49 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-42160 |
ALA49 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 77259-42100 |
ALA49 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-42061 |
ALA49 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77286-12120 |
ALA49 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-52070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77298-68010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-42120 |
ALA49 |
1 | ||
| Common parts | ||||
| 96132-51300 | ||||
| 96135-51300 | ||||

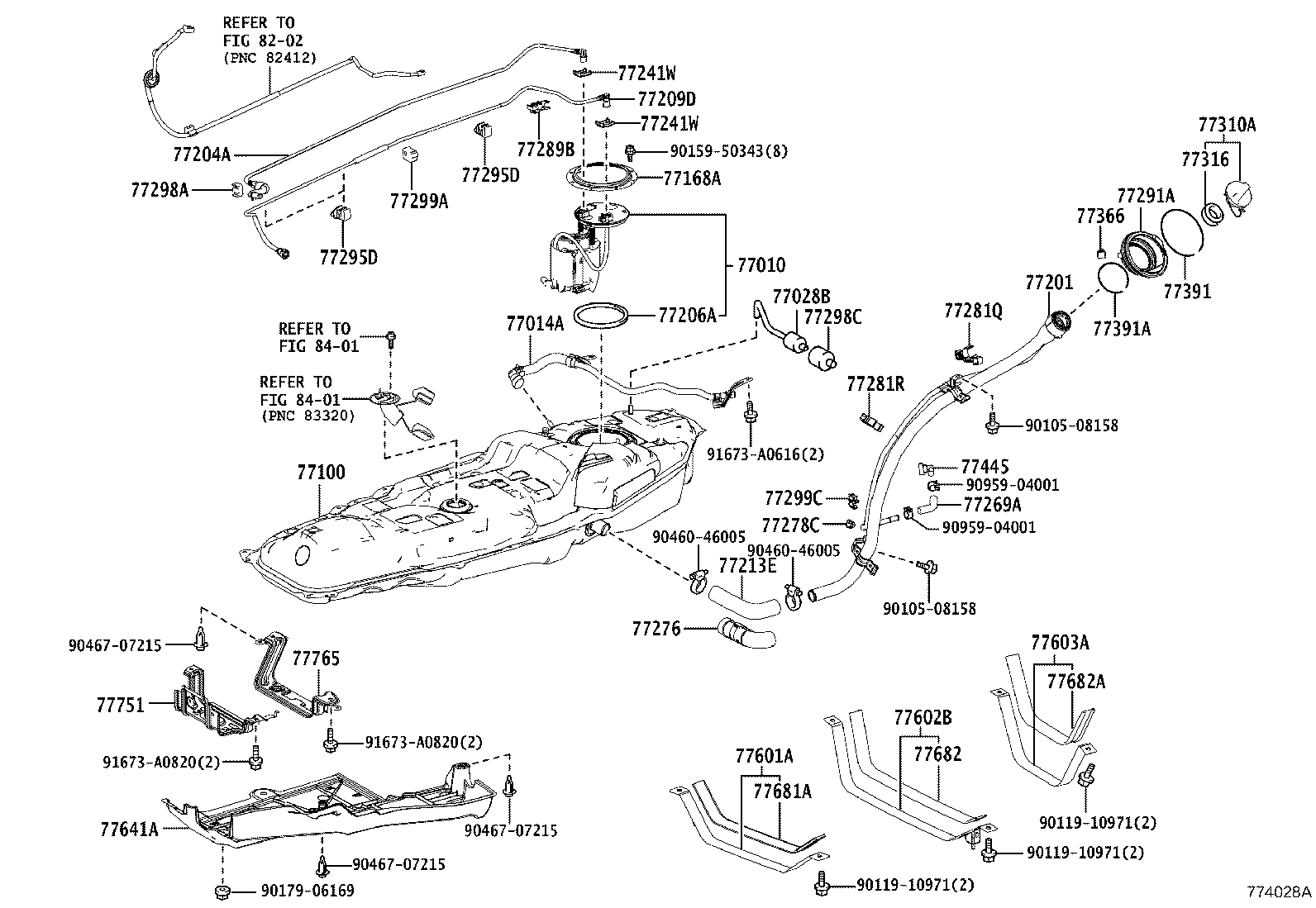

ILLUST NO. 1 OF 3(1510- )DCR
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-42040 |
ALA49 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 | ||||
| 77028-42010 |
ALA49 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42231 |
ALA49 |
1 | ||
| 77001-42380 |
ALA49 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-42212 |
ALA49 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-42080 |
ALA49 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-52010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42180 |
ALA49 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-42100 |
ALA49 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ALA49 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ALA49 |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-42020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77281Q - CLAMP, FUEL FILLER, NO.1 | ||||
| 77281-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-42040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-42050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA49..6FC;ALA49..6F..X |
3 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA49..6FC;ALA49..6F..X |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-42030 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-42010 |
ALA49 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-42010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77299C - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 89639-28130 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-20020 |
ALA49 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77445 - CONNECTOR, FUEL TANK VENT, NO.2 | ||||
| 77445-42050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-42080 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-42060 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 77641-42040 |
ALA49..X..DCR;ALA49,AVA4#..(6FC,A)..(G,M)..(GEN,SA) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-21010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77681-42010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90460-46005 | ||||
| 90467-07215 | ||||
| 90959-04001 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(1510- )ALA49..ARL
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-42040 |
ALA49 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 | ||||
| 77028-42010 |
ALA49 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42231 |
ALA49 |
1 | ||
| 77001-42380 |
ALA49 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-42212 |
ALA49 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-42080 |
ALA49 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-52010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42180 |
ALA49 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-42100 |
ALA49 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ALA49 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ALA49 |
2 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-42020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77281Q - CLAMP, FUEL FILLER, NO.1 | ||||
| 77281-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-42040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-42050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA49..6FC;ALA49..6F..X |
3 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA49..6FC;ALA49..6F..X |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-42030 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-42010 |
ALA49 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-42010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77299C - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 89639-28130 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-20020 |
ALA49 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77445 - CONNECTOR, FUEL TANK VENT, NO.2 | ||||
| 77445-42050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-42080 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-42060 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 77641-42040 |
ALA49..X..DCR;ALA49,AVA4#..(6FC,A)..(G,M)..(GEN,SA) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-21010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77681-42010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-78020 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-78020 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90179-06169 | ||||
| 90460-46005 | ||||
| 90467-07215 | ||||
| 90959-04001 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
