ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )RHD

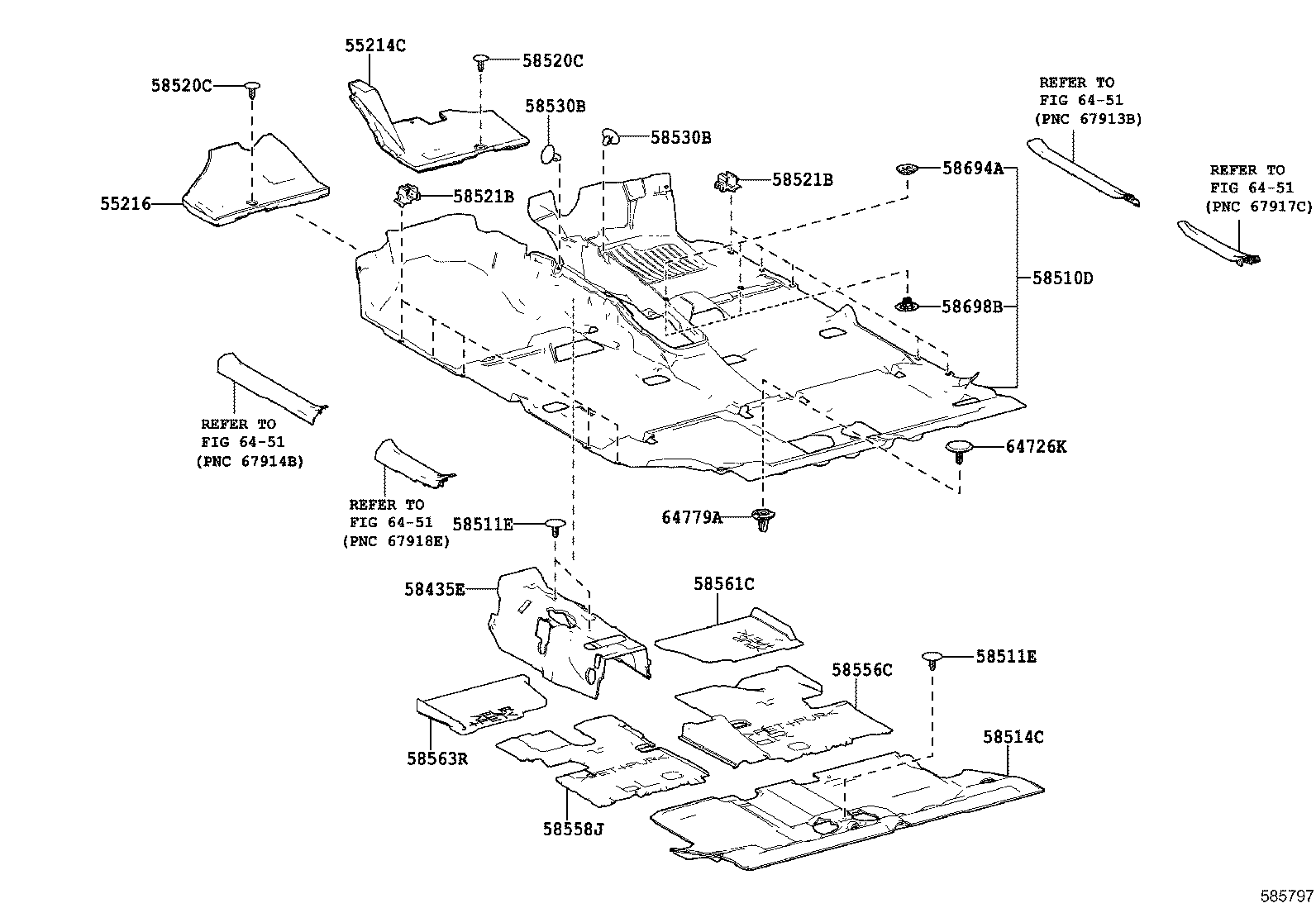

Click highlighted areas on diagram

diagram 55214C 55216 58435E 58510D 58511E 58511E 58514C 58520C 58520C 58521B 58521B 58530B 58530B 58556C 58558J 58561C 58563R 58694A 58698B 6451 6451 6451 6451 64726K 64779A
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-42080

ALA49..RHD..6F..X

 1
55214-42070

ALA49..RHD..6FC

 1
55216 - PAD, DASH PANEL INSULATOR, NO.4
55216-42110

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
58435E - SILENCER, FRONT FLOOR, CENTER
58435-42030

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-42B00C0

ALA49..RHD..6FC..X

BLACK,TRIM2#,4#

 1
58510-42B00C0

ALA49..RHD..6FC..M

BLACK,TRIM1#,2#,4#

 1
58510-42B10C0

ALA49..RHD..6F..X

BLACK,TRIM2#,4#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-05164C7

ALA49..6FC;ALA49..6F..X

BLACK

 3
90467-05164C0

ALA49,ASA4#,ZSA4#

BLACK

 3
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-05164C7

ALA49..6FC;ALA49..6F..X

BLACK

 3
90467-05164C0

ALA49,ASA4#,ZSA4#

BLACK

 3
58514C - MAT, FROOR, REAR
58514-42010

ALA49..6FC;ALA49..6F..X

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
63399-26050B2

ALA49..6F..X;ALA49,AVA4#..6FC,A

GRAY

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
63399-26050B2

ALA49..6F..X;ALA49,AVA4#..6FC,A

GRAY

 2
58521B - HOOK, FLOOR CARPET
58521-12150

ALA49..6FC;ALA49..6F..X

 10
58521B - HOOK, FLOOR CARPET
58521-12150

ALA49..6FC;ALA49..6F..X

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09050

ALA49..6FC;ALA49..6F..X

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09050

ALA49..6FC;ALA49..6F..X

 2
58556C - SILENCER, REAR FLOOR
58556-42010

ALA49..6FC;ALA49..6F..X

 1
58558J - SILENCER, REAR FLOOR, NO.3
58558-42010

ALA49..6FC;ALA49..6F..X

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-42061

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
58563R - SILENCER, FRONT FLOOR, NO.3
58563-42071

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
58698B - PLATE, MAT SET, LOWER
58698-78010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
64726K - CLIP, LUGGAGE TRIM, REAR
64726-26010C1

ALA49..6F..X;ALA49,AVA4#..6FC,A

BLACK

 1
64779A - STOPPER, SPARE WHEEL COVER
64779-26010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
