ALA49R-ANTMXQ (2015)
Toyota Rav4

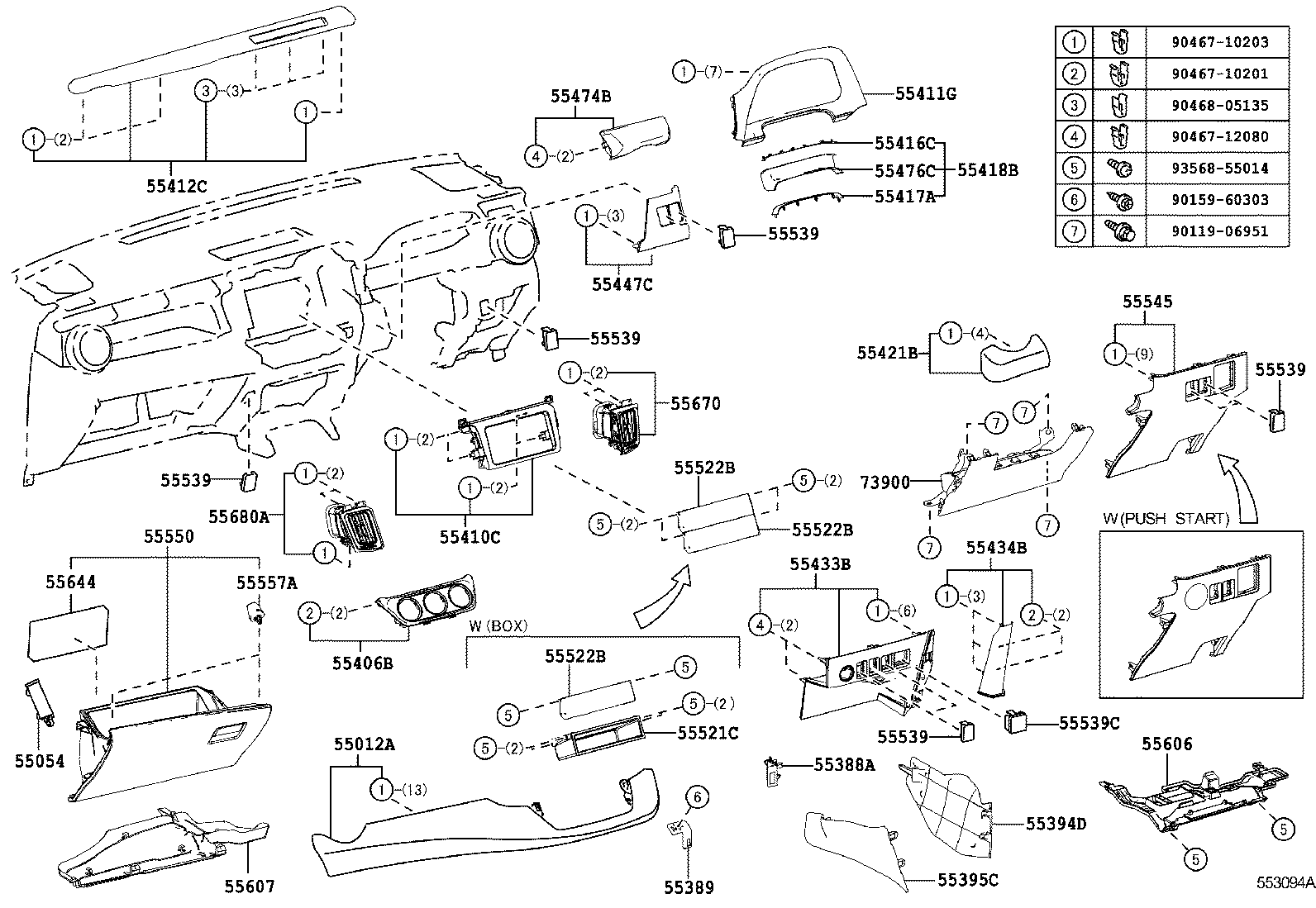

ILLUST NO. 2 OF 2(1212- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-42040C0 |
ALA49..RHD..X BLACK,TRIM2# |
1 | ||
| 55012-42140A3 |
ALA49..RHD..6FC..(G,M) GLT BEIGE/BROWN/GLT BEIGE,TRIM4# |
1 | ||
| 55012-42140C3 |
ALA49..RHD..6FC..(G,M) BLACK/ECRU/BLACK,TRIM2# |
1 | ||
| 55012-42040A2 |
ALA49..RHD..X GALLANT BEIGE,TRIM4# |
1 | ||
| 55012-42140B2 |
ALA49..RHD..6FC..(G,M) GRAY/ECRU/GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-33060 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 55388A - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42020 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-42020 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-42040C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55394-42040C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-42021C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55395-42021C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-42160 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 55410-42160 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55410-42160 |
ALA49..X..DCRE;ALA49..(M,X)..DCRL AUDIO-13MM CD USB BT B-DA GEN |
1 | ||
| 55410-42160 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55410-42160 |
ALA49..(G,M)..DCRL AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55410-42160 |
ALA49..X..ARL AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-42110B1 |
ALA49..RHD..6FC..M SILVER,TRIM1#,2#,4# |
1 | ||
| 55411-42110B1 |
ALA49..RHD..X SILVER,TRIM2#,4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-42110B1 |
ALA49..RHD..X SILVER,TRIM2#,4# |
1 | ||
| 55412-42110B1 |
ALA49..RHD..6FC..M SILVER,TRIM1#,2#,4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-42030 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-42020 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-42150C4 |
ALA49..RHD..6FC..(G,M) BLACK/ECRU/BLACK,TRIM2# |
1 | ||
| 55421-42140A2 |
ALA49..RHD..X GALLANT BEIGE,TRIM4# |
1 | ||
| 55421-42150B3 |
ALA49..RHD..6FC..(G,M) GRAY/ECRU/GRAY,TRIM1# |
1 | ||
| 55421-42150A4 |
ALA49..RHD..6FC..(G,M) GLT BEIGE/BROWN/GLT BEIGE,TRIM4# |
1 | ||
| 55421-42140C0 |
ALA49..RHD..X BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-42051C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55433-42051C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-42050B1 |
ALA49..RHD..6FC..M SILVER,TRIM1#,2#,4# |
1 | ||
| 55434-42050B1 |
ALA49..RHD..X SILVER,TRIM2#,4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-42020C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55447-42020C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-42070B1 |
ALA49..RHD..X SILVER,TRIM2#,4# |
1 | ||
| 55474-42070B1 |
ALA49..RHD..6FC..M SILVER,TRIM1#,2#,4# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-42040 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-44020 |
ALA49..X..ARL AUSTRALIA SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-44020 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 55521-44020 |
ALA49..X..DCRL NEW ZEALAND SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-44020 |
ALA49..(G,M)..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-44020 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-44020 |
ALA49..X..ARL AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-44020 |
ALA49..(G,M)..DCRL AUSTRALIA SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-44020 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-44020 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-44020 |
ALA49..(G,M)..DCRL AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-44020 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-44020 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..X..ARL AUSTRALIA SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..X..ARL AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 55521-20150 |
ALA49..X..DCRL NEW ZEALAND SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUSTRALIA SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC |
2 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC |
2 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..X..ARL AUSTRALIA SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..X..ARL AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 55521-20150 |
ALA49..X..DCRL NEW ZEALAND SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUSTRALIA SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC |
2 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC |
2 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-20150 |
ALA49..X..ARL AUSTRALIA SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..X..ARL AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE |
1 | ||
| 55521-20150 |
ALA49..X..DCRL NEW ZEALAND SPEC&AUDIO-4SPEAKER CD BT GEN |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUSTRALIA SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER BASE-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC |
2 | ||
| 55521-20150 |
ALA49..DCRL NEW ZEALAND SPEC&AUDIO-13MM JBL AVN GEN DAB |
1 | ||
| 55521-20150 |
ALA49..DCRL;ALA49..X..DCRE AUSTRALIA SPEC |
2 | ||
| 55521-20150 |
ALA49..(G,M)..DCRL NEW ZEALAND SPEC&AUDIO-6SPEAKER DLX-DA AUST |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-42060C0 |
ALA49..M..DCRL BLACK,TRIM1#,2#,4# |
1 | ||
| 55545-42070C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-42140C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55550-42140C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-42060 |
ALA49,ASA44,ZSA4#..RHD |
1 | ||
| 55606-42090 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-42070 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55607-42040 |
ALA49,ASA44,ZSA4#..RHD |
1 | ||
| 55644 - PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||||
| 55644-42050 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-42180 |
ALA49..RHD..6FC..(G,M) |
1 | ||
| 55670-42170 |
ALA49..RHD..X |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-42110 |
ALA49..RHD..6FC..(G,M) |
1 | ||
| 55680-42100 |
ALA49..RHD..X |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-42041C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 73900-42041C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||

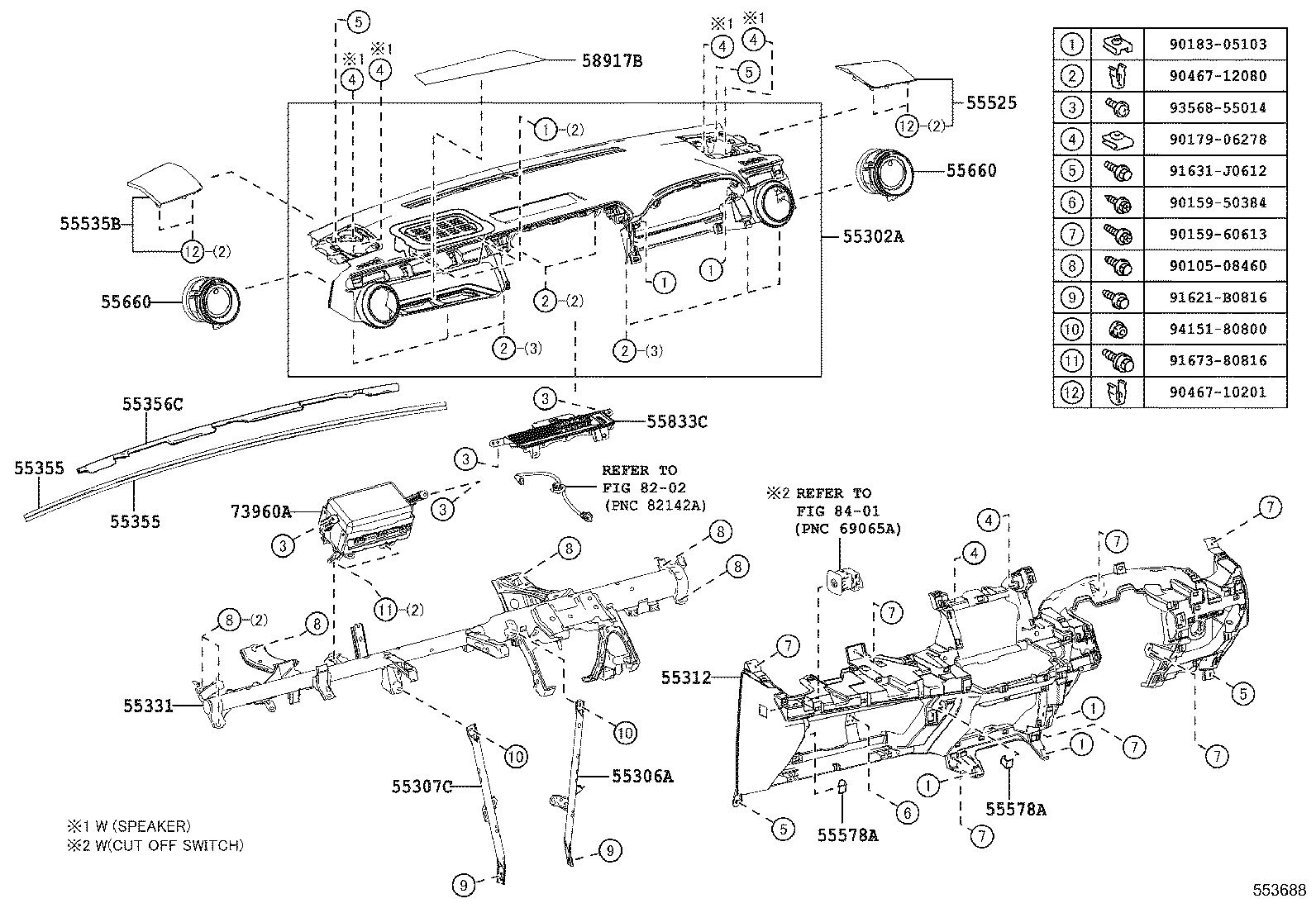

ILLUST NO. 1 OF 2(1510- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-42907C1 |
ALA49,ASA44,ZSA4#..RHD..M BLACK/SILVER,TRIM1#,2#,4# |
1 | ||
| 55302-42907C1 |
ALA49,ASA44,ZSA4#..RHD..X BLACK/SILVER,TRIM2#,4# |
1 | ||
| 55302-42907C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55302-42907C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-42140 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-42080 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-42070C0 |
ALA49,ASA44,ZSA4#..RHD..M..(ARL,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 55312-42070C0 |
ALA49,ASA44,ZSA4#..RHD..X..(ARL,GEN) BLACK,TRIM2#,4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-42310 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-42030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-42060 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-42010C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55525-42010C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55510-42010C0 |
ALA49..RHD..X AUDIO-4SPEAKER CD BT GEN,BLACK,TRIM2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55535-42010C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 55530-42010C0 |
ALA49..RHD..X AUDIO-4SPEAKER CD BT GEN,BLACK,TRIM2#,4# |
1 | ||
| 55535-42010C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 55578A - SILENCER, GLOVE COMPARTMENT DOOR | ||||
| 55578-52040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42040C1 |
ALA49,ASA4#,ZSA4#..X BLACK/SILVER,TRIM2#,4# |
2 | ||
| 55660-42040C3 |
ALA49,AVA4#..M BLACK/SILVER,TRIM1#,2#,4# |
2 | ||
| 55660-42040C1 |
ALA49,ASA4#,AVA4#,ZSA4#..M BLACK/SILVER,TRIM1#,2#,4# |
2 | ||
| 55660-42040C3 |
ALA49..X BLACK/SILVER,TRIM2#,4# |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-42040C1 |
ALA49,ASA4#,ZSA4#..X BLACK/SILVER,TRIM2#,4# |
2 | ||
| 55660-42040C3 |
ALA49,AVA4#..M BLACK/SILVER,TRIM1#,2#,4# |
2 | ||
| 55660-42040C1 |
ALA49,ASA4#,AVA4#,ZSA4#..M BLACK/SILVER,TRIM1#,2#,4# |
2 | ||
| 55660-42040C3 |
ALA49..X BLACK/SILVER,TRIM2#,4# |
2 | ||
| 55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-42020C0 |
ALA49..RHD..X BLACK,TRIM2#,4# |
1 | ||
| 55833-42020C0 |
ALA49..RHD..6FC..M BLACK,TRIM1#,2#,4# |
1 | ||
| 58917B - MAT, BOX BOTTOM | ||||
| 58917-42020 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-42061 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50384 | ||||
| 90159-60613 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
