ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD

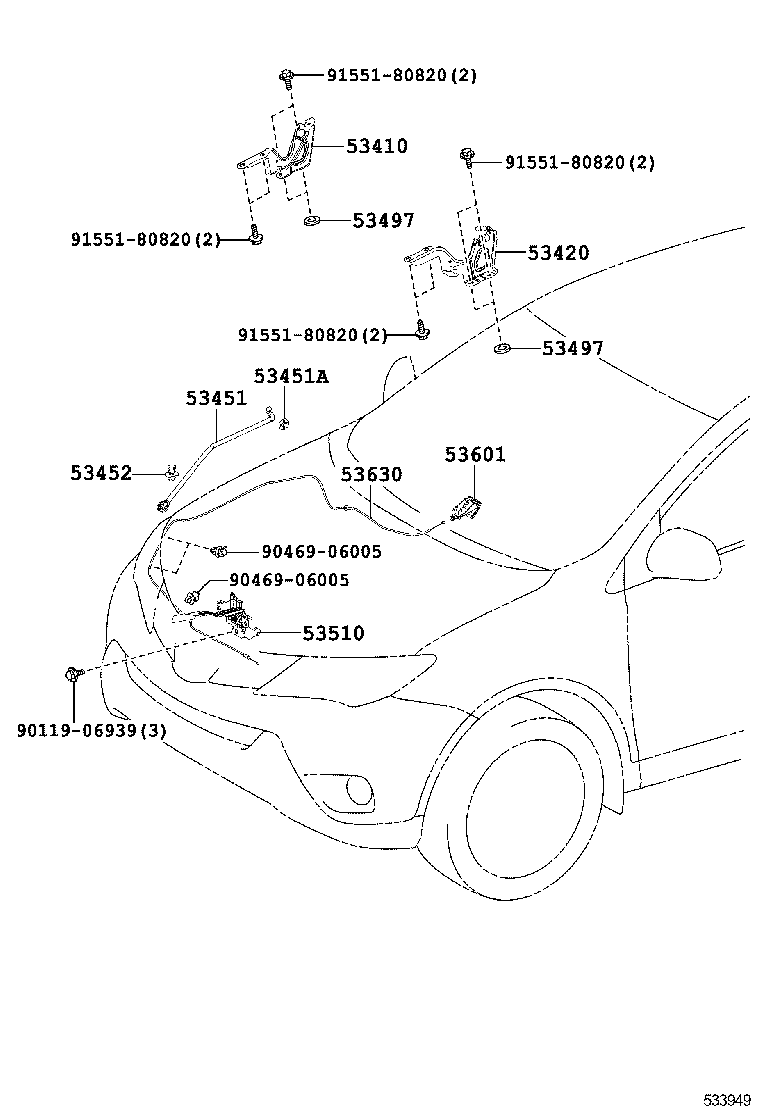

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53510 53601 53630 9011906939 9046906005 9046906005 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-42120

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53420 - HINGE ASSY, HOOD, LH
53420-42120

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53451 - ROD, HOOD SUPPORT
53440-42060

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
53454-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53452 - HOLDER, HOOD STAY
53452-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ALA49..6F..X;ALA49,AVA4#..6FC,A

T=2.0

 2
53497-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

T=0.5

 2
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ALA49..6F..X;ALA49,AVA4#..6FC,A

T=2.0

 2
53497-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

T=0.5

 2
53510 - LOCK ASSY, HOOD
53510-42100

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

ALA49,ASA4#,AVA4#,ZSA4#..M

BLACK,TRIM1#,2#,4#

 1
53601-52010C0

ALA49,ASA4#,ZSA4#..X

BLACK,TRIM2#,4#

 1
53601-52010C1

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
53601-52010C1

ALA49..X

BLACK,TRIM2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-42120

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
Common parts
90119-06939
90469-06005
91551-80820
