ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1812)RHD

Click highlighted areas on diagram

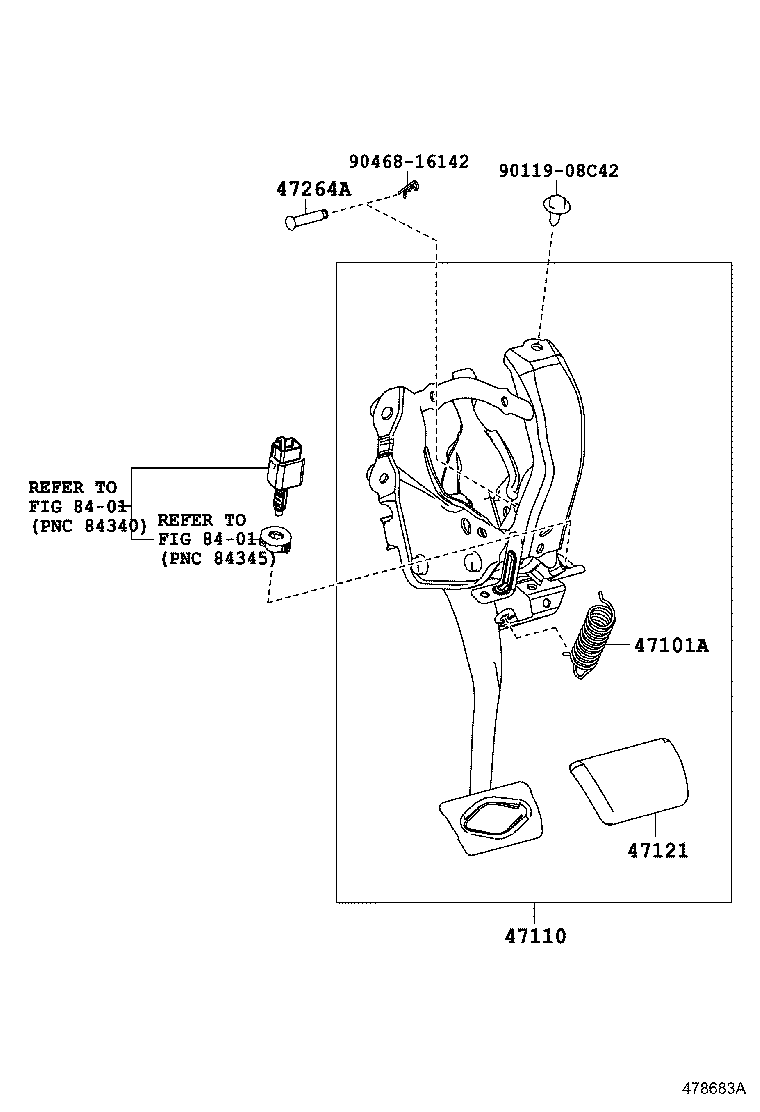

diagram 47101A 47110 47121 47264A 8401 8401 9011908C42 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-78010

ALA49..RHD..6FC;ALA49..RHD..6F..X

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-42220

ALA49..RHD..6F..X

 1
47110-42210

ALA49..RHD..6FC

 1
47121 - PAD, BRAKE PEDAL
47121-42020

ALA49,AVA4#..6FC,A

 1
31321-42010

ALA49..6F..X

 1
47121-42010

ALA49,ASA4#,AVA4#,ZSA4#..ATM,CVT

 1
47264A - PIN(FOR PUSH ROD)
90249-08256

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
Common parts
90119-08C42
90468-16142
Linked diagrams
8401
