ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD

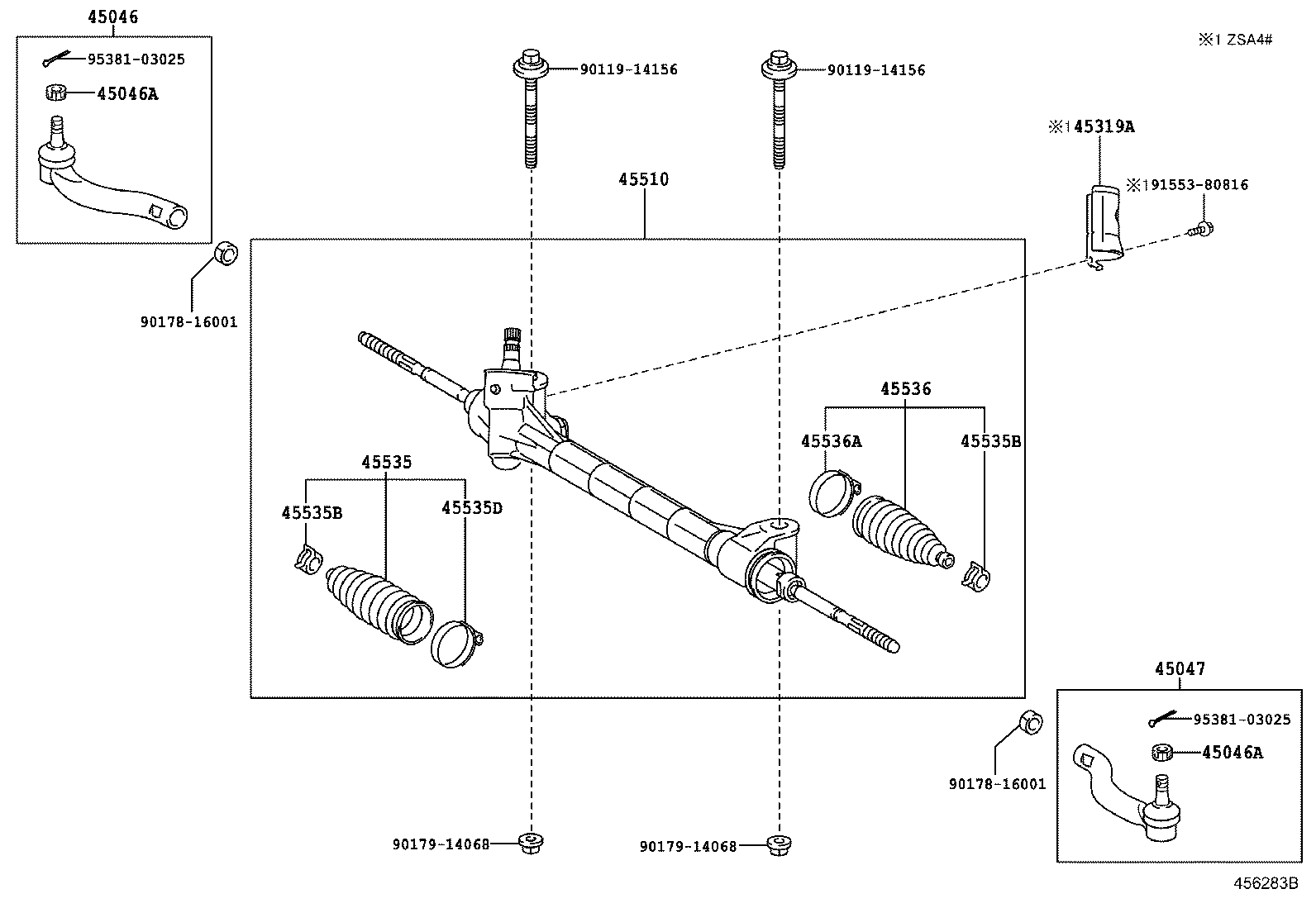

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45319A 45510 45535 45535B 45535B 45535D 45536 45536A 9011914156 9011914156 9017816001 9017816001 9017914068 9017914068 9155380816 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-49195

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49135

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45510 - GEAR ASSY, STEERING
45510-42120

ALA49..ARL;ASA44..G..ARL;ALA49,ASA44..RHD..(M,X)..(DCR,EFI)

 1
45510-42130

ALA49,ASA44..M..SA;ALA49,ASA44..6FC..(G,M)..ARL

TIRE & DISKWHEEL-235/55R18H A/S A-TIRE & ALMINUM SPORT

 1
45510-42130

ALA49..M..DCRE;ALA49,ASA44..6FC..(G,M)..ARL

TIRE & DISKWHEEL-235/55R18H A/S S-TIRE & ALMINUM SPORT

 1
45510-42131

ALA49..M..SA;ALA49..(G,M)..ARL

TIRE & DISKWHEEL-235/55R18H A/S A-TIRE & ALMINUM SPORT

 1
45510-42121

ALA49..ARL;ALA49..(M,X)..SA

 1
45510-42131

ALA49..(G,M)..ARL

TIRE & DISKWHEEL-235/55R18H A/S S-TIRE & ALMINUM SPORT

 1
45535 - BOOT, STEERING RACK, NO.1
45535-49045

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45536 - BOOT, STEERING RACK, NO.2
45535-49045

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
Common parts
90119-14156
90178-16001
90179-14068
91553-80816
95381-03025
