ALA49R-ANTMXQ (2015)
Toyota Rav4
(1212- )RHD

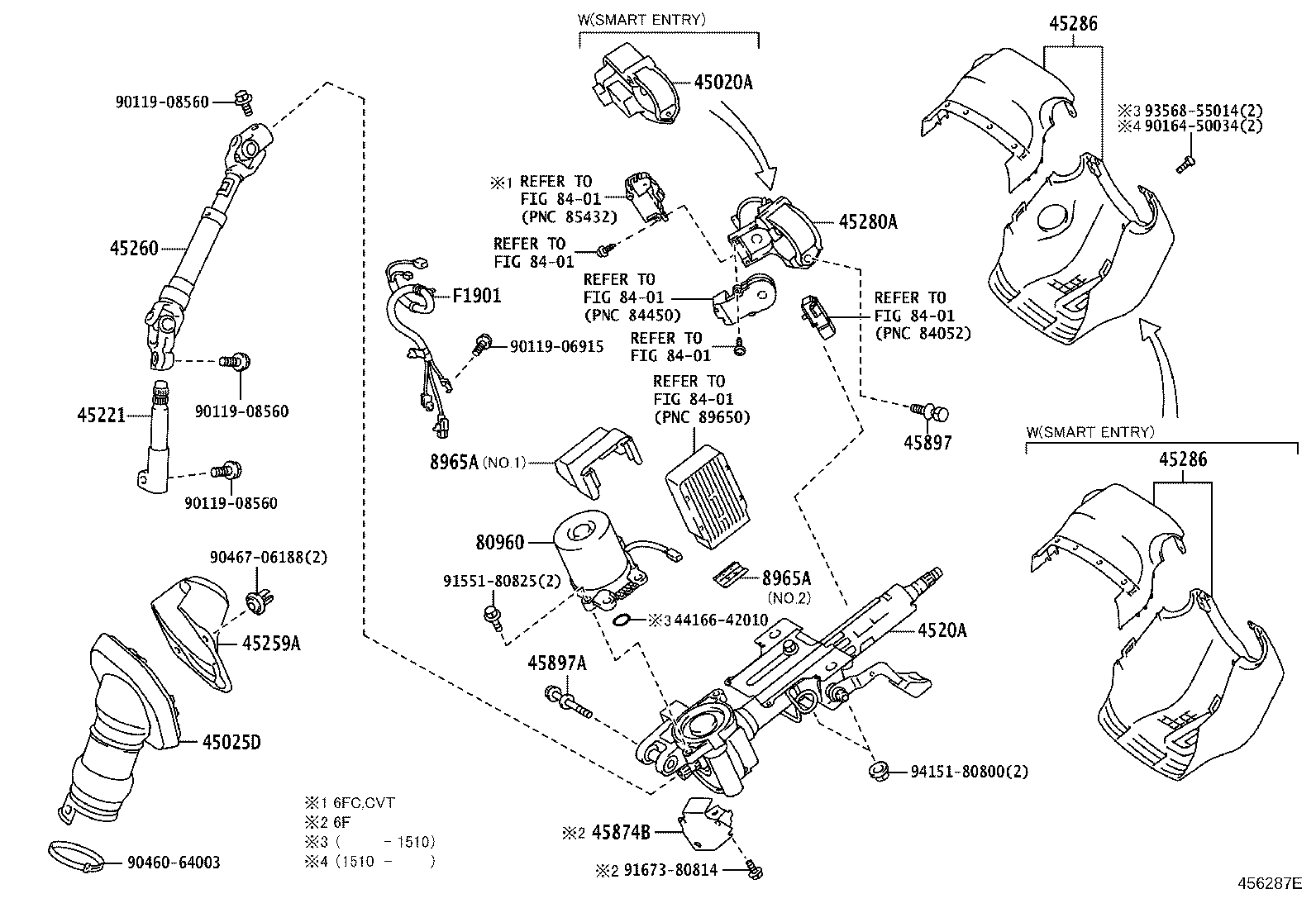

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-52200 |
ALA49..6FC..G..SA;ALA49..(G,M)..DCRL |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-42070 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-42050 |
ALA49..6FC..G..SA;ALA49..(G,M)..DCRL |
1 | ||
| 4520A-42060 |
ALA49..RHD..X;ALA49..6FC..M..SA |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-42090 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-42010 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-42100 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-42180 |
ALA49..RHD..6F..X |
1 | ||
| 45280-42170 |
ALA49..6FC..M..SA;ALA49..RHD..6FC..X |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-42920C0 |
ALA49..6FC..M..DCR KEY PLATE-MASTER 2 FOR SMART,BLACK,TRIM1#,2#,4# |
1 | ||
| 45286-42921C0 |
ALA49..X BLACK,TRIM2#,4# |
1 | ||
| 45286-42920C0 |
ALA49,AVA4#..M..(DCRL,HTWC) BLACK,TRIM1#,2#,4# |
1 | ||
| 45286-42921C0 |
ALA49..6FC..M..DCR BLACK,TRIM1#,2#,4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-42920C0 |
ALA49..6FC..M..DCR KEY PLATE-MASTER 2 FOR SMART,BLACK,TRIM1#,2#,4# |
1 | ||
| 45286-42921C0 |
ALA49..X BLACK,TRIM2#,4# |
1 | ||
| 45286-42920C0 |
ALA49,AVA4#..M..(DCRL,HTWC) BLACK,TRIM1#,2#,4# |
1 | ||
| 45286-42921C0 |
ALA49..6FC..M..DCR BLACK,TRIM1#,2#,4# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-42070 |
ALA49..RHD..6F..X |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ALA49..6FC..G..SA;ALA49..(G,M)..DCRL |
1 | ||
| 45897-12050 |
ALA49..RHD..X;ALA49..6FC..M..SA |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-33040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A NO.2 |
1 | ||
| 8965A-33030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A NO.1 |
1 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-33040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A NO.2 |
1 | ||
| 8965A-33030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A NO.1 |
1 | ||
| F1901 - WIRE SUB-ASSY, COMPUTER | ||||
| F1901-78040 |
ALA49..RHD..6FC;ALA49..RHD..6F..X |
1 | ||
| Common parts | ||||
| 44166-42010 | ||||
| 90119-06915 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90460-64003 | ||||
| 90467-06188 | ||||
| 91551-80825 | ||||
| 91673-80814 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
