ALA49R-ANTMXQ (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )RHD..6F

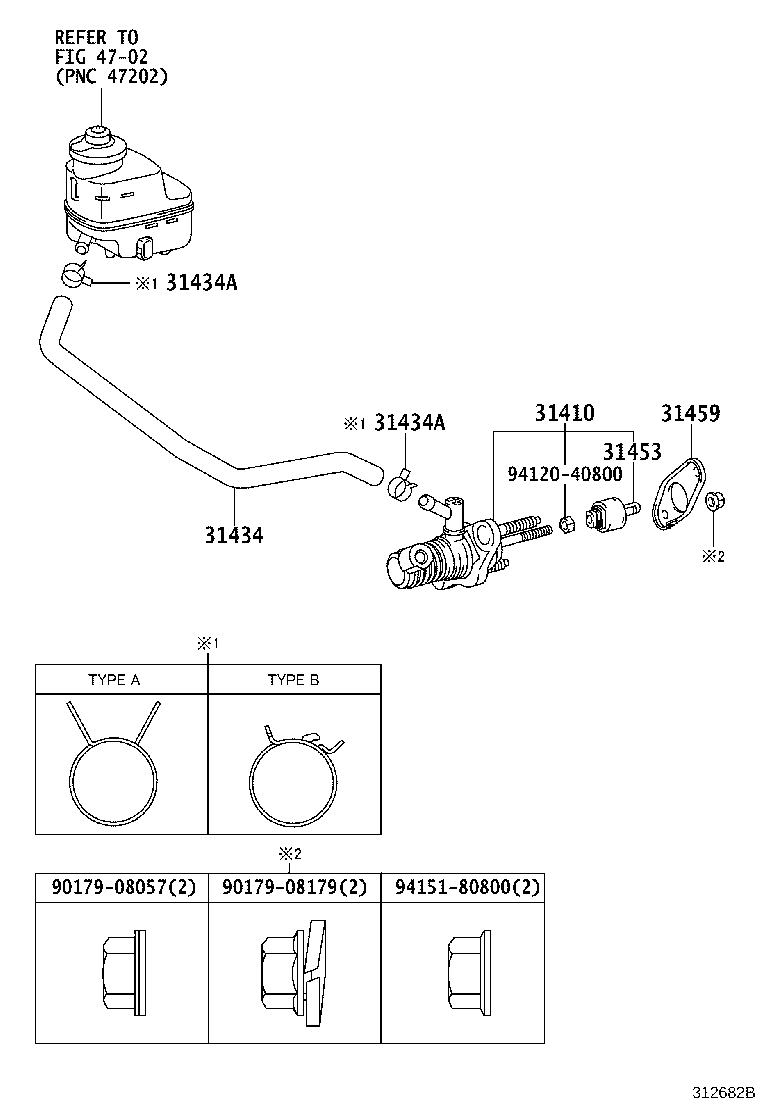

Click highlighted areas on diagram

diagram 31410 31434 31434A 31434A 31453 31459 4702 9017908057 9017908179 9412040800 9415180800
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-42060

ALA49,ASA44,ZSA42..RHD..6F

 1
31420-42061

ALA49..RHD..6F..X

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-42060

ALA49..RHD..6F..X

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

ALA49..6F..X

TYPE A:REFER ILLUST.

 2
96136-41801

ALA49..6F..X

TYPE B:REFER ILLUST.

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

ALA49..6F..X

TYPE A:REFER ILLUST.

 2
96136-41801

ALA49..6F..X

TYPE B:REFER ILLUST.

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-26021

ALA49..RHD..6F..X

 1
31404-26020

ALA49,ASA44,ZSA42..RHD..6F

 1
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-42040

ALA49..6F..X

 1
Common parts
90179-08057
90179-08179
94120-40800
94151-80800
Linked diagrams
4702
