ALA49L-ANFXY (2015)
Toyota Rav4
(1510- )

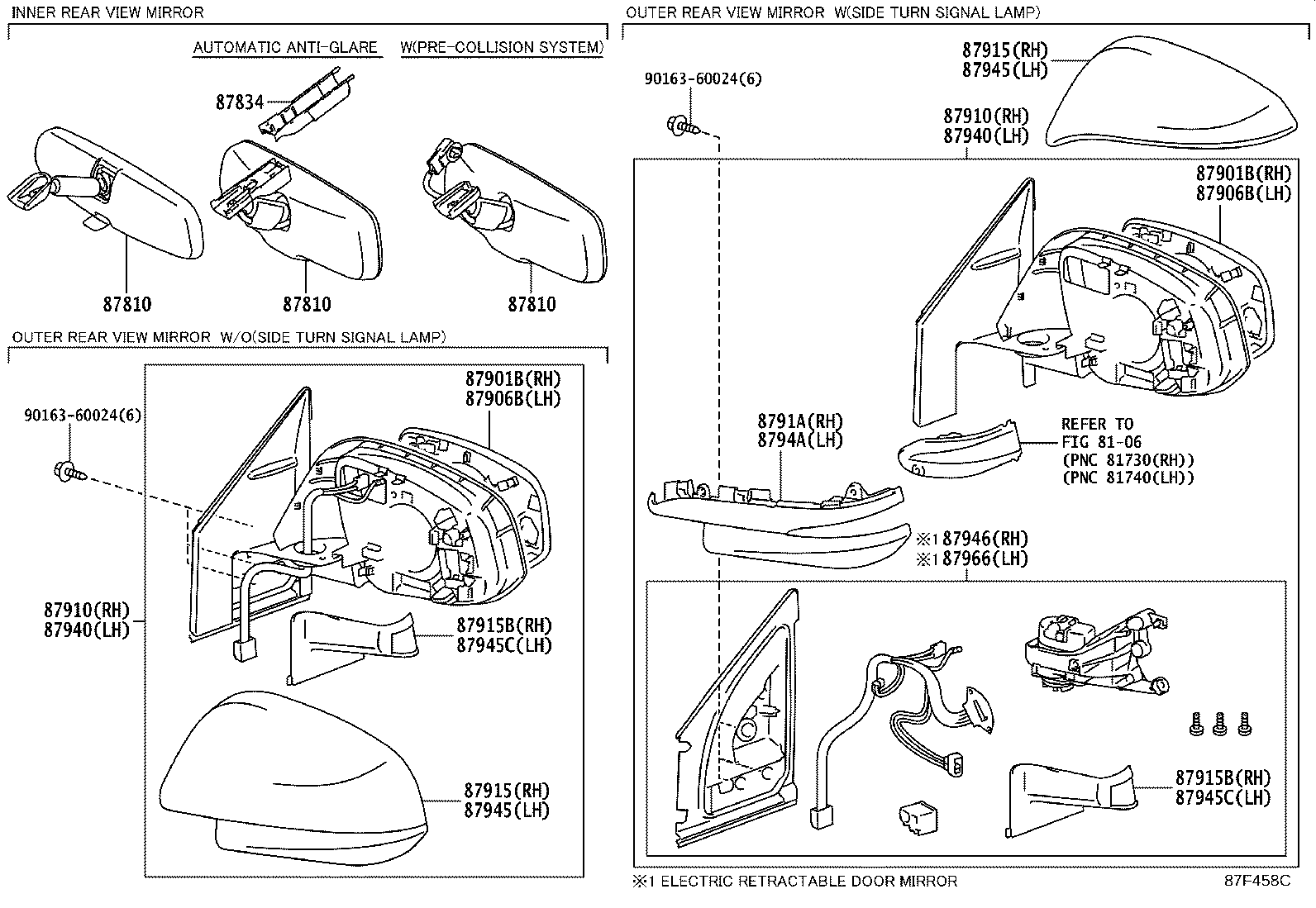

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WQ40 |
ALA49..X;ALA49..6FC..M..DCR |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WQ40 |
ALA49..X;ALA49..6FC..M..DCR |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WQ40 |
ALA49..X;ALA49..6FC..M..DCR |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42C10 |
ASA44..M..ARL;ZSA42..G..GEN;ALA49,ZSA42..(G,M)..ARL;ALA49,ASA4#,AVA4#,ZSA44..G..(DCR,EFI,HTWC)..(ARL,GEN,SA) |
1 | ||
| 87931-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-42C10 |
ASA44..M..ARL;ZSA42..G..GEN;ALA49,ZSA42..(G,M)..ARL;ALA49,ASA4#,AVA4#,ZSA44..G..(DCR,EFI,HTWC)..(ARL,GEN,SA) |
1 | ||
| 87931-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42B80 |
ASA44..M..ARL;ZSA42..G..GEN;ALA49,ZSA42..(G,M)..ARL;ALA49,ASA4#,AVA4#,ZSA44..G..(DCR,EFI,HTWC)..(ARL,GEN,SA) |
1 | ||
| 87961-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-42B80 |
ASA44..M..ARL;ZSA42..G..GEN;ALA49,ZSA42..(G,M)..ARL;ALA49,ASA4#,AVA4#,ZSA44..G..(DCR,EFI,HTWC)..(ARL,GEN,SA) |
1 | ||
| 87961-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN NO PAINT REQ. |
1 | ||
| 87910-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN NO PAINT REQ. |
1 | ||
| 87910-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-48040E2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87915-48040E2 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87915-48040A0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),WHITE PEARL CS.,070 |
1 | ||
| 87915-48040D3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87915-48040A1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SUPER WHITE 2,040 |
1 | ||
| 87915-48040B2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),GRAY ME.,1G3 |
1 | ||
| 87915-48040D3 |
ZSA44..RHD;ZSA42..CVT..G;ZSA44..LHD..B..G;ZSA42..6F..G..GEN;ZSA42..RHD..X..GEN;ASA44..X..(ARL,GCC);ZSA42..(M,X)..(ARL,SA);ASA44..RHD..(G,X)..(GEN,SA);ASA44..6FC..(G,M)..(ARL,GCC);ALA49,ASA42..6FC..(ARL,GCC,SA);ALA49,ASA42..6F..X..(ARL,GCC,SA);ASA44,ZSA42..RHD..(6FC,B)..M..GEN;ALA49,ASA4#,AVA4#..LHD..(6FC,A)..G..GEN DK.RED M.M.,3T0 |
1 | ||
| 87915-48040J1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLUE ME.,8X7 |
1 | ||
| 87915-48040B4 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1D6 |
1 | ||
| 87915-48040B0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1F7 |
1 | ||
| 87915-48040E2 |
ZSA44..G,M;ASA4#..X..GCC;ZSA44..RHD..X;ALA49,ASA44,ZSA42..RHD;ALA49,ASA4#,AVA4#,ZSA42..LHD..(G,M) ORANGE ME.,4R8 |
1 | ||
| 87915-48040E0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.BROWN ME.,4U5 |
1 | ||
| 87915-48040E3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BRONZE M.M.,4T3 |
1 | ||
| 87915-48040D3 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87915-48040C2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACKISH AGEHA M.M.,221 |
1 | ||
| 87915-48040B0 |
ZSA44..A..G;ALA49..6F..(G,M)..GEN;ASA4#,ZSA4#..LHD..M..GEN;ALA49,AVA4#..(6FC,A)..M..GEN SILVER ME.,1F7 |
1 | ||
| 87915-48040C3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACK MC.,209 |
1 | ||
| 87915-48040D3 |
ZSA44..A..G;ASA44..M..SA;ASA44..6F..M;ZSA44..LHD..M;ALA49..6F..(G,M);ZSA42..LHD..B..M;ASA42..6F..M..GCC;ASA44,ZSA42..6F..G..ARL;ASA42,ZSA42..(6F,6FC,A)..M..GEN;ALA49,ASA44,AVA4#..LHD..(6FC,A)..M..GEN DK.RED M.M.,3T0 |
1 | ||
| 87915-48040B0 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),SILVER ME.,1F7 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-48040E2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87915-48040E2 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87915-48040A0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),WHITE PEARL CS.,070 |
1 | ||
| 87915-48040D3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87915-48040A1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SUPER WHITE 2,040 |
1 | ||
| 87915-48040B2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),GRAY ME.,1G3 |
1 | ||
| 87915-48040D3 |
ZSA44..RHD;ZSA42..CVT..G;ZSA44..LHD..B..G;ZSA42..6F..G..GEN;ZSA42..RHD..X..GEN;ASA44..X..(ARL,GCC);ZSA42..(M,X)..(ARL,SA);ASA44..RHD..(G,X)..(GEN,SA);ASA44..6FC..(G,M)..(ARL,GCC);ALA49,ASA42..6FC..(ARL,GCC,SA);ALA49,ASA42..6F..X..(ARL,GCC,SA);ASA44,ZSA42..RHD..(6FC,B)..M..GEN;ALA49,ASA4#,AVA4#..LHD..(6FC,A)..G..GEN DK.RED M.M.,3T0 |
1 | ||
| 87915-48040J1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLUE ME.,8X7 |
1 | ||
| 87915-48040B4 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1D6 |
1 | ||
| 87915-48040B0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1F7 |
1 | ||
| 87915-48040E2 |
ZSA44..G,M;ASA4#..X..GCC;ZSA44..RHD..X;ALA49,ASA44,ZSA42..RHD;ALA49,ASA4#,AVA4#,ZSA42..LHD..(G,M) ORANGE ME.,4R8 |
1 | ||
| 87915-48040E0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.BROWN ME.,4U5 |
1 | ||
| 87915-48040E3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BRONZE M.M.,4T3 |
1 | ||
| 87915-48040D3 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87915-48040C2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACKISH AGEHA M.M.,221 |
1 | ||
| 87915-48040B0 |
ZSA44..A..G;ALA49..6F..(G,M)..GEN;ASA4#,ZSA4#..LHD..M..GEN;ALA49,AVA4#..(6FC,A)..M..GEN SILVER ME.,1F7 |
1 | ||
| 87915-48040C3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACK MC.,209 |
1 | ||
| 87915-48040D3 |
ZSA44..A..G;ASA44..M..SA;ASA44..6F..M;ZSA44..LHD..M;ALA49..6F..(G,M);ZSA42..LHD..B..M;ASA42..6F..M..GCC;ASA44,ZSA42..6F..G..ARL;ASA42,ZSA42..(6F,6FC,A)..M..GEN;ALA49,ASA44,AVA4#..LHD..(6FC,A)..M..GEN DK.RED M.M.,3T0 |
1 | ||
| 87915-48040B0 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),SILVER ME.,1F7 |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42140 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87915B - COVER, OUTER MIRROR, LOWER RH | ||||
| 87915-42140 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-42C10 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN NO PAINT REQ. |
1 | ||
| 87940-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN NO PAINT REQ. |
1 | ||
| 87940-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-48040E2 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87945-48040A0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),WHITE PEARL CS.,070 |
1 | ||
| 87945-48040A1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SUPER WHITE 2,040 |
1 | ||
| 87945-48040E2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87945-48040B2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),GRAY ME.,1G3 |
1 | ||
| 87945-48040E0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.BROWN ME.,4U5 |
1 | ||
| 87945-48040E3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BRONZE M.M.,4T3 |
1 | ||
| 87945-48040B4 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1D6 |
1 | ||
| 87945-48040B0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1F7 |
1 | ||
| 87945-48040C3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACK MC.,209 |
1 | ||
| 87945-48040B0 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),SILVER ME.,1F7 |
1 | ||
| 87945-48040D3 |
ZSA44..A..G;ASA44..M..SA;ASA44..6F..M;ZSA44..LHD..M;ALA49..6F..(G,M);ZSA42..LHD..B..M;ASA42..6F..M..GCC;ASA44,ZSA42..6F..G..ARL;ASA42,ZSA42..(6F,6FC,A)..M..GEN;ALA49,ASA44,AVA4#..LHD..(6FC,A)..M..GEN DK.RED M.M.,3T0 |
1 | ||
| 87945-48040D3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87945-48040B0 |
ZSA44..A..G;ALA49..6F..(G,M)..GEN;ASA4#,ZSA4#..LHD..M..GEN;ALA49,AVA4#..(6FC,A)..M..GEN SILVER ME.,1F7 |
1 | ||
| 87945-48040D3 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87945-48040C2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACKISH AGEHA M.M.,221 |
1 | ||
| 87945-48040D3 |
ZSA44..RHD;ZSA42..CVT..G;ZSA44..LHD..B..G;ZSA42..6F..G..GEN;ZSA42..RHD..X..GEN;ASA44..X..(ARL,GCC);ZSA42..(M,X)..(ARL,SA);ASA44..RHD..(G,X)..(GEN,SA);ASA44..6FC..(G,M)..(ARL,GCC);ALA49,ASA42..6FC..(ARL,GCC,SA);ALA49,ASA42..6F..X..(ARL,GCC,SA);ASA44,ZSA42..RHD..(6FC,B)..M..GEN;ALA49,ASA4#,AVA4#..LHD..(6FC,A)..G..GEN DK.RED M.M.,3T0 |
1 | ||
| 87945-48040E2 |
ZSA44..G,M;ASA4#..X..GCC;ZSA44..RHD..X;ALA49,ASA44,ZSA42..RHD;ALA49,ASA4#,AVA4#,ZSA42..LHD..(G,M) ORANGE ME.,4R8 |
1 | ||
| 87945-48040J1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLUE ME.,8X7 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-48040E2 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87945-48040A0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),WHITE PEARL CS.,070 |
1 | ||
| 87945-48040A1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SUPER WHITE 2,040 |
1 | ||
| 87945-48040E2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),ORANGE ME.,4R8 |
1 | ||
| 87945-48040B2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),GRAY ME.,1G3 |
1 | ||
| 87945-48040E0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.BROWN ME.,4U5 |
1 | ||
| 87945-48040E3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BRONZE M.M.,4T3 |
1 | ||
| 87945-48040B4 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1D6 |
1 | ||
| 87945-48040B0 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),SILVER ME.,1F7 |
1 | ||
| 87945-48040C3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACK MC.,209 |
1 | ||
| 87945-48040B0 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),SILVER ME.,1F7 |
1 | ||
| 87945-48040D3 |
ZSA44..A..G;ASA44..M..SA;ASA44..6F..M;ZSA44..LHD..M;ALA49..6F..(G,M);ZSA42..LHD..B..M;ASA42..6F..M..GCC;ASA44,ZSA42..6F..G..ARL;ASA42,ZSA42..(6F,6FC,A)..M..GEN;ALA49,ASA44,AVA4#..LHD..(6FC,A)..M..GEN DK.RED M.M.,3T0 |
1 | ||
| 87945-48040D3 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87945-48040B0 |
ZSA44..A..G;ALA49..6F..(G,M)..GEN;ASA4#,ZSA4#..LHD..M..GEN;ALA49,AVA4#..(6FC,A)..M..GEN SILVER ME.,1F7 |
1 | ||
| 87945-48040D3 |
ALA49,ZSA44..LHD..(6F,6FC,B)..X OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER),DK.RED M.M.,3T0 |
1 | ||
| 87945-48040C2 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLACKISH AGEHA M.M.,221 |
1 | ||
| 87945-48040D3 |
ZSA44..RHD;ZSA42..CVT..G;ZSA44..LHD..B..G;ZSA42..6F..G..GEN;ZSA42..RHD..X..GEN;ASA44..X..(ARL,GCC);ZSA42..(M,X)..(ARL,SA);ASA44..RHD..(G,X)..(GEN,SA);ASA44..6FC..(G,M)..(ARL,GCC);ALA49,ASA42..6FC..(ARL,GCC,SA);ALA49,ASA42..6F..X..(ARL,GCC,SA);ASA44,ZSA42..RHD..(6FC,B)..M..GEN;ALA49,ASA4#,AVA4#..LHD..(6FC,A)..G..GEN DK.RED M.M.,3T0 |
1 | ||
| 87945-48040E2 |
ZSA44..G,M;ASA4#..X..GCC;ZSA44..RHD..X;ALA49,ASA44,ZSA42..RHD;ALA49,ASA4#,AVA4#,ZSA42..LHD..(G,M) ORANGE ME.,4R8 |
1 | ||
| 87945-48040J1 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER),BLUE ME.,8X7 |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42140 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87945C - COVER, OUTER MIRROR, LOWER LH | ||||
| 87945-42140 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-42C10 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-42B80 |
ALA49,ASA4#,ZSA4#..LHD..X..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-42B80 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
