ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

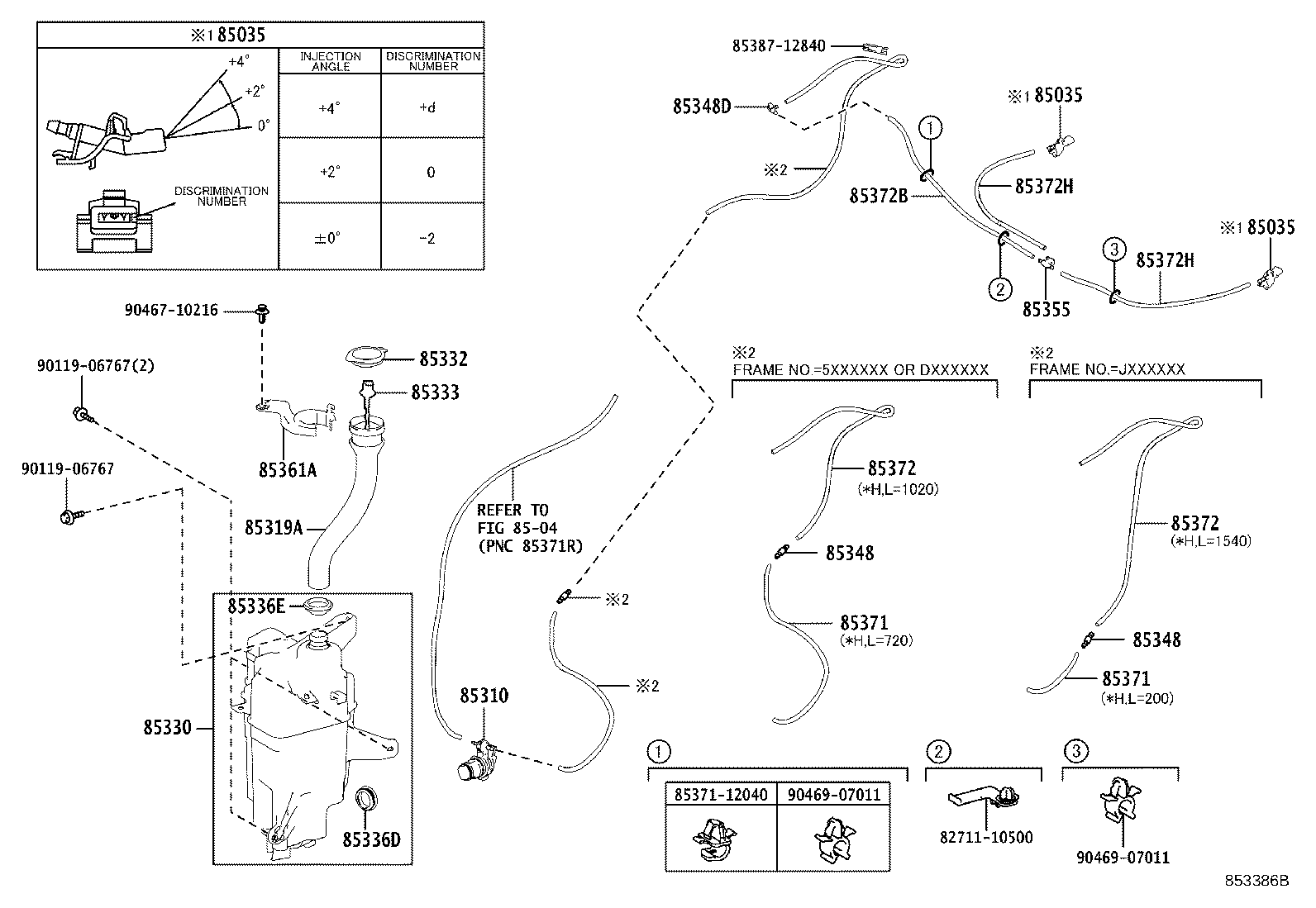

Click highlighted areas on diagram

diagram 8271110500 85035 85035 85035 8504 85310 85319A 85330 85332 85333 85336D 85336E 85348 85348 85348D 85355 85361A 85371 85371 8537112040 85372 85372 85372B 85372H 85372H 8538712840 9011906767 9011906767 9046710216 9046907011 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE 0

 2
85381-12430

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +4

 2
85381-12420

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE 0

 2
85381-12430

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +4

 2
85381-12420

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12400

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE 0

 2
85381-12430

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +4

 2
85381-12420

ALA49..6F..X;ALA49,AVA4#..6FC,A

ANGLE +2

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85319A - HOSE, INLET
85319-42230

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-42350

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-42360

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-47020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-60300

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-42320

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-60290

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85337-42350

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=200,*561,*562

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=200,*561,*562

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=1540,*561

 1
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=1020,*562

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=1540,*561

 1
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=1020,*562

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=680

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=440

 2
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ALA49..6F..X;ALA49,AVA4#..6FC,A

*H,L=440

 2
Common parts
82711-10500
85371-12040
85387-12840
90119-06767
90467-10216
90469-07011
Linked diagrams
8504
