ALA49L-ANFXY (2015)
Toyota Rav4

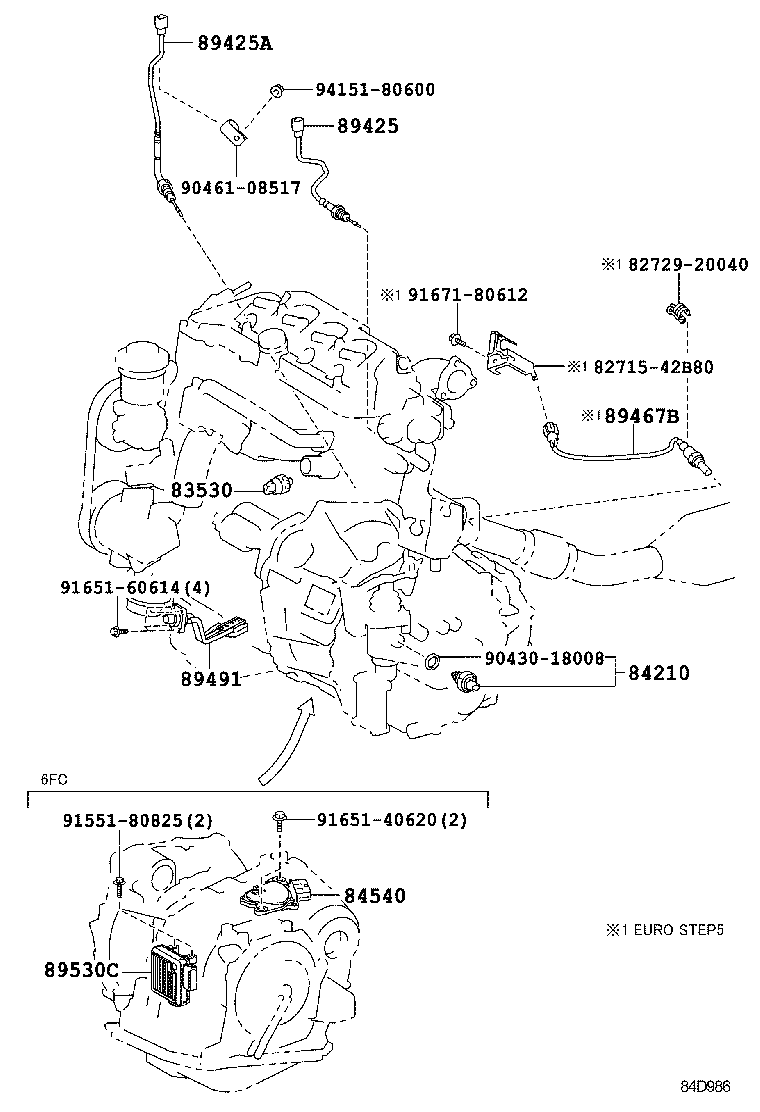

ILLUST NO. 1 OF 8(1510- )ALA49
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
ALA49 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ALA49..6F..X |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-20131 |
ALA49 |
1 | ||
| Common parts | ||||
| 82715-42B80 | ||||
| 82729-20040 | ||||
| 90430-18008 | ||||
| 90461-08517 | ||||
| 91551-80825 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||

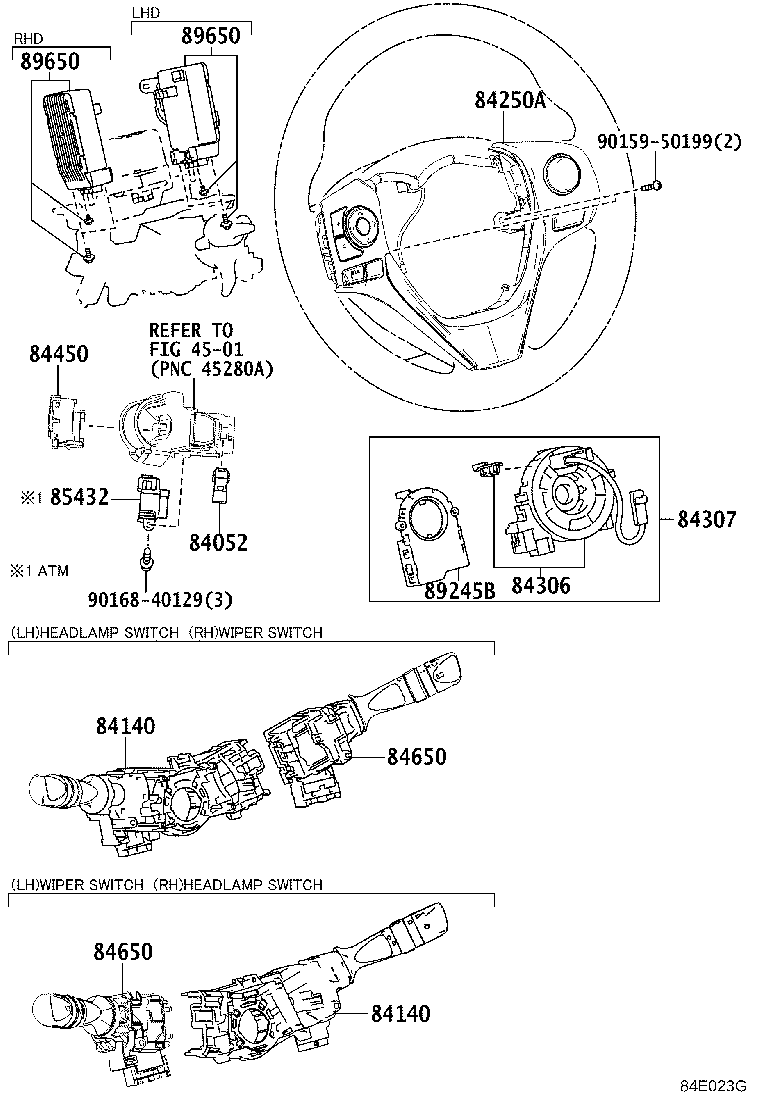

ILLUST NO. 6 OF 8(1212- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33240 |
ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 84140-12800 |
ALA49..X..GEN MOROCCO SPEC&FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 84140-12800 |
ALA49..M..GEN MOROCCO SPEC&LIGHT CONTROL SYSTEM-AUTO CUT ONLY |
1 | ||
| 84140-42120 |
ALA49,AVA4#..(6FC,A)..M..GEN LIGHT CONTROL SYSTEM-AUTO CUT ONLY |
1 | ||
| 84140-12770 |
ALA49..X..GEN MOROCCO SPEC |
1 | ||
| 84140-42130 |
ALA49..X..GEN |
1 | ||
| 84140-42120 |
ALA49..X..GEN FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 84140-33250 |
ALA49..(G,M)..GEN MOROCCO SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33240 |
ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 84140-12800 |
ALA49..X..GEN MOROCCO SPEC&FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 84140-12800 |
ALA49..M..GEN MOROCCO SPEC&LIGHT CONTROL SYSTEM-AUTO CUT ONLY |
1 | ||
| 84140-42120 |
ALA49,AVA4#..(6FC,A)..M..GEN LIGHT CONTROL SYSTEM-AUTO CUT ONLY |
1 | ||
| 84140-12770 |
ALA49..X..GEN MOROCCO SPEC |
1 | ||
| 84140-42130 |
ALA49..X..GEN |
1 | ||
| 84140-42120 |
ALA49..X..GEN FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 84140-33250 |
ALA49..(G,M)..GEN MOROCCO SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-42220C1 |
ALA49..X..GEN BLACK,TRIM2#,4# |
1 | ||
| 84250-42220C1 |
ALA49,AVA4#..(6FC,A)..G BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42220C1 |
ALA49,AVA4#..(6FC,A)..M BLACK,TRIM1#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-12100 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A860 |
ALA49..X..GEN;ALA49..6FC..(G,M)..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A860 |
ALA49..X..GEN;ALA49..6FC..(G,M)..GEN |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-12010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42240 |
ALA49,ASA4#,ZSA4#..LHD |
1 | ||
| 89650-42241 |
ALA49..X..GEN;ALA49..6FC..(G,M)..GEN |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42240 |
ALA49,ASA4#,ZSA4#..LHD |
1 | ||
| 89650-42241 |
ALA49..X..GEN;ALA49..6FC..(G,M)..GEN |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

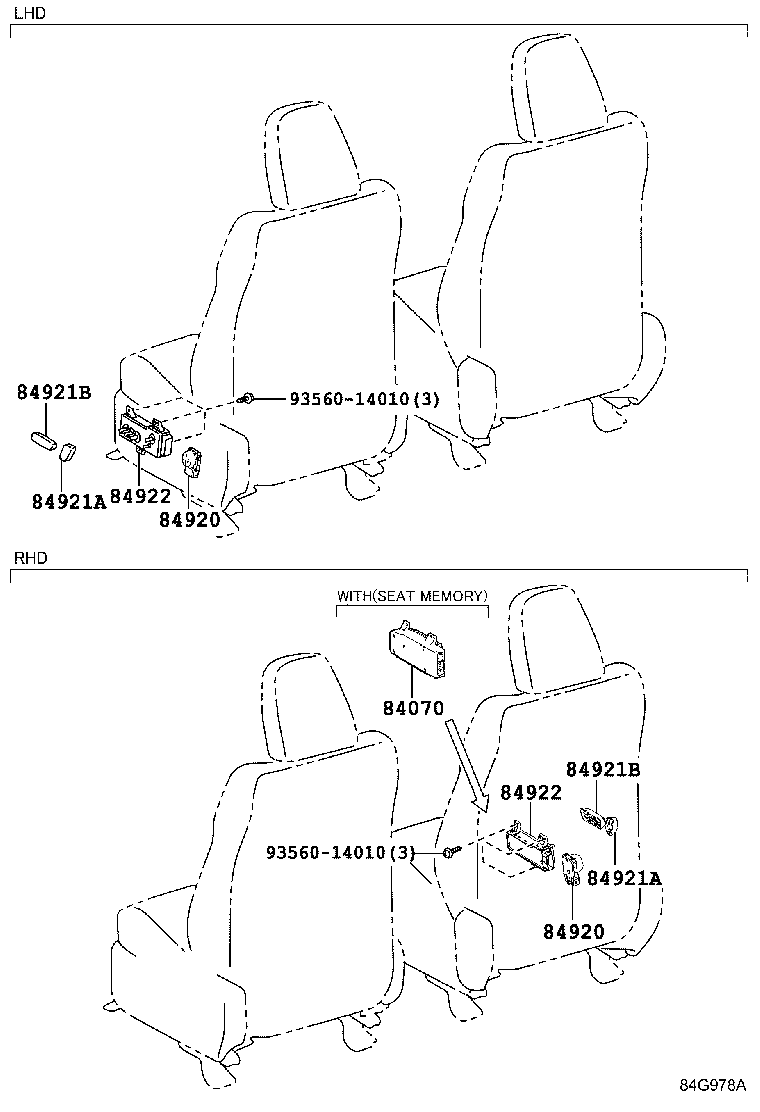

ILLUST NO. 7 OF 8(1212- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60090C0 |
ALA49,AVA4#..(6FC,A)..G BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60090C0 |
ALA49,AVA4#..(6FC,A)..G BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22090C0 |
ALA49,AVA4#..(6FC,A)..G..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-22090C0 |
ALA49,AVA4#..(6FC,A)..G..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-22100C0 |
ALA49,AVA4#..(6FC,A)..G..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-22100C0 |
ALA49,AVA4#..(6FC,A)..G..GEN BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-60180 |
ALA49,AVA4#..(6FC,A)..G..GEN |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-60180 |
ALA49,AVA4#..(6FC,A)..G..GEN |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||

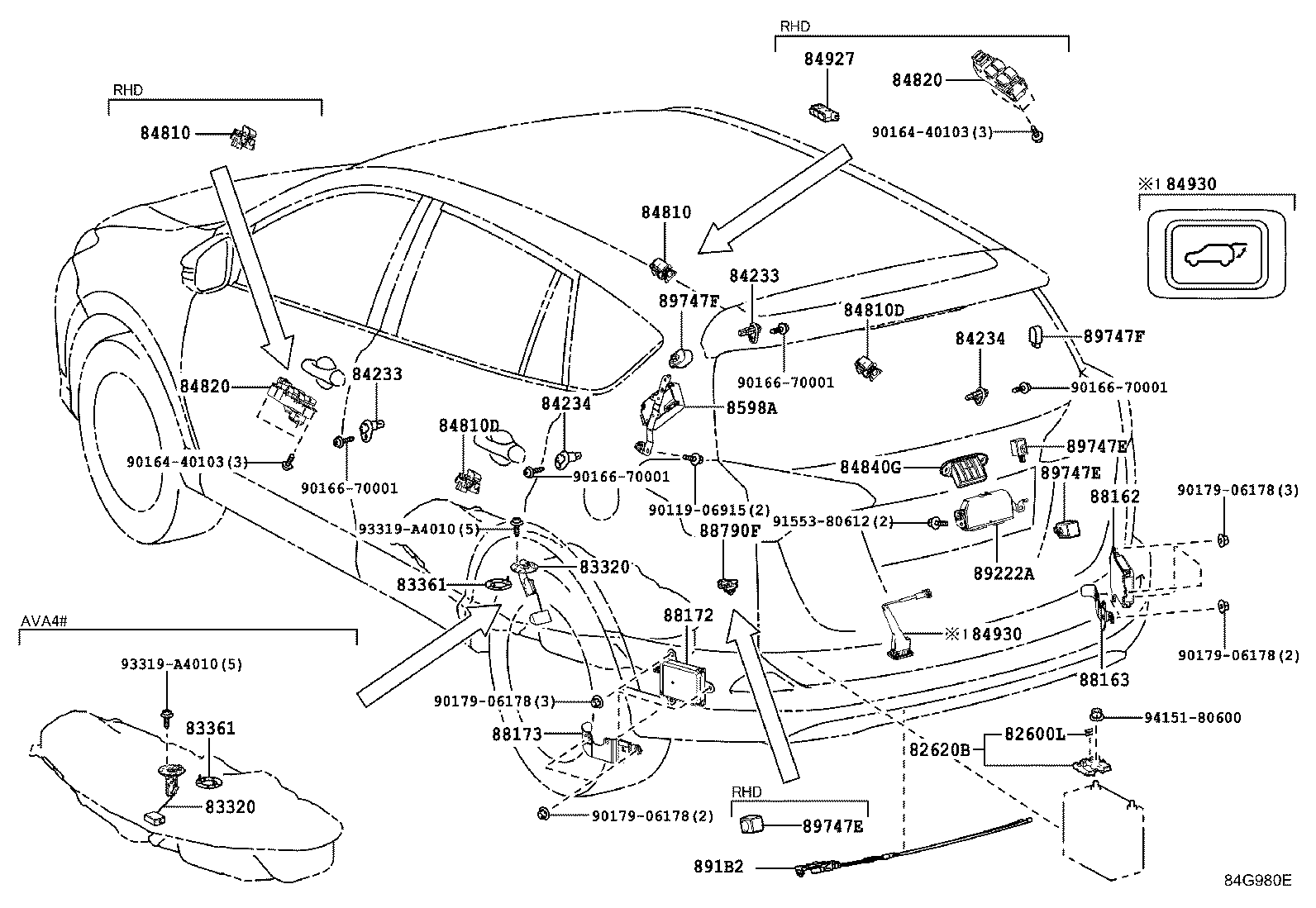

ILLUST NO. 8 OF 8(1510- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49215 |
ALA49 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49215 |
ALA49 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 84820-42200 |
ALA49..X..GEN |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 84820-42200 |
ALA49..X..GEN |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-78010 |
ALA49..X;ALA49..6FC..M..DCR |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
ALA49..6FC..M..SA;ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
ALA49..6FC..M..SA;ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-42010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W030 |
ALA49,AVA4#..(6FC,A)..G..(GEN,SA) POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-42041 |
ASA44..M..ARL;ALA49,ZSA42..G..GEN;ALA49,ZSA42..M..(ARL,GEN);ASA4#,AVA4#,ZSA44..(G,M)..(GCC,GEN) POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89222-42040 |
ASA44..M..ARL;ALA49,ZSA42..G..GEN;ALA49,ZSA42..M..(ARL,GEN);ASA4#,AVA4#,ZSA44..(G,M)..(GCC,GEN) POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89222-42090 |
ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 89222-42040 |
ALA49,ASA4#,ZSA4#..M..(GEN,SA) POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89222-42041 |
ALA49,ASA4#,ZSA4#..M..(GEN,SA) POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
| 94151-80600 | ||||

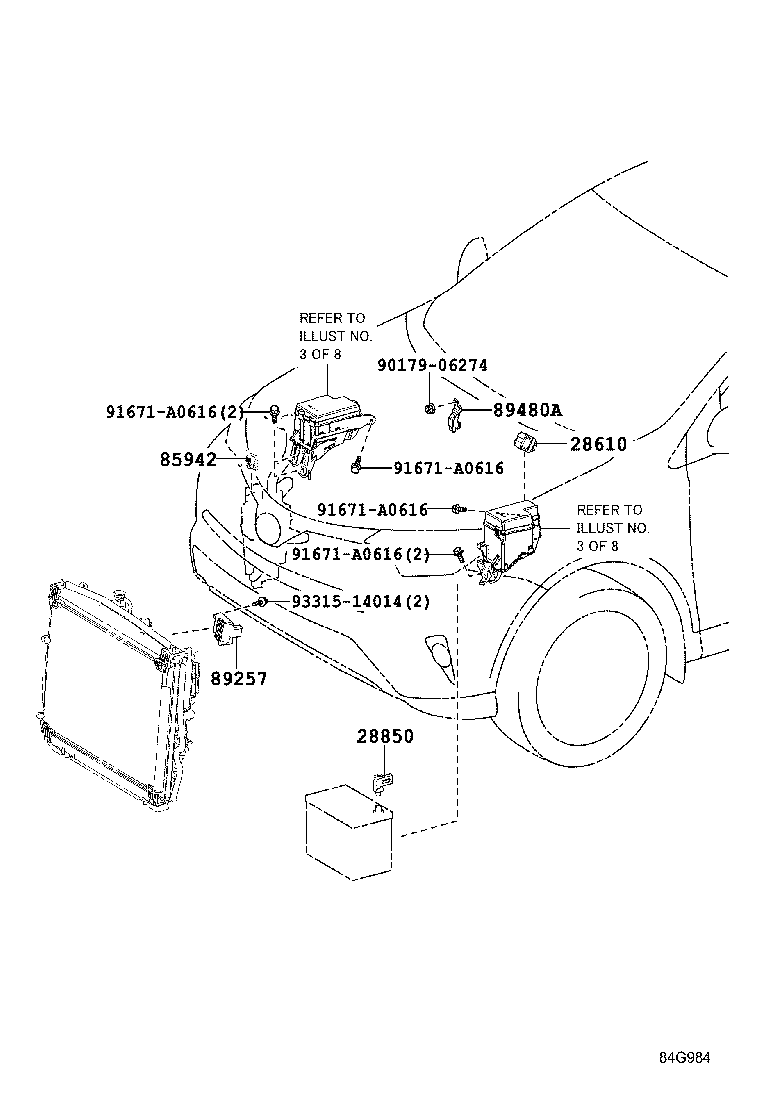

ILLUST NO. 2 OF 8(1510- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
2AD#..ALA49 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
2AD#..ALA49 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91671-A0616 | ||||
| 93315-14014 | ||||
ILLUST NO. 3 OF 8(1510- )ALA49,ASA4#,ZSA4#
ENGINE ROOM RELAY BLOCK(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
2ADFHV..ALA49;2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M) |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M);2ADFHV,2ARFXE..ALA49,AVA4# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA49..6FC;ALA49..6F..X 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA49..6FC;ALA49..6F..X 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ALA49..6FC;ALA49..6F..X 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA49..6FC;ALA49..6F..X 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA49..6FC;ALA49..6F..X 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ALA49..6FC;ALA49..6F..X 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ALA49..6FC;ALA49..6F..X 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ALA49..M..GEN MOROCCO SPEC&HEAD LAMP-LED |
1 | ||
| 90987-02027 |
ALA49..(M,X)..GEN MOROCCO SPEC |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42520 |
ALA49 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42630 |
ALA49 |
1 | ||
| 82662-42630 |
ALA49,ASA4#,AVA4#,ZSA4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42031 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ALA49..X |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ALA49..X..DCR FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 90987-02027 |
ALA49,AVA4#..(6FC,A)..(G,M) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ALA49..6FC;ALA49..6F..X;ZSA42..LHD..6F..M |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02027 |
ALA49 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04004 |
ALA49 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
ALA49 |
3 | ||
| Common parts | ||||
| 90119-06651 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
ILLUST NO. 3 OF 8(1510- )G,M
ENGINE ROOM RELAY BLOCK(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M);2ADFHV,2ARFXE..ALA49,AVA4# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA49..6FC;ALA49..6F..X 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA49..6FC;ALA49..6F..X 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ALA49..6FC;ALA49..6F..X 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
ALA49..6FC;ALA49..6F..X 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA49..6FC;ALA49..6F..X 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ALA49..6FC;ALA49..6F..X 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ALA49..6FC;ALA49..6F..X 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
ALA49..M..GEN MOROCCO SPEC&HEAD LAMP-LED |
1 | ||
| 90987-02027 |
ALA49..(M,X)..GEN MOROCCO SPEC |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-52130 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42520 |
ALA49 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42630 |
ALA49 |
1 | ||
| 82662-42630 |
ALA49,ASA4#,AVA4#,ZSA4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42031 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ALA49..X |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ALA49..X..DCR FRONT FOG LAMP-WITH(CHROM) |
1 | ||
| 90987-02027 |
ALA49,AVA4#..(6FC,A)..(G,M) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ALA49..6FC;ALA49..6F..X;ZSA42..LHD..6F..M |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 87200H - RELAY, HEATER WATER PUMP | ||||
| 90987-02027 |
ALA49,AVA4#..(6FC,A)..(G,M) |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
ALA49 |
3 | ||
| Common parts | ||||
| 90119-06651 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF 8(1510- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA49..6F..X;ALA49,AVA4#..6FC,A 20A,MINI FUSE,YELLOW |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42190 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42810 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD |
1 | ||
| 82730-42811 |
ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-42030 |
ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 82877-42030 |
ALA49..X..GEN CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49065 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ALA49..6F..X |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ALA49..GEN MOROCCO SPEC |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
ALA49..6F..X |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-42021 |
ALA49,AVA4#..(6FC,A)..(G,M) |
1 | ||
| 89111-42020 |
ALA49,ASA4#,AVA4#,ZSA4#..G,M |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
ALA49,AVA4#..(6FC,A)..(G,M) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-42Y40 |
ALA49,ASA4#,ZSA4#..LHD..M..GEN POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-42Y20 |
ALA49,ASA4#,ZSA4#..LHD..(M,X)..GEN |
1 | ||
| 89220-42Y50 |
AVA4#;ALA49,ASA4#,ZSA4#..LHD..G..GEN |
1 | ||
| 89220-42Y50 |
ALA49,ASA4#,ZSA4#..LHD..M..GEN POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-42Z10 |
ALA49..M..GEN MOROCCO SPEC&HEAD LAMP-LED |
1 | ||
| 89220-42Y50 |
ALA49,ASA4#,ZSA4#..LHD..M..GEN HEAD LAMP-LED |
1 | ||
| 89220-42Z10 |
AVA42;ALA49..G..GEN MOROCCO SPEC |
1 | ||
| 89220-42Z00 |
ALA49..M..GEN MOROCCO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-42Y90 |
ALA49..(M,X)..GEN MOROCCO SPEC |
1 | ||
| 89220-42Z10 |
ALA49..M..GEN MOROCCO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4AB30 |
AVA42;ALA49..G..GEN MOROCCO SPEC |
1 | ||
| 89220-4AB10 |
ALA49..(M,X)..GEN MOROCCO SPEC |
1 | ||
| 89220-4AA40 |
ALA49..X..GEN;ALA49..6FC..M..GEN |
1 | ||
| 89220-4AB20 |
ALA49..M..GEN MOROCCO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4AB30 |
ALA49..M..GEN MOROCCO SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AB30 |
ALA49..M..GEN MOROCCO SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8433 | ||||

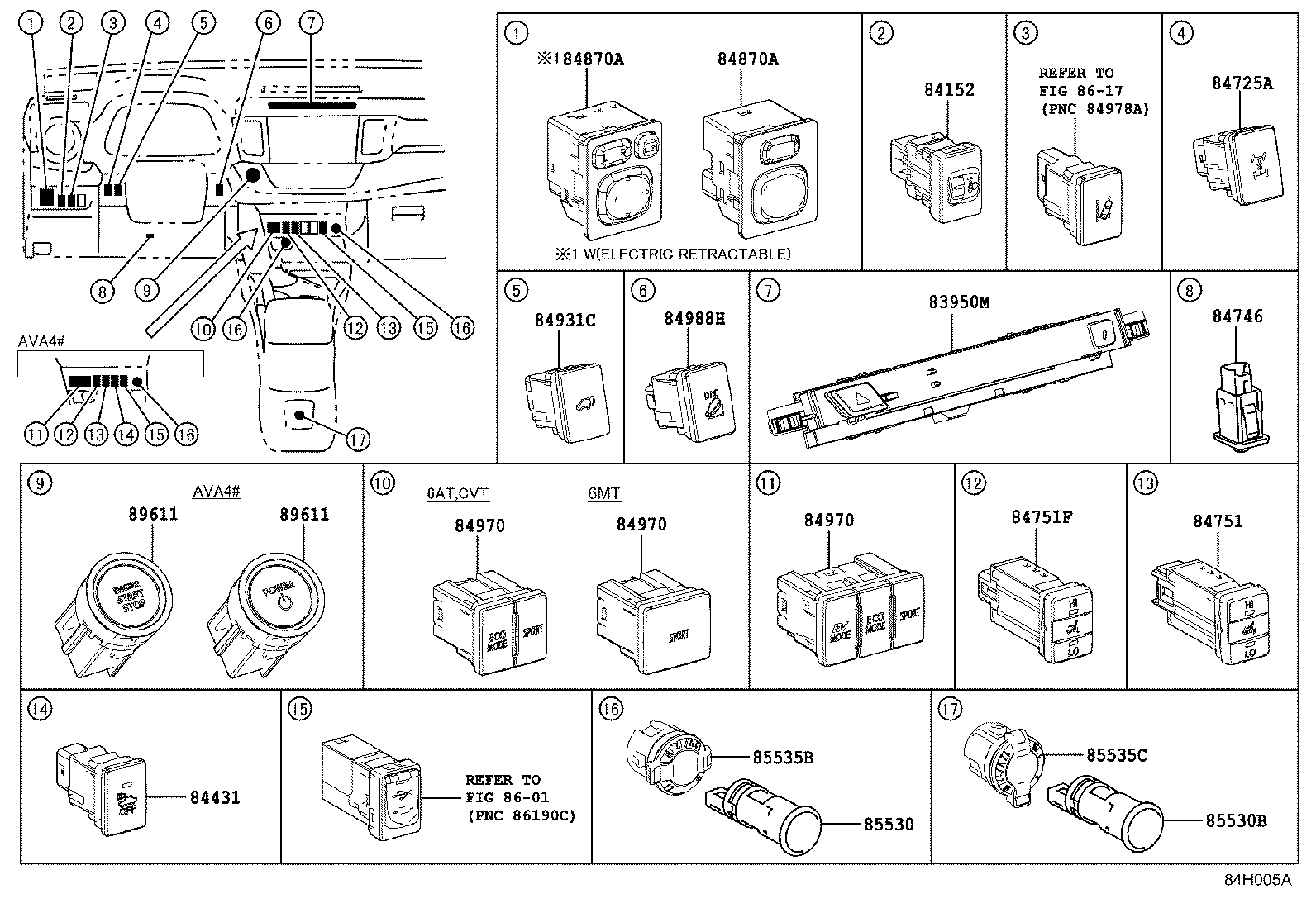

ILLUST NO. 5 OF 8(1510- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42250 |
ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN |
1 | ||
| 83950-42260 |
ALA49..X..GEN CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-42011 |
ALA49..6FC;ALA49..6F..X |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42072 |
ALA49,AVA4#..(6FC,A)..G..GEN SEAT HEATER-WITHOUT |
1 | ||
| 84751-42072 |
ALA49,AVA4#..(6FC,A)..G |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42082 |
ALA49,AVA4#..(6FC,A)..G |
1 | ||
| 84751-42082 |
ALA49,AVA4#..(6FC,A)..G..GEN SEAT HEATER-WITHOUT |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52050 |
ALA49..(G,M)..DCRL;ALA49,AVA4#..(6FC,A)..G..(GEN,SA) |
1 | ||
| 84870-52050 |
ALA49,AVA4#..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57 & PAINTED, W(TURN SIGNAL & HEATER) |
1 | ||
| 84870-74010 |
ALA49..X;ALA49,AVA4#..(6FC,A)..M..(GEN,SA) |
1 | ||
| 84870-52050 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52050 |
ALA49..(G,M)..DCRL;ALA49,AVA4#..(6FC,A)..G..(GEN,SA) |
1 | ||
| 84870-52050 |
ALA49,AVA4#..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57 & PAINTED, W(TURN SIGNAL & HEATER) |
1 | ||
| 84870-74010 |
ALA49..X;ALA49,AVA4#..(6FC,A)..M..(GEN,SA) |
1 | ||
| 84870-52050 |
ALA49,ASA4#,AVA4#,ZSA4#..LHD..(M,X)..GEN OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-42051 |
ALA49..6FC..M..SA;ALA49,AVA4#..(6FC,A)..G..GEN POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42020 |
ALA49..6F..X |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42020 |
ALA49..6F..X |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42020 |
ALA49..6F..X |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
2 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-42070 |
ALA49..6F..X;ALA49,AVA4#..6FC,A |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC) |
1 | ||
| 89611-42011 |
ALA49,ASA4#,ZSA4#..M..(GEN,SA) KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ASA44..G;ASA44..M..(ARL,GCC);ALA49,ASA42,ZSA4#..G..(GEN,SA);ALA49,ASA42,ZSA42..(G,M)..(ARL,GCC) |
1 | ||
| 89611-42011 |
ALA49,ASA4#,ZSA4#..M..(GEN,SA) KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
| 8617 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
