ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ALA49,ASA4#,ZSA4#

Click highlighted areas on diagram

REAR SEAT(RH)

diagram 71015A 71017 71075S 71077S 71303C 71304C 7152 7152 7152 7152 71611A 71651S 71691E 71692E 71825B 71828B 71845D 71848B 71881 71897 71897 71931A 71931A 71940A 72380 72525B 72730A 72749 72749 72749 72749 72995A 72995A 72996 72996 72996A 7889942010 7889942010 7889942010 7889942010 9011910578 9016740044 9016740044 9016850078 9092901366 9092901366
Part # Description Qty Price
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
72996A - COVER, REAR SEAT BACK
72996-50100C0

ALA49,ASA4#,ZSA4#..G

BLACK,TRIM1#,2#,3#,4#

 2
72996-50100C0

ALA49,ASA4#,ZSA4#..X

BLACK,TRIM2#,4#

 2
72996-50100C0

ALA49,ASA4#,ZSA4#..M

BLACK,TRIM1#,2#,4#

 2
Common parts
78899-42010
90119-10578
90167-40044
90168-50078
90929-01366
Linked diagrams
7152

(1212- )ALA49,ASA4#,ZSA4#

Click highlighted areas on diagram

REAR SEAT(LH)

diagram 71016A 71018 71076S 71078S 71303C 71304C 7152 7152 7152 7152 71612A 71652S 71693A 71694 71826B 71829B 71846B 71849C 71882A 71897 71897 71931A 71931A 71931B 71931B 71940A 71960B 72380 72526B 72740A 72749 72749 72749 72749 72830 72831B 72831C 72868 72996A 72997 72997 72998C 72998C 7889928050 7889942010 7889942010 7889942010 7889942010 7889960070 79915 9010510539 9010510539 9011910578 9011910578 9016740044 9016740044 9016850078 9092901366 9092901366
Part # Description Qty Price
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 2
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-47020C0

ALA49,ASA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71930-47020C0

ALA49,ASA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71931-47020C0

ALA49,ASA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71930-47020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
72996A - COVER, REAR SEAT BACK
72996-50100C0

ALA49,ASA4#,ZSA4#..G

BLACK,TRIM1#,2#,3#,4#

 2
72996-50100C0

ALA49,ASA4#,ZSA4#..X

BLACK,TRIM2#,4#

 2
72996-50100C0

ALA49,ASA4#,ZSA4#..M

BLACK,TRIM1#,2#,4#

 2
79915 - BRACKET, SEAT LEG
79915-42010

ALA49..6FC;ALA49..6F..X

 1
Common parts
78899-28050
78899-42010
78899-60070
90105-10539
90119-10578
90167-40044
90168-50078
90929-01366
Linked diagrams
7152

(1212- )

Click highlighted areas on diagram

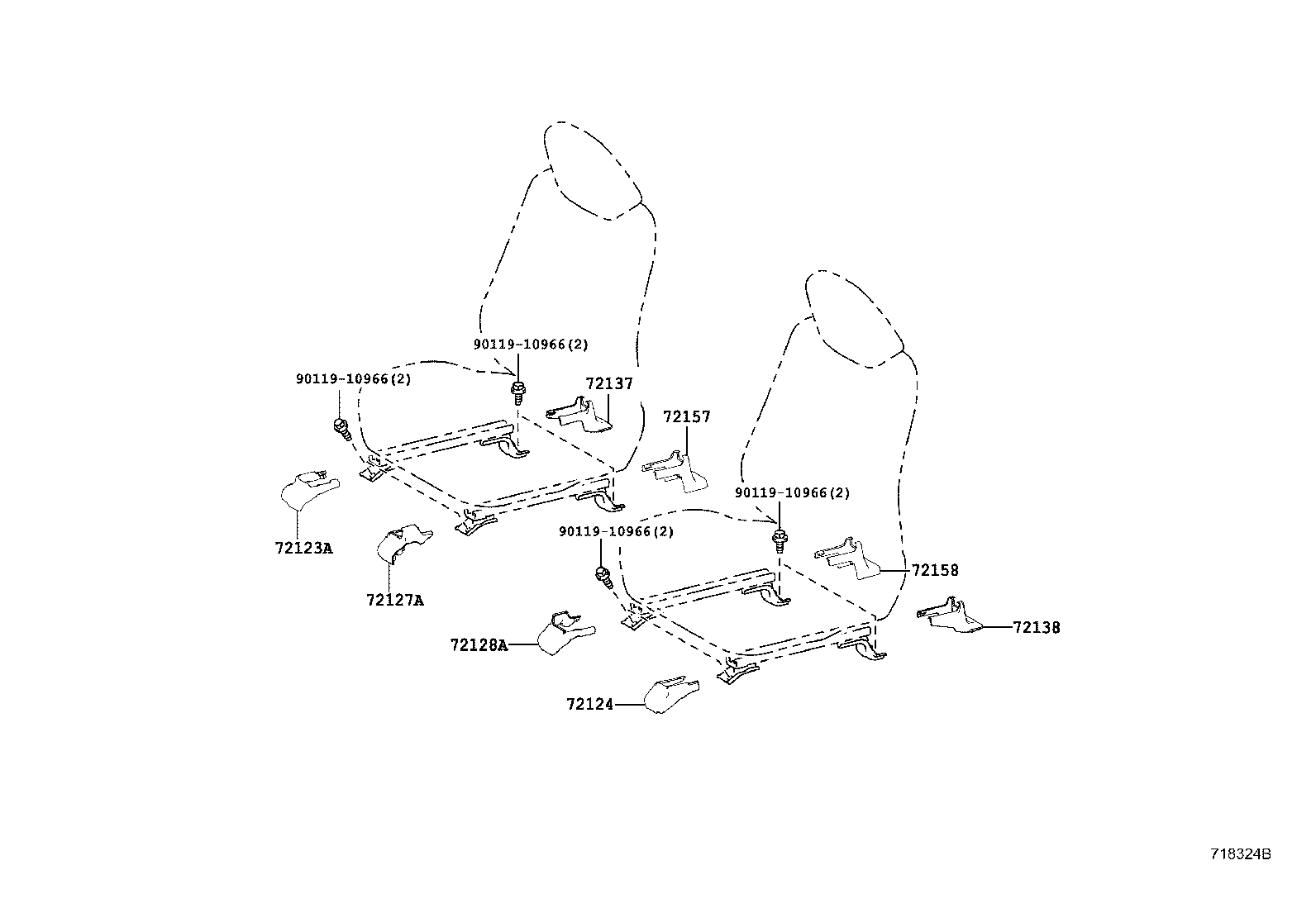

SEAT TRACK COVER(FRONT SEAT)

diagram 72123A 72124 72127A 72128A 72137 72138 72157 72158 9011910966 9011910966 9011910966 9011910966
Part # Description Qty Price
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-42030C0

ALA49..X

BLACK,TRIM2#,4#

 1
72123-42030C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72123-42030C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-42020C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72124-42020C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72124-42020C0

ALA49..X

BLACK,TRIM2#,4#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-42030C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72127-42030C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72127-42030C0

ALA49..X

BLACK,TRIM2#,4#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-42030C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72128-42030C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72128-42030C0

ALA49..X

BLACK,TRIM2#,4#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-42050C0

ALA49..X

BLACK,TRIM2#,4#

 1
72137-42050C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72137-42050C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-42010C0

ALA49..X

BLACK,TRIM2#,4#

 1
72138-42010C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72138-42010C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72158-42020C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
72158-42020C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72158-42020C0

ALA49..X

BLACK,TRIM2#,4#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-42020C0

ALA49..X

BLACK,TRIM2#,4#

 1
72158-42020C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
72158-42020C0

ALA49,AVA4#..(6FC,A)..M

BLACK,TRIM1#,2#,4#

 1
Common parts
90119-10966

ILLUST NO. 2 OF 3(1212- )LHD..G

Click highlighted areas on diagram

DRIVER SEAT, W(POWER SEAT)

diagram 71014S 71052A 7152 7152 71537D 71538B 71587B 71587B 71620S 71640S 71759D 71759D 7176947020 71812D 71812S 71849 71862 71868A 71873A 71874A 72020 72211C 7247674010 7247674010 7247674010 72760D 73920A 73920A 79977A 8202 8202 8202 8401 8401 8401 8401 8401 9011910601 9417060600 9417060600 9418560600 9418560600 9418560600
Part # Description Qty Price
Common parts
71769-47020
72476-74010
90119-10601
94170-60600
94185-60600
Linked diagrams
7152
8202
8401

ILLUST NO. 3 OF 3(1212- )LHD

Click highlighted areas on diagram

PASSENGER SEAT

diagram 71013S 71051A 71053S 7152 7152 71537C 71538A 71587 71587 71610S 71630S 71759C 71759C 71811D 71811R 71848A 71861 72010 72211 72265 72265 72525A 73910A 73910A 79977A 8202 8202 9011910601 9417060600 9417060600 9418560600 9418560600
Part # Description Qty Price
Common parts
90119-10601
94170-60600
94185-60600
Linked diagrams
7152
8202

(1212- )

Click highlighted areas on diagram

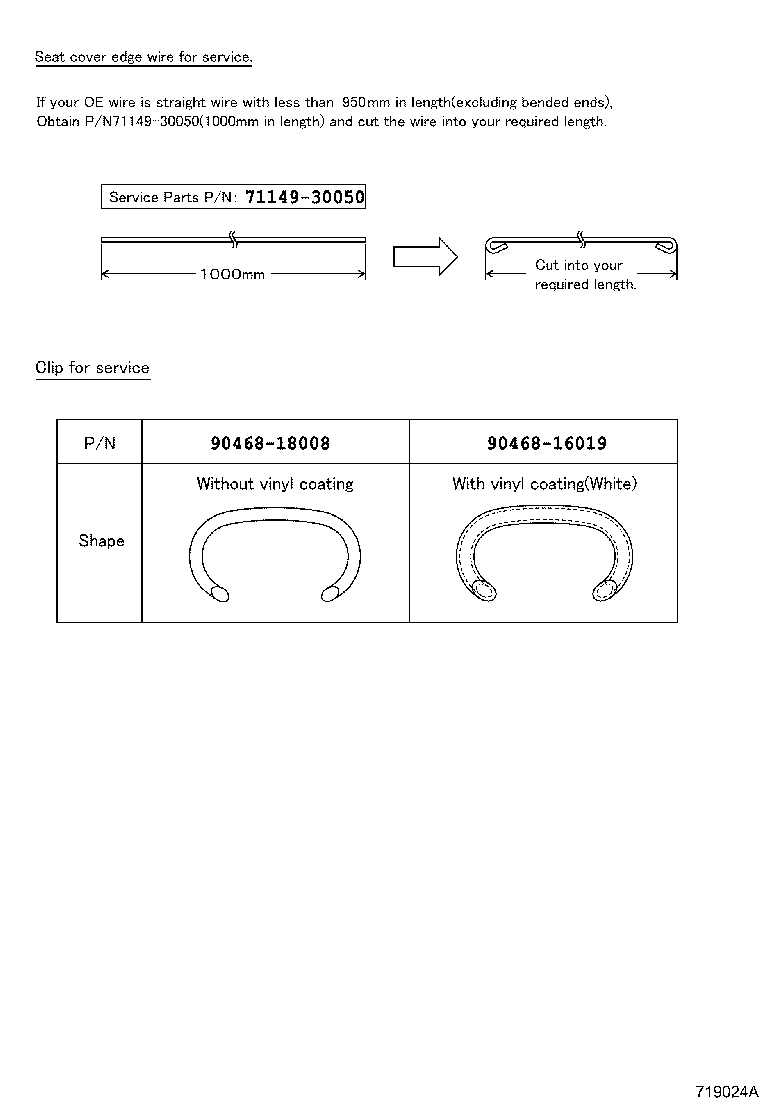

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

(1212- )ALA49,ASA4#,ZSA4#

Click highlighted areas on diagram

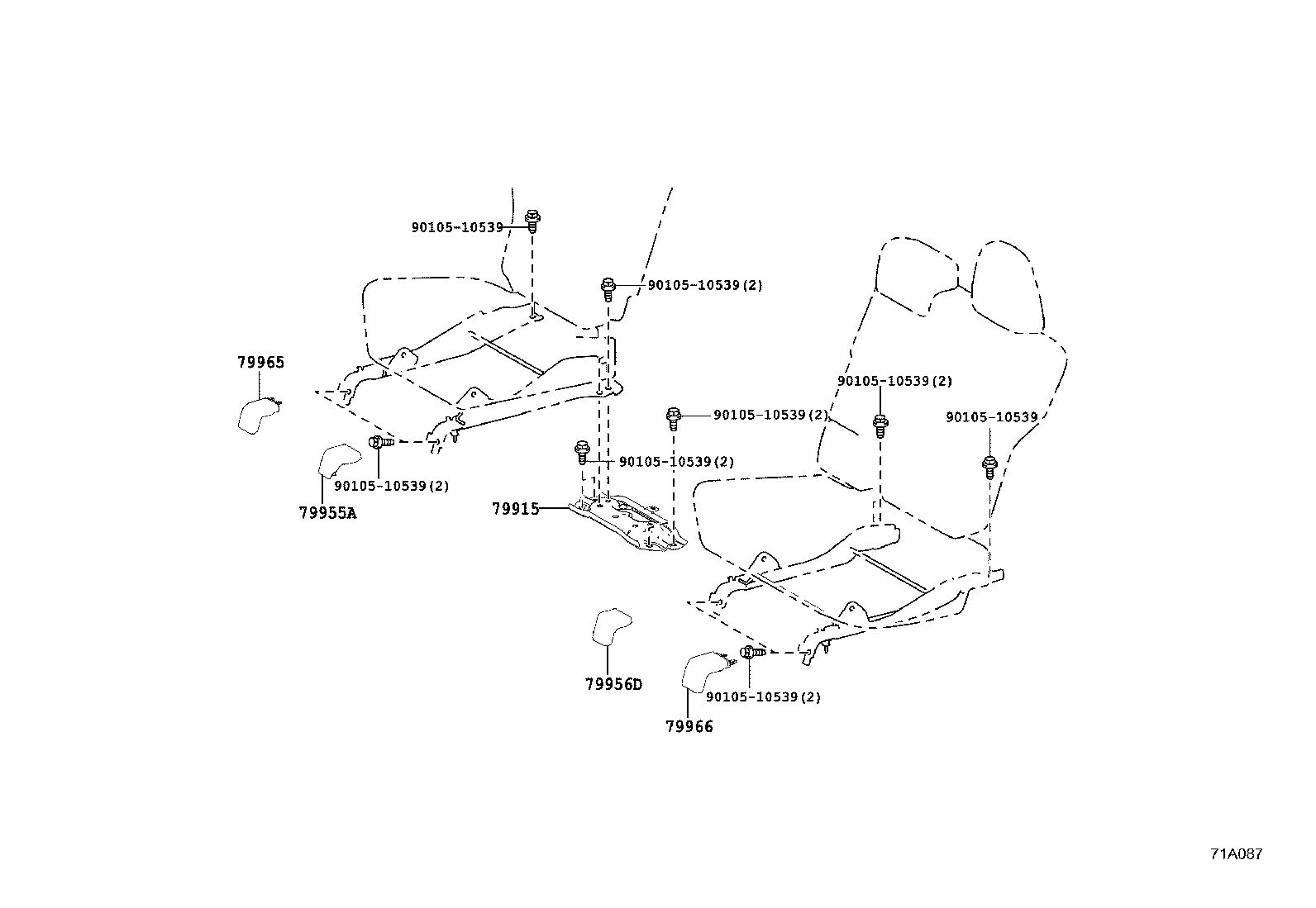

SEAT TRACK COVER(REAR SEAT)

diagram 79915 79955A 79956D 79965 79966 9010510539 9010510539 9010510539 9010510539 9010510539 9010510539 9010510539 9010510539
Part # Description Qty Price
79915 - BRACKET, SEAT LEG
79915-42010

ALA49..6FC;ALA49..6F..X

 1
79955A - COVER, REAR SEAT FRONT BRACKET, RH
79955-42010C0

ALA49..X

BLACK,TRIM2#,4#

 1
79956D - COVER, REAR SEAT FRONT BRACKET, LH
79956-42020C0

ALA49..X

BLACK,TRIM2#,4#

 1
79965 - COVER, REAR SEAT LEG SIDE, NO.2
79965-42040C0

ALA49..X

BLACK,TRIM2#,4#

 1
79966 - COVER, REAR SEAT LEG SIDE, NO.3
79966-42060C0

ALA49..X

BLACK,TRIM2#,4#

 1
Common parts
90105-10539

ILLUST NO. 1 OF 3(1212- )LHD

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71910A 71920A 71930A 71930A 71931 71931 87510K 87510L 87510M 87510N
Part # Description Qty Price
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-42810A4

ALA49,ASA4#,ZSA4#..LHD..X..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GALLANT BEIGE,TRIM4#

 1
71073-42820C4

ALA49,ASA4#,ZSA4#..LHD..X

BLACK,TRIM2#

 1
71073-42810C5

ALA49,ASA4#,ZSA4#..LHD..X..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),BLACK,TRIM2#

 1
71073-42863E3

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

KOGANE,TRIM3#

 1
71073-4286324

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

BLACK/BLACK/ECRU,TRIM2#

 1
71073-42820A4

ALA49,ASA4#,ZSA4#..LHD..X

GALLANT BEIGE,TRIM4#

 1
71073-42863A9

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GALLANT BEIGE,TRIM4#

 1
71073-42892E3

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,KOGANE,TRIM3#

 1
71073-42863B9

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GRAY/GRAY/ECRU,TRIM1#

 1
71073-42F20A0

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GALLANT BEIGE,TRIM4#

 1
71073-42892B5

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GRAY,TRIM1#

 1
71073-42892A7

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GALLANT BEIGE,TRIM4#

 1
71073-4289220

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,BLACK/BLACK/ECRU,TRIM2#

 1
71073-42F30C3

ALA49,ASA4#,ZSA4#..LHD..M

BLACK,TRIM2#

 1
71073-42864A9

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GALLANT BEIGE,TRIM4#

 1
71073-42864B9

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GRAY/GRAY/ECRU,TRIM1#

 1
71073-42F30B0

ALA49,ASA4#,ZSA4#..LHD..M

GRAY,TRIM1#

 1
71073-42F20B0

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GRAY,TRIM1#

 1
71073-42F30A0

ALA49,ASA4#,ZSA4#..LHD..M

GALLANT BEIGE,TRIM4#

 1
71073-4286424

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

BLACK/BLACK/ECRU,TRIM2#

 1
71073-42893A7

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GALLANT BEIGE,TRIM4#

 1
71073-4289320

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,BLACK/BLACK/ECRU,TRIM2#

 1
71073-42864E3

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

KOGANE,TRIM3#

 1
71073-42893B5

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GRAY,TRIM1#

 1
71073-42893E3

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,KOGANE,TRIM3#

 1
71073-42F20C3

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-42370A4

ALA49,ASA4#,ZSA4#..LHD..X..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GALLANT BEIGE,TRIM4#

 1
71074-42423E3

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

KOGANE,TRIM3#

 1
71074-4242301

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GALLANT BEIGE,TRIM4#

 1
71074-4245220

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,BLACK/BLACK/ECRU,TRIM2#

 1
71074-42452A7

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GALLANT BEIGE,TRIM4#

 1
71074-42452B5

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GRAY,TRIM1#

 1
71074-42452E3

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,KOGANE,TRIM3#

 1
71074-42380A4

ALA49,ASA4#,ZSA4#..LHD..X

GALLANT BEIGE,TRIM4#

 1
71074-4242326

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

BLACK/BLACK/ECRU,TRIM2#

 1
71074-42423P0

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GRAY/GRAY/ECRU,TRIM1#

 1
71074-42760C3

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),BLACK,TRIM2#

 1
71074-42760A0

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GALLANT BEIGE,TRIM4#

 1
71074-42380C4

ALA49,ASA4#,ZSA4#..LHD..X

BLACK,TRIM2#

 1
71074-42760B0

ALA49,ASA4#,ZSA4#..LHD..M..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),GRAY,TRIM1#

 1
71074-42370C5

ALA49,ASA4#,ZSA4#..LHD..X..GEN

SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),BLACK,TRIM2#

 1
71074-42770B0

ALA49,ASA4#,ZSA4#..LHD..M

GRAY,TRIM1#

 1
71074-42770A0

ALA49,ASA4#,ZSA4#..LHD..M

GALLANT BEIGE,TRIM4#

 1
71074-42770C3

ALA49,ASA4#,ZSA4#..LHD..M

BLACK,TRIM2#

 1
71074-42424E3

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

KOGANE,TRIM3#

 1
71074-42453E3

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,KOGANE,TRIM3#

 1
71074-4242401

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GALLANT BEIGE,TRIM4#

 1
71074-4242426

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

BLACK/BLACK/ECRU,TRIM2#

 1
71074-42424P0

ALA49,ASA4#,AVA4#,ZSA4#..G..(GEN,SA)

GRAY/GRAY/ECRU,TRIM1#

 1
71074-42453A7

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GALLANT BEIGE,TRIM4#

 1
71074-4245320

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,BLACK/BLACK/ECRU,TRIM2#

 1
71074-42453B5

ALA49,ASA4#,AVA4#,ZSA4#..LHD..G..GEN

SEAT HEATER-WITHOUT,GRAY,TRIM1#

 1
71930A - SUPPORT ASSY, FRONT SEAT HEADREST
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
71930A - SUPPORT ASSY, FRONT SEAT HEADREST
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,ZSA4#..X

W(LOCK),BLACK,TRIM2#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W/O(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,AVA4#,ZSA4#..M

W/O(LOCK),BLACK,TRIM1#,2#,4#

 1
71932-42020C0

ALA49,ASA4#,AVA4#,ZSA4#..G

W(LOCK),BLACK,TRIM1#,2#,3#,4#

 1
71932-42030C0

ALA49,ASA4#,ZSA4#..X

W/O(LOCK),BLACK,TRIM2#,4#

 1
