ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

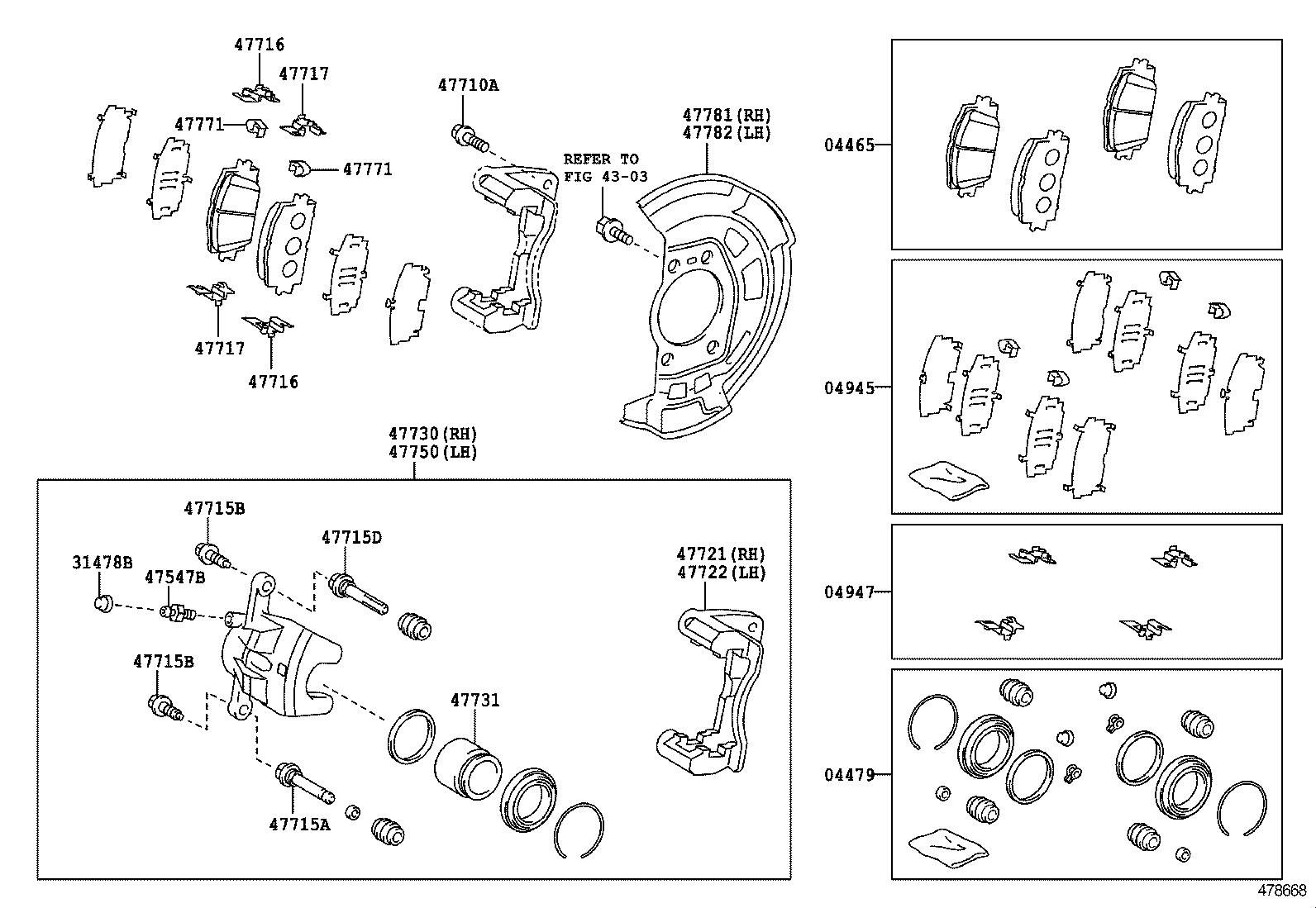

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715B 47715B 47715D 47716 47716 47717 47717 47721 47722 47730 47731 47750 47771 47771 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-42180

ALA49..6F..X..(ARL,GEN);ALA49,AVA4#..(6FC,A)..(ARL,GEN)

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-33100

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-42060

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-42050

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ALA49..6F..X;ALA49,AVA4#..6FC,A

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-12A10

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-52190

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-42091

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-42091

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-42091

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12A70

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-42091

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-52191

ALA49..6F..X;ALA49,AVA4#..6FC,A

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42040

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42040

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
Linked diagrams
4303
