ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ALA49,ASA4#,ZSA4#..LHD

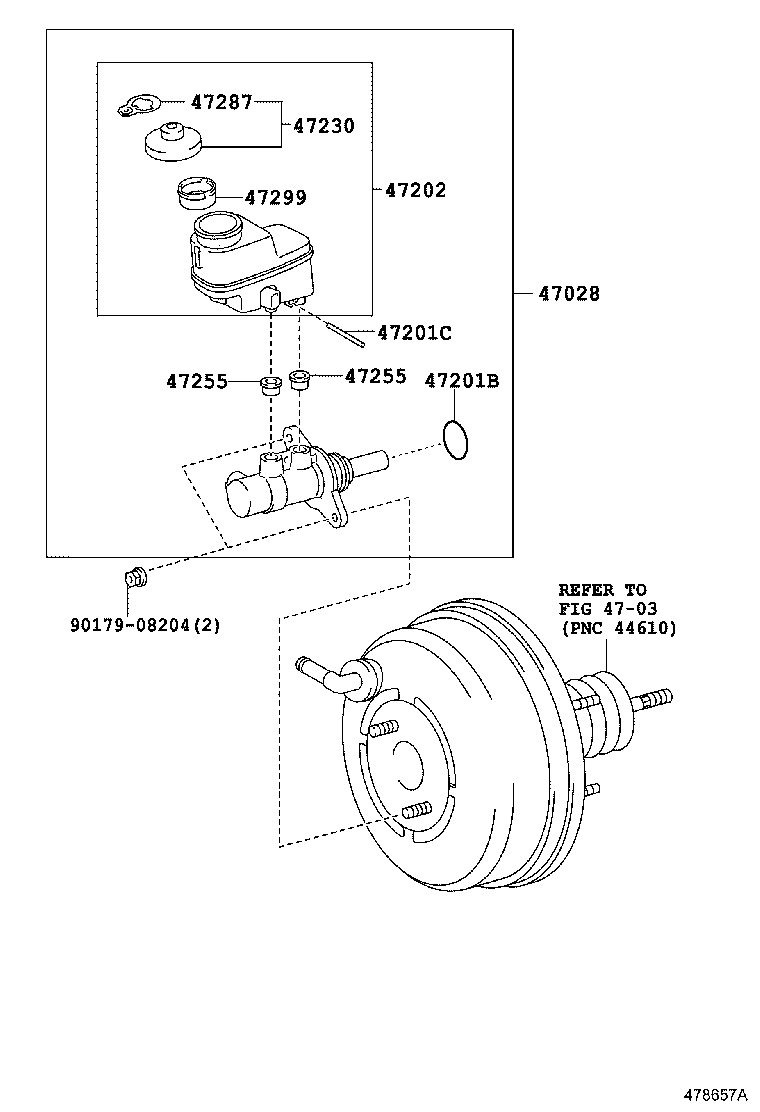

Click highlighted areas on diagram

diagram 47028 4703 47201B 47201C 47202 47230 47255 47255 47287 47299 9017908204
Part # Description Qty Price
47028 - CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE
47201-42392

ALA49..6F..X..GEN

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH002

ALA49..6FC;ALA49..6F..X

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

ALA49..6FC;ALA49..6F..X

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-42110

ALA49..6F..X

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ALA49..6FC;ALA49..6F..X

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

ALA49..6FC;ALA49..6F..X

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90029-48001

ALA49..6FC;ALA49..6F..X

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ALA49..6FC;ALA49..6F..X

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010

ALA49..6FC;ALA49..6F..X

 1
Common parts
90179-08204
Linked diagrams
4703
