ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )LHD

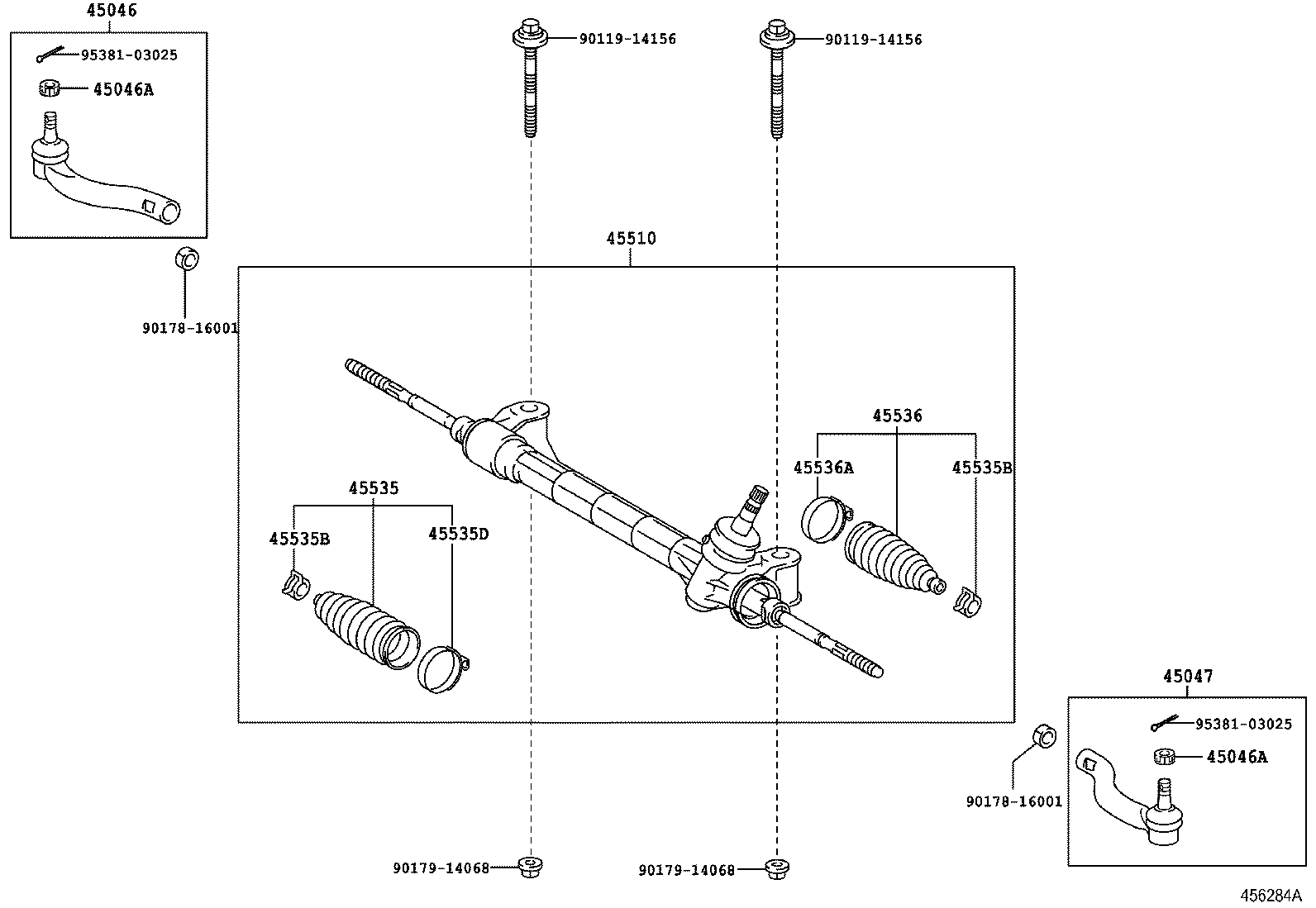

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 9011914156 9011914156 9017816001 9017816001 9017914068 9017914068 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-49195

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49135

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45510 - GEAR ASSY, STEERING
45510-42160

ASA44..LHD..G;ALA49,ASA42,ZSA4#..LHD..G..GEN

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J

 1
45510-42170

ASA44..LHD..G;ALA49,ASA42,ZSA4#..LHD..G..GEN

 1
45510-42160

ALA49,ASA4#,ZSA4#..LHD..(M,X)

 1
45510-42161

ALA49..(M,X)..GEN

 1
45510-42171

ALA49..G..GEN

 1
45510-42161

ALA49..G..GEN

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J

 1
45535 - BOOT, STEERING RACK, NO.1
45535-49045

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45536 - BOOT, STEERING RACK, NO.2
45535-49045

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-42010

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
Common parts
90119-14156
90178-16001
90179-14068
95381-03025
