ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )LHD

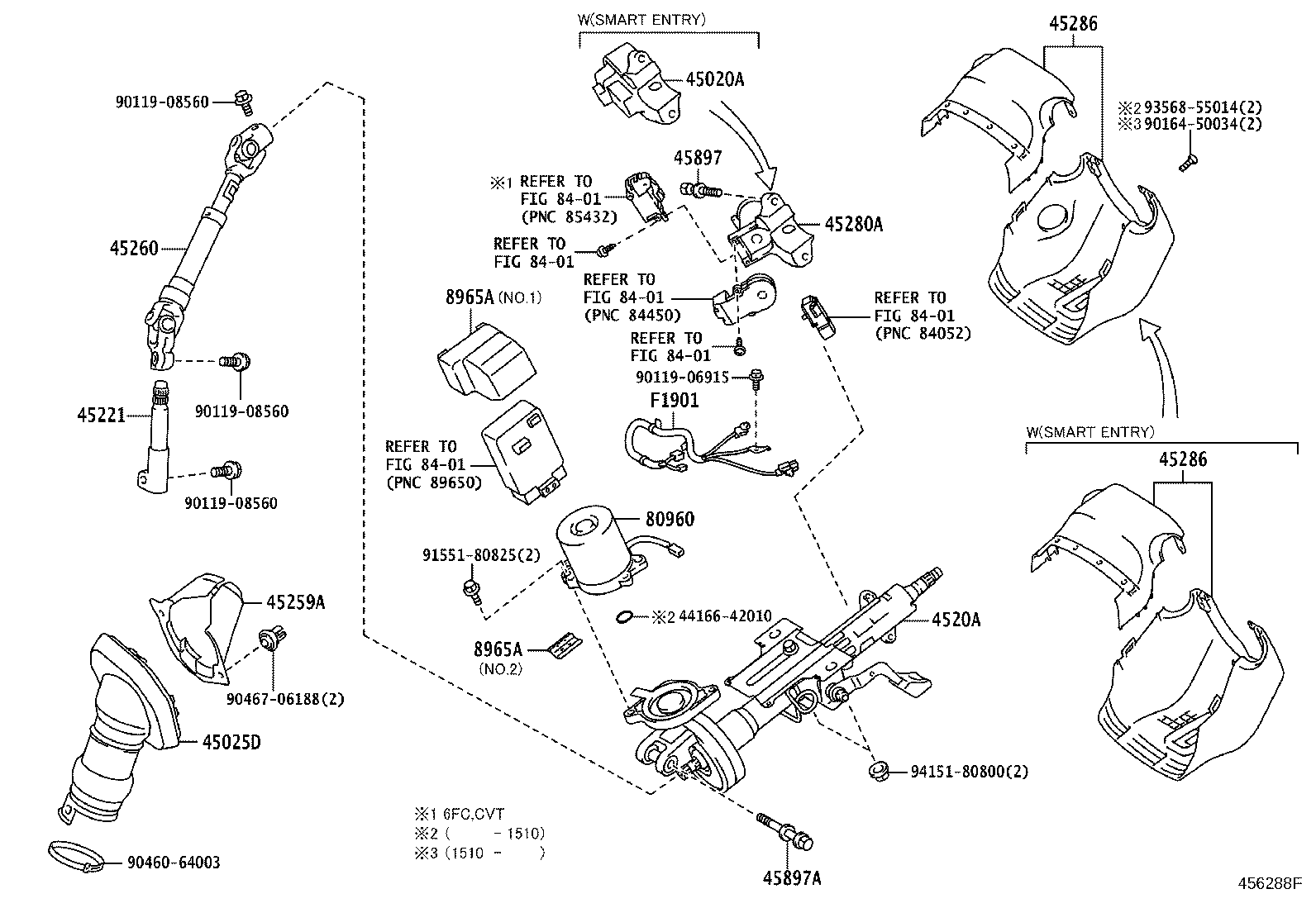

Click highlighted areas on diagram

diagram 4416642010 45020A 45025D 4520A 45221 45259A 45260 45280A 45286 45286 45897 45897A 80960 8401 8401 8401 8401 8401 8401 8965A 8965A 9011906915 9011908560 9011908560 9011908560 9016450034 9046064003 9046706188 9155180825 9356855014 9415180800 F1901
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42080

ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-42080

ALA49..X..GEN;ALA49..6FC..M..GEN

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-42090

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-42020

ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-42110

ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42200

ALA49..6F..X..GEN

 1
45286 - COVER, STEERING COLUMN
45286-42921C0

ALA49..X

BLACK,TRIM2#,4#

 1
45286-42920C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
45286 - COVER, STEERING COLUMN
45286-42921C0

ALA49..X

BLACK,TRIM2#,4#

 1
45286-42920C0

ALA49,AVA4#..(6FC,A)..G

BLACK,TRIM1#,2#,3#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-33040

ALA49..6F..X;ALA49,AVA4#..6FC,A

NO.2

 1
8965A-33030

ALA49..6F..X;ALA49,AVA4#..6FC,A

NO.1

 1
8965A - PROTECTOR, POWER STEERING COMPUTER
8965A-33040

ALA49..6F..X;ALA49,AVA4#..6FC,A

NO.2

 1
8965A-33030

ALA49..6F..X;ALA49,AVA4#..6FC,A

NO.1

 1
F1901 - WIRE SUB-ASSY, COMPUTER
F1901-42011

ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN

 1
Common parts
44166-42010
90119-06915
90119-08560
90164-50034
90460-64003
90467-06188
91551-80825
93568-55014
94151-80800
Linked diagrams
8401
