ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

Click highlighted areas on diagram

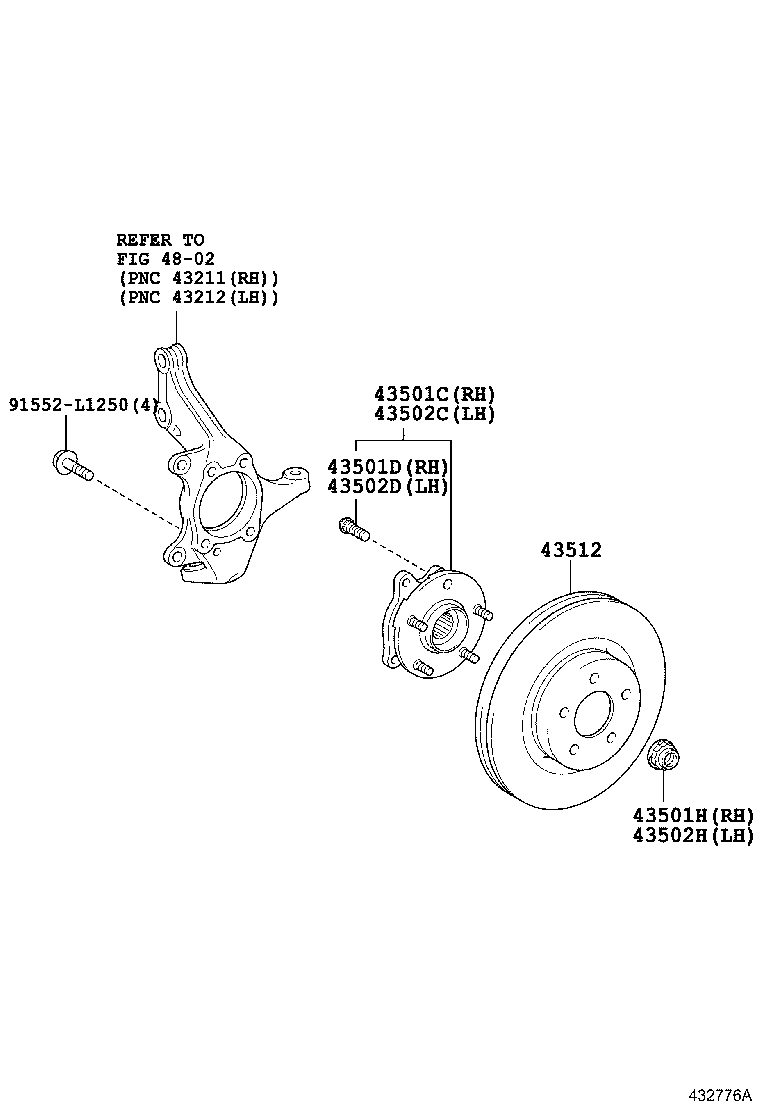

diagram 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 91552L1250
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

ALA49..6F..X;ALA49,AVA4#..6FC,A

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-42020

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

ALA49..6F..X;ALA49,AVA4#..6FC,A

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

ALA49..6F..X;ALA49,AVA4#..6FC,A

 1
43512 - DISC, FRONT
43512-42050

ALA49..6F..X..(ARL,GEN);ALA49,AVA4#..(6FC,A)..(ARL,GEN)

 2
Common parts
91552-L1250
Linked diagrams
4802
