ALA49L-ANFXY (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )ALA49,ASA44,ZSA44..6F,6FC,A

Click highlighted areas on diagram

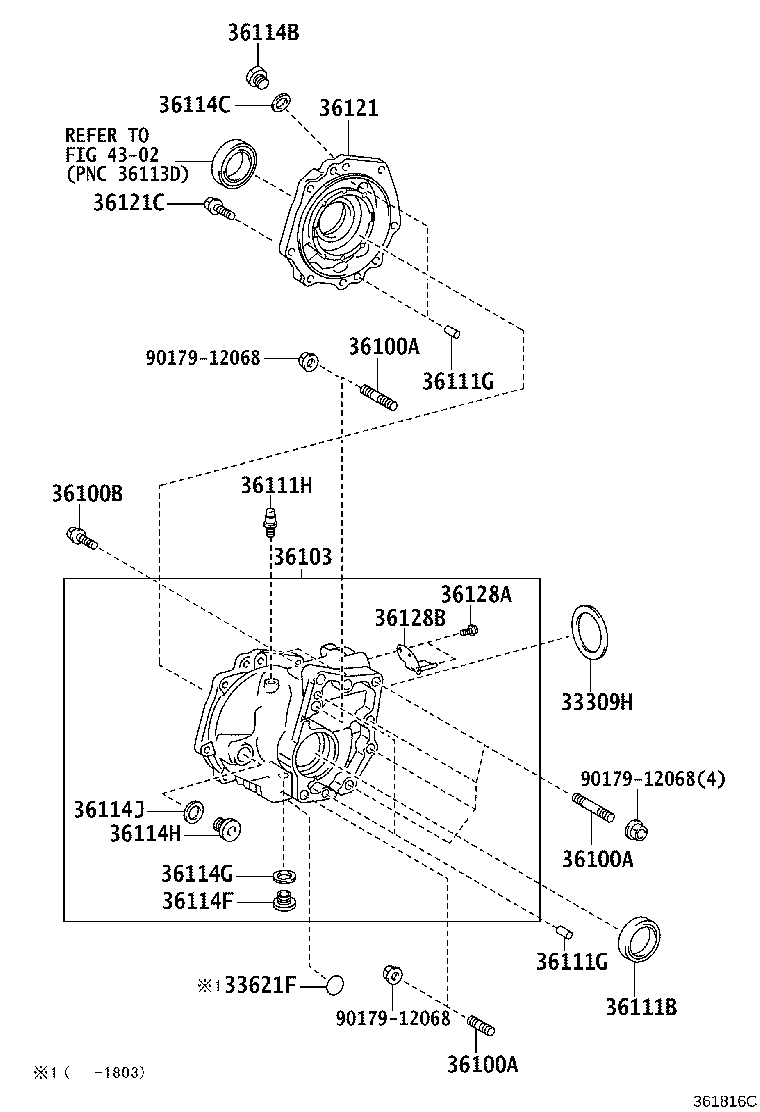

diagram 33309H 33621F 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 4302 9017912068 9017912068 9017912068
Part # Description Qty Price
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-52040

ALA49..6FC;ALA49..6F..X

T=1.08,MARK 04

 1
36275-52080

ALA49..6FC;ALA49..6F..X

T=1.16,MARK 08

 1
36275-52060

ALA49..6FC;ALA49..6F..X

T=1.12,MARK 06

 1
36275-52010

ALA49..6FC;ALA49..6F..X

T=1.02,MARK 01

 1
36275-52030

ALA49..6FC;ALA49..6F..X

T=1.06,MARK 03

 1
36275-52070

ALA49..6FC;ALA49..6F..X

T=1.14,MARK 07

 1
36275-52100

ALA49..6FC;ALA49..6F..X

T=1.20,MARK 10

 1
36275-52170

ALA49..6FC;ALA49..6F..X

T=1.34,MARK 17

 1
36275-52020

ALA49..6FC;ALA49..6F..X

T=1.04,MARK 02

 1
36275-52090

ALA49..6FC;ALA49..6F..X

T=1.18,MARK 09

 1
36275-52230

ALA49..6FC;ALA49..6F..X

T=1.46,MARK 23

 1
36275-52160

ALA49..6FC;ALA49..6F..X

T=1.32,MARK 16

 1
36275-52130

ALA49..6FC;ALA49..6F..X

T=1.26,MARK 13

 1
36275-52110

ALA49..6FC;ALA49..6F..X

T=1.22,MARK 11

 1
36275-52200

ALA49..6FC;ALA49..6F..X

T=1.40,MARK 20

 1
36275-52140

ALA49..6FC;ALA49..6F..X

T=1.28,MARK 14

 1
36275-52210

ALA49..6FC;ALA49..6F..X

T=1.42,MARK 21

 1
36275-52050

ALA49..6FC;ALA49..6F..X

T=1.10,MARK 05

 1
36275-52250

ALA49..6FC;ALA49..6F..X

T=1.50,MARK 25

 1
36275-52270

ALA49..6FC;ALA49..6F..X

T=1.54,MARK 27

 1
36275-52280

ALA49..6FC;ALA49..6F..X

T=1.56,MARK 28

 1
36275-52220

ALA49..6FC;ALA49..6F..X

T=1.44,MARK 22

 1
36275-52190

ALA49..6FC;ALA49..6F..X

T=1.38,MARK 19

 1
36275-52260

ALA49..6FC;ALA49..6F..X

T=1.52,MARK 26

 1
36275-52240

ALA49..6FC;ALA49..6F..X

T=1.48,MARK 24

 1
36275-52180

ALA49..6FC;ALA49..6F..X

T=1.36,MARK 18

 1
36275-52150

ALA49..6FC;ALA49..6F..X

T=1.30,MARK 15

 1
36275-52120

ALA49..6FC;ALA49..6F..X

T=1.24,MARK 12

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

ALA49,ASA44,ZSA44

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ALA49..6FC;ALA49..6F..X

S=19 & 19,L=47

 1
90116-12028

ALA49..6FC;ALA49..6F..X

S=22 & 22,L=69

 1
90116-12041

ALA49..6FC;ALA49..6F..X

S=30 & 22,L=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ALA49..6FC;ALA49..6F..X

S=19 & 19,L=47

 1
90116-12028

ALA49..6FC;ALA49..6F..X

S=22 & 22,L=69

 1
90116-12041

ALA49..6FC;ALA49..6F..X

S=30 & 22,L=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ALA49..6FC;ALA49..6F..X

S=19 & 19,L=47

 1
90116-12028

ALA49..6FC;ALA49..6F..X

S=22 & 22,L=69

 1
90116-12041

ALA49..6FC;ALA49..6F..X

S=30 & 22,L=64

 4
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

ALA49..6FC;ALA49..6F..X

*12-1.25PX53-35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-42070

ALA49

 1
36103-42041

ALA49,ASA44,ZSA44..6F,6FC,A

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

ALA49..6FC;ALA49..6F..X

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ALA49..6FC;ALA49..6F..X

L=20,OD=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ALA49..6FC;ALA49..6F..X

L=20,OD=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

ALA49..6FC;ALA49..6F..X

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

ALA49..6FC;ALA49..6F..X

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

ALA49..6FC;ALA49..6F..X

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

ALA49..6FC;ALA49..6F..X

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

ALA49..6FC;ALA49..6F..X

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

ALA49..6FC;ALA49..6F..X

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

ALA49..6FC;ALA49..6F..X

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

ALA49..6FC;ALA49..6F..X

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

ALA49..6FC;ALA49..6F..X

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

ALA49..6FC;ALA49..6F..X

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

ALA49..6FC;ALA49..6F..X

 1
Common parts
90179-12068
Linked diagrams
4302
