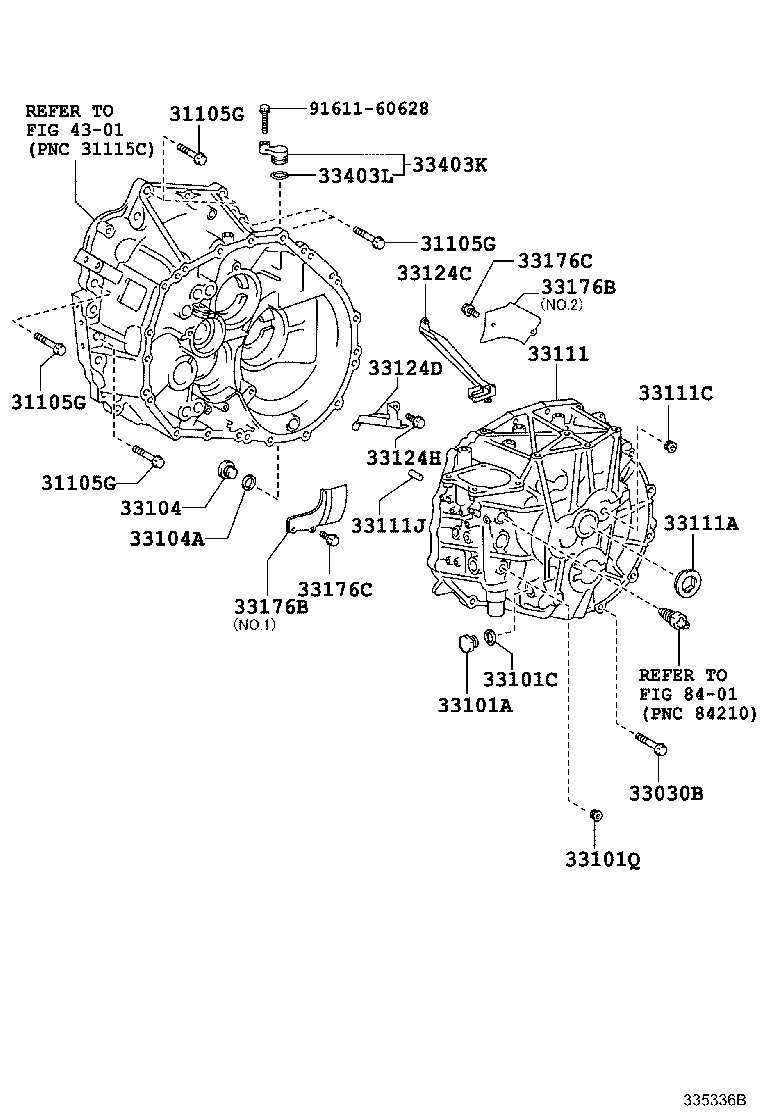

Toyota Rav4 ALA49 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12252	ALA49,ASA4#..6F *12-1.25PX60-30,NO.2	10/2015 - 10/2018	2
91512-61060	ALA49,ASA4#..6F *10-1.25PX60-30,NO.3	10/2015 - 10/2018	2
91512-61065	ALA49,ASA4#..6F *10-1.25PX65-30,NO.4	10/2015 - 10/2018	1
90119-12042	ALA49..6F *12-1.25PX75-30,NO.1	10/2015 - 10/2018	1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12252	ALA49,ASA4#..6F *12-1.25PX60-30,NO.2	10/2015 - 10/2018	2
91512-61060	ALA49,ASA4#..6F *10-1.25PX60-30,NO.3	10/2015 - 10/2018	2
91512-61065	ALA49,ASA4#..6F *10-1.25PX65-30,NO.4	10/2015 - 10/2018	1
90119-12042	ALA49..6F *12-1.25PX75-30,NO.1	10/2015 - 10/2018	1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12252	ALA49,ASA4#..6F *12-1.25PX60-30,NO.2	10/2015 - 10/2018	2
91512-61060	ALA49,ASA4#..6F *10-1.25PX60-30,NO.3	10/2015 - 10/2018	2
91512-61065	ALA49,ASA4#..6F *10-1.25PX65-30,NO.4	10/2015 - 10/2018	1
90119-12042	ALA49..6F *12-1.25PX75-30,NO.1	10/2015 - 10/2018	1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12252	ALA49,ASA4#..6F *12-1.25PX60-30,NO.2	10/2015 - 10/2018	2
91512-61060	ALA49,ASA4#..6F *10-1.25PX60-30,NO.3	10/2015 - 10/2018	2
91512-61065	ALA49,ASA4#..6F *10-1.25PX65-30,NO.4	10/2015 - 10/2018	1
90119-12042	ALA49..6F *12-1.25PX75-30,NO.1	10/2015 - 10/2018	1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086	ALA49..6F *8-1.25PX45-27.5	10/2015 - 10/2018	18
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033	ALA49..6F	10/2015 - 10/2018	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	ALA49..6F	10/2015 - 10/2018	1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-18019	ALA49..6F	10/2015 - 10/2018	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	ALA49..6F	10/2015 - 10/2018	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	ALA49..6F	10/2015 - 10/2018	1
33111 - CASE, MANUAL TRANSMISSION
33111-42060	ALA49..6F	10/2015 - 10/2018	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-42002	ALA49..6F	10/2015 - 10/2018	1
33111C - PLUG(FOR TRANSMISSION CASE)
90341-12004	ALA49..6F OD=18	10/2015 - 10/2018	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ALA49..6F L=23,OD=8	10/2015 - 10/2018	4
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20040	ALA49..6F	10/2015 - 10/2018	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-42010	ALA49..6F	10/2015 - 10/2018	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-B0616	ALA49..6F	10/2015 - 10/2018	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20020	ALA49..6F NO.2	10/2015 - 10/2018	1
33176-20010	ALA49..6F NO.1	10/2015 - 10/2018	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20020	ALA49..6F NO.2	10/2015 - 10/2018	1
33176-20010	ALA49..6F NO.1	10/2015 - 10/2018	1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91611-B0616	ALA49..6F	10/2015 - 10/2018	4
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91611-B0616	ALA49..6F	10/2015 - 10/2018	4
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20230	ALA49..6F..X	10/2015 - 10/2018	1
33403L - RING, O
96711-24018	ALA49..6F..X	10/2015 - 10/2018	1
Common parts
91611-60628
Linked diagrams
4301
8401

ALA49L-ANFXY (2015)

(1510- )ALA49..6F
