ALA49L-ANFXY (2015)
Toyota Rav4
Production
Oct 2015
-
Oct 2018
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

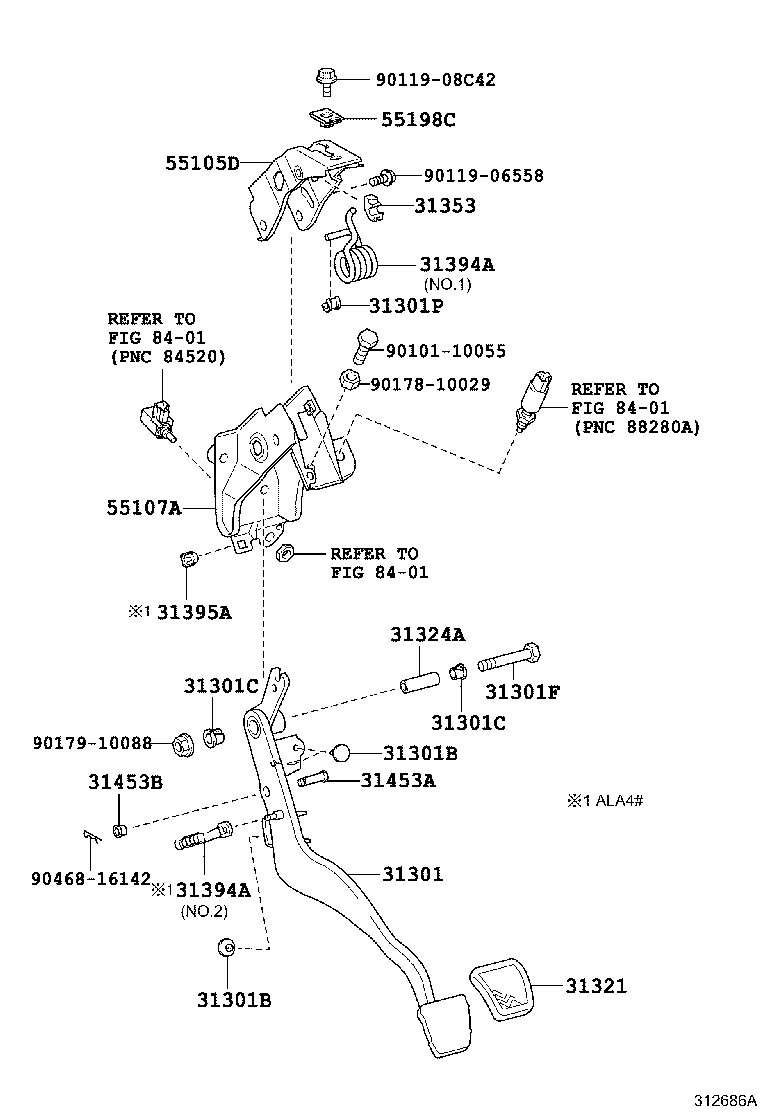

ILLUST NO. 1 OF 2(1510- )ALA49..6F..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-42081 |
ALA49..6F..GEN |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ALA49..6F..GEN |
3 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ALA49..6F..GEN |
3 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ALA49..6F..X |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ALA49..6F..X |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10039 |
ALA49..6F..X |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
ALA49..6F..X..GEN |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
ALA49..6F..X |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
ALA49..6F..X |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
ALA49..6F..X |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-12070 |
ALA49..6F..GEN NO.1 |
1 | ||
| 31394-42050 |
ALA49..6F..GEN NO.2 |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-12070 |
ALA49..6F..GEN NO.1 |
1 | ||
| 31394-42050 |
ALA49..6F..GEN NO.2 |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
ALA49..6F..GEN |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08256 |
ALA49..6F..X..GEN L=36.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
ALA49..6F..X..GEN |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-42010 |
ALA49..6F..X..GEN |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-42091 |
ALA49..6F..X..GEN |
1 | ||
| 55198C - HOLDER, BRAKE AWAY MOUNTING BOLT | ||||
| 55198-13010 |
ALA49..6F..X..GEN |
1 | ||
| Common parts | ||||
| 90101-10055 | ||||
| 90119-06558 | ||||
| 90119-08C42 | ||||
| 90178-10029 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1510- )ALA49..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E29 |
ALA49..6F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-42140 |
ALA49..6F..X..GEN |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D17 |
ALA49..6F..X..GEN |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D17 |
ALA49..6F..X..GEN |
2 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-42070 |
ALA49..6F..GEN |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-42101 |
ALA49..6F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-42090 |
ALA49..6F..X |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20460 |
ALA49..6F |
1 | ||
| Common parts | ||||
| 90461-06056 | ||||
| 90461-08652 | ||||
| 90461-08715 | ||||
| 90468-08040 | ||||
| 91611-60814 | ||||
| 91651-40620 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
| 7454 | ||||
