ALA49L-ANFXY (2015)
Toyota Rav4
Production
Oct 2015
-
Oct 2018
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )2AD#

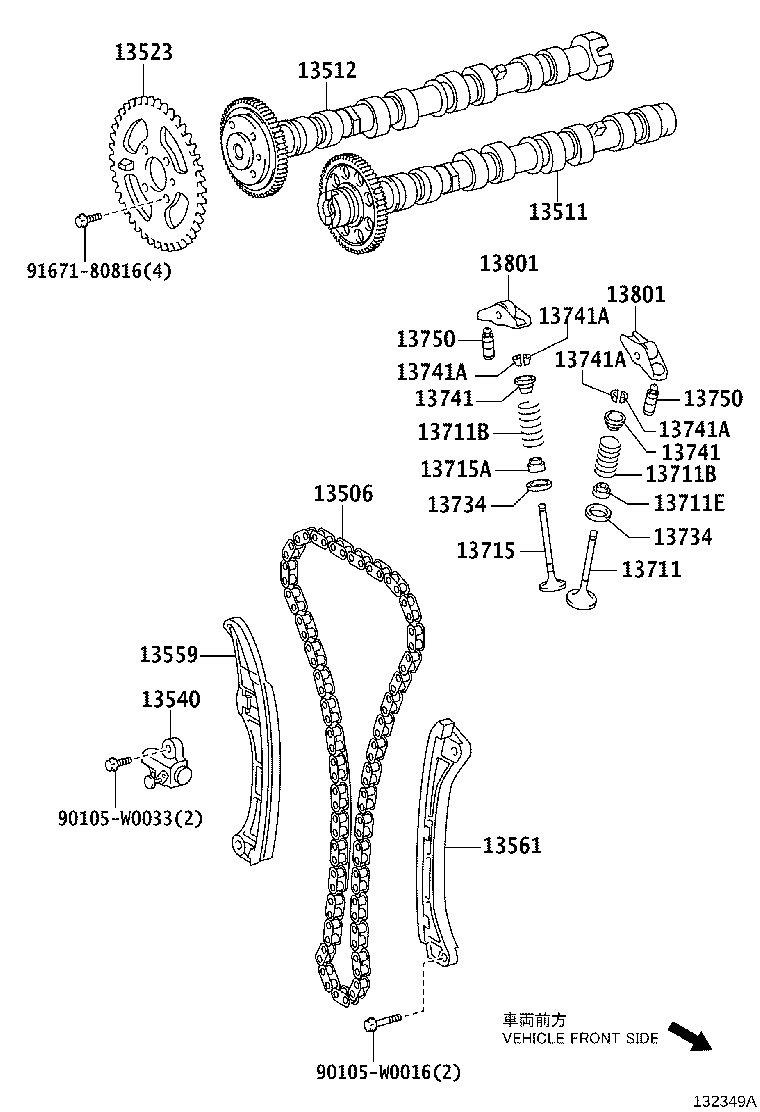

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0R010 |
2AD#..ALA49 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0R010 |
2AD#..ALA49 |
1 | ||
| 13501-0R011 |
2AD#..ALA49 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0R012 |
2AD#..ALA49 |
1 | ||
| 13502-0R011 |
2AD#..ALA49 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0R011 |
2AD#..ALA49 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0R010 |
2AD#..ALA49 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0R020 |
2AD#..ALA49 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0R020 |
2AD#..ALA49 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0R010 |
2AD#..ALA49 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28039 |
2AD#..ALA49 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28039 |
2AD#..ALA49 |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-W2001 |
2AD#..ALA49 (L) |
8 | ||
| 90913-02124 |
2AD#..ALA49 (J) |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0R010 |
2AD#..ALA49 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02124 |
2AD#..ALA49 (J) |
8 | ||
| 90913-W2001 |
2AD#..ALA49 (L) |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-33020 |
2AD#..ALA49 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-33020 |
2AD#..ALA49 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-33020 |
2AD#..ALA49 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-33020 |
2AD#..ALA49 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
2AD#..ALA49 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
2AD#..ALA49 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
2AD#..ALA49 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
2AD#..ALA49 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0R010 |
2AD#..ALA49 |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0R010 |
2AD#..ALA49 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0R010 |
2AD#..ALA49 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0R010 |
2AD#..ALA49 |
16 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0033 | ||||
| 91671-80816 | ||||
