ALA49L-ANFXY (2015)
Toyota Rav4
Production
Oct 2015
-
Oct 2018
Engine
2ADFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )2ADFTV..6F

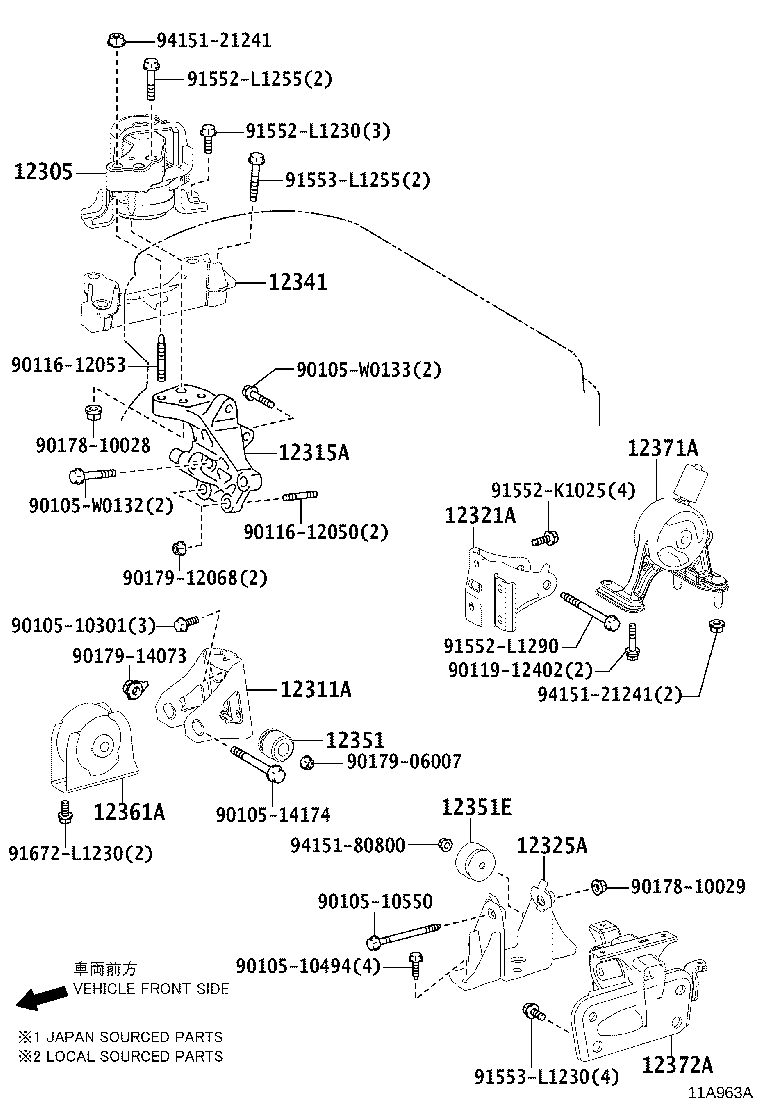

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-26072 |
2ADFTV..ALA49..6F |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-26130 |
2ADFTV..ALA49..6F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0R020 |
2AD#..ALA49 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-26060 |
2ADFTV..ALA49..6F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-26030 |
2ADFTV..ALA49..6F |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-26011 |
2ADFTV..ALA49..X;2ADFTV..ALA49..6FC..(G,M);2ADFHV,2ARFXE..ALA49,AVA4# |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-63010 |
2ADFTV..ALA49..6F |
1 | ||
| 12351E - DAMPER, ENGINE MOUNTING | ||||
| 12351-22090 |
2ADFTV..ALA49..6F |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-26120 |
2AD#..ALA49 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-26070 |
2ADFTV..ALA49..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-26050 |
2ADFTV..ALA49..6F |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14174 | ||||
| 90105-W0132 | ||||
| 90105-W0133 | ||||
| 90116-12050 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-06007 | ||||
| 90179-12068 | ||||
| 90179-14073 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91552-L1290 | ||||
| 91553-L1230 | ||||
| 91553-L1255 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| 94151-80800 | ||||
