ALA30R-AWFGXW (2005)

Toyota Rav4

Production Nov 2005 - Dec 2008
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA33,GSA33..ARL,GCC,GEN ; (0511-)ACA30,31,38,ALA30..4FC,5F,6F..EUR,

Click highlighted areas on diagram

W(BACK DOOR SPARE TIRE)

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81271 81275 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81270-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81270-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81270-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81270-42080

ACA3#,ALA30..ARL,EUR,GEN

 1
81270-42080

ACA3#,ALA30..ARL,EUR,GEN

 1
81270-42081

ACA3#,ALA30,GSA33..ARL,EUR,GEN

 1
81270-42081

ACA3#,ALA30,GSA33..ARL,EUR,GEN

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81270-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81270-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81270-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81270-42080

ACA3#,ALA30..ARL,EUR,GEN

 1
81270-42080

ACA3#,ALA30..ARL,EUR,GEN

 1
81270-42081

ACA3#,ALA30,GSA33..ARL,EUR,GEN

 1
81270-42081

ACA3#,ALA30,GSA33..ARL,EUR,GEN

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ACA30,31,ALA30

12V 5W

 2
99132-12050

ACA30,31,ALA30

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ACA30,31,ALA30

12V 5W

 2
99132-12050

ACA30,31,ALA30

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ACA30,31,ALA30

12V 5W

 2
99132-12050

ACA30,31,ALA30

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-42050

ACA30,31,ALA30

 2
81271-42050

ACA30,31,ALA30

 2
81271 - LENS, LICENSE PLATE LAMP
81271-42050

ACA30,31,ALA30

 2
81271-42050

ACA30,31,ALA30

 2
81271 - LENS, LICENSE PLATE LAMP
81271-42050

ACA30,31,ALA30

 2
81271-42050

ACA30,31,ALA30

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81275-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81275-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81275-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81275-42080

ACA30,31,ALA30

 1
81275-42080

ACA30,31,ALA30

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81275-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81275-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81275-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81275-42080

ACA30,31,ALA30

 1
81275-42080

ACA30,31,ALA30

 1

(0511-0812)DCRL ; (0701-0812)ACA30,ALA30..G ; (0812- )ALA30,ZSA3#..G..ATYPE ; (0

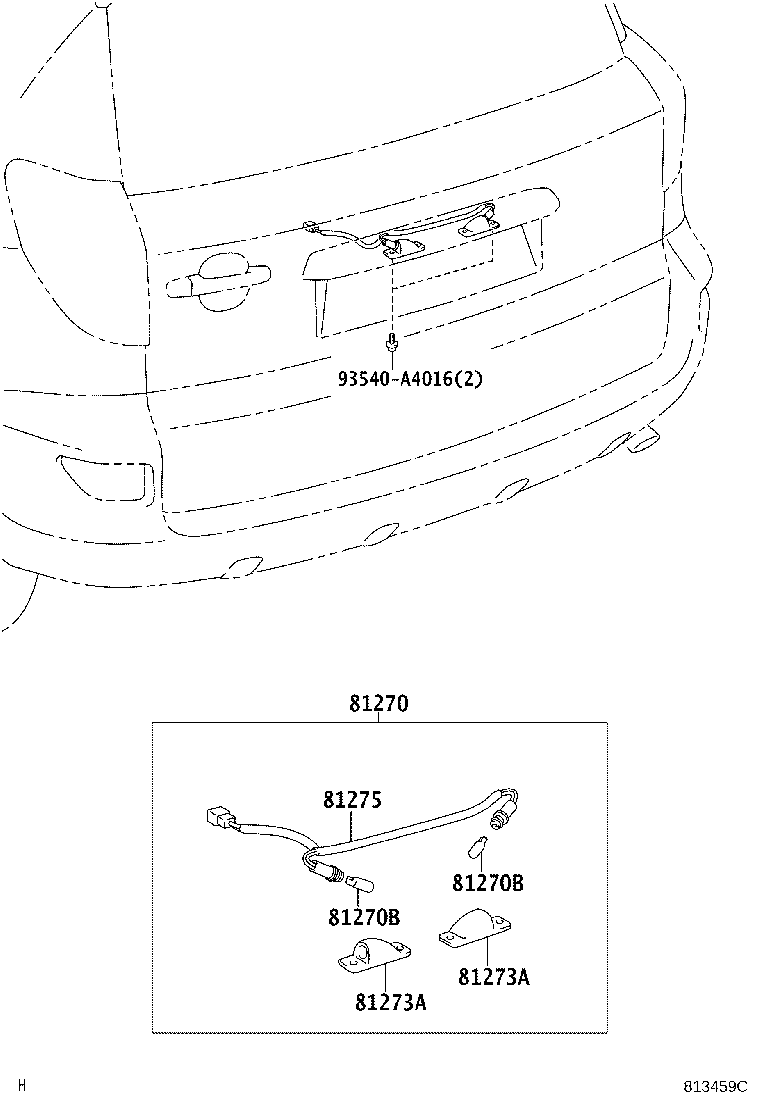

Click highlighted areas on diagram

W/0(BACK DOOR SPARE TIRE)

diagram 81270 81270B 81270B 81273A 81273A 81275 93540A4016
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81270-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81270-42080

ACA3#,ALA30..ARL,EUR,GEN

 1
81270-42081

ACA3#,ALA30,GSA33..ARL,EUR,GEN

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ACA30,31,ALA30

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

ACA30,31,ALA30

12V 5W

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

ALA30..DCRL

WITHOUT SPARE TIRE

 2
81273-48010

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 2
81273A - BODY, LICENSE PLATE LAMP
81273-48010

ALA30..DCRL

WITHOUT SPARE TIRE

 2
81273-48010

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-42060

ACA30,ALA30..G

REPAIR KIT(W/O SPARE TIRE)

 1
81275-42060

ALA30..DCRL

WITHOUT SPARE TIRE

 1
81275-42080

ACA30,31,ALA30

 1
Common parts
93540-A4016
