ALA30R-AWFGXW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )ALA3#

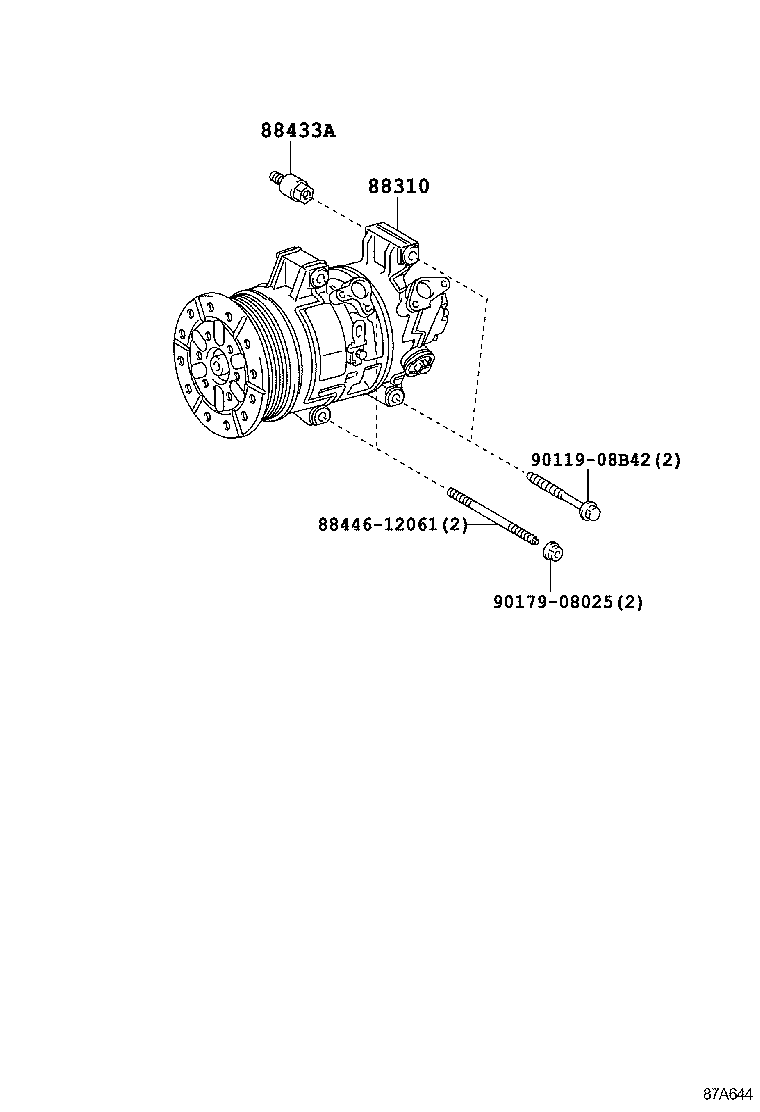

Click highlighted areas on diagram

diagram 88310 88433A 8844612061 9011908B42 9017908025
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-42250

ALA30

 1
88310-42250

ALA30..DCR,DCRL

AIR CONDITIONER-WITHOUT

 1
88310-42250

ALA30..X..DCR

WITH(FRONT WHEEL SPLASH SHIELD)

 1
88310-42250

ALA30..G..(DCR,DCRL)

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
88433A - STAY, COMPRESSOR
88433-20040

ALA30..DCR,DCRL

AIR CONDITIONER-WITHOUT

 1
88433-20040

ALA30

 1
88433-20040

ALA30..G..(DCR,DCRL)

WITHOUT(CURTAIN & SIDE AIR BAG)

 1
88433-20040

ALA30..X..DCR

WITH(FRONT WHEEL SPLASH SHIELD)

 1
Common parts
88446-12061
90119-08B42
90179-08025
