ALA30R-AWFGXW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(0812- )ALA3#

Click highlighted areas on diagram

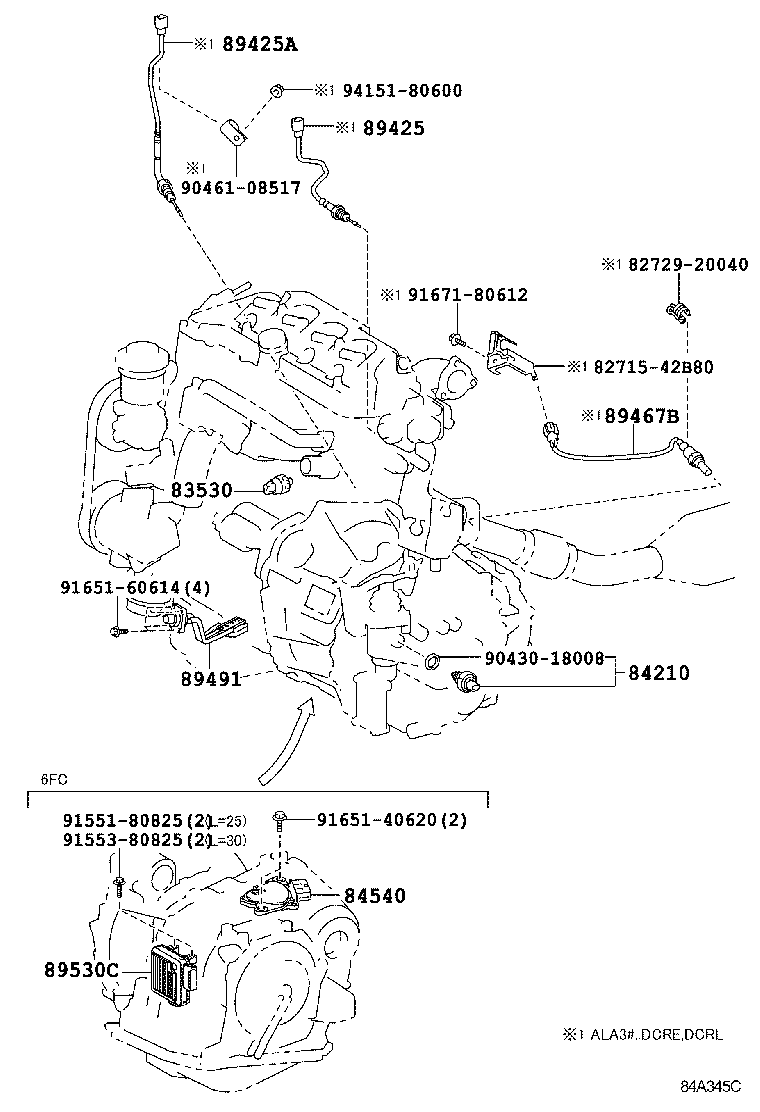

ENGINE & TRANSMISSION

diagram 8271542B80 8272920040 83530 84210 84540 89425 89425A 89467B 89491 89530C 9043018008 9046108517 9155180825 9155380825 9165140620 9165160614 9167180612 9415180600
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60010

ALA30

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

ACA30,ALA30..MTM

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-20360

ALA30..DCRE,DCRL

 1
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-42030

ALA30..DCRE,DCRL

 1
89467B - SENSOR, AIR FUEL RATIO
89467-42070

ALA30..DCRE,DCRL

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-20110

ALA30

 1
Common parts
82715-42B80
82729-20040
90430-18008
90461-08517
91551-80825
91553-80825
91651-40620
91651-60614
91671-80612
94151-80600

ILLUST NO. 6 OF 8(0812- )EUR

Click highlighted areas on diagram

STEERING

diagram 4501 82291D 84052 84140 84244B 84244B 84250A 84250A 84306 84450 84523 84610F 84610F 84650 85432 89245B 9015950199 9015950199 9015950199 9015950199 9016840129 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

ACA33..G..GCC;ACA30,31,ALA30

 1
84052-71010

ACA30,31,ALA30..G

WITH(SMART KEY & CRUISE CONTROL)

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-42110

ACA30,31,ALA30..G

WITH(SMART KEY & CRUISE CONTROL)

 1
84140-42090

ACA30,ALA30..X

 1
84140-42100

ACA30,31,ALA30..G

 1
84250A - SWITCH ASSY, STEERING PAD
84250-42010

ACA30,ALA30..G

AUDIO-AM/FM/LW,CD,NAVI

 1
84250-42040B0

ALA30..RHD..6F..DCRL

NEW ZEALAND SPEC,GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
84250A - SWITCH ASSY, STEERING PAD
84250-42010

ACA30,ALA30..G

AUDIO-AM/FM/LW,CD,NAVI

 1
84250-42040B0

ALA30..RHD..6F..DCRL

NEW ZEALAND SPEC,GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-48030

ACA30,31,33,ALA30..G..(EUR,GCC)

 1
84306-22010

ACA30,ALA30..G

AUDIO-RADIO LESS

 1
84306-22010

ACA30,ALA30..X

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

ACA33..G..GCC;ACA30,31,ALA30

 1
84450-12200

ACA30,31,ALA30..G

WITH(SMART KEY & CRUISE CONTROL)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-48070

ACA30,31,ALA30..G

WITH(SMART KEY & CRUISE CONTROL)

 1
84652-48060

ACA3#,ALA30..EUR,GCC,GEN

 1
89245B - SENSOR, STEERING
89245-52030

ACA30,31,33,ALA30,GSA33

 1
Common parts
90159-50199
90168-40129
Linked diagrams
4501
