ALA30R-AWFGXW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

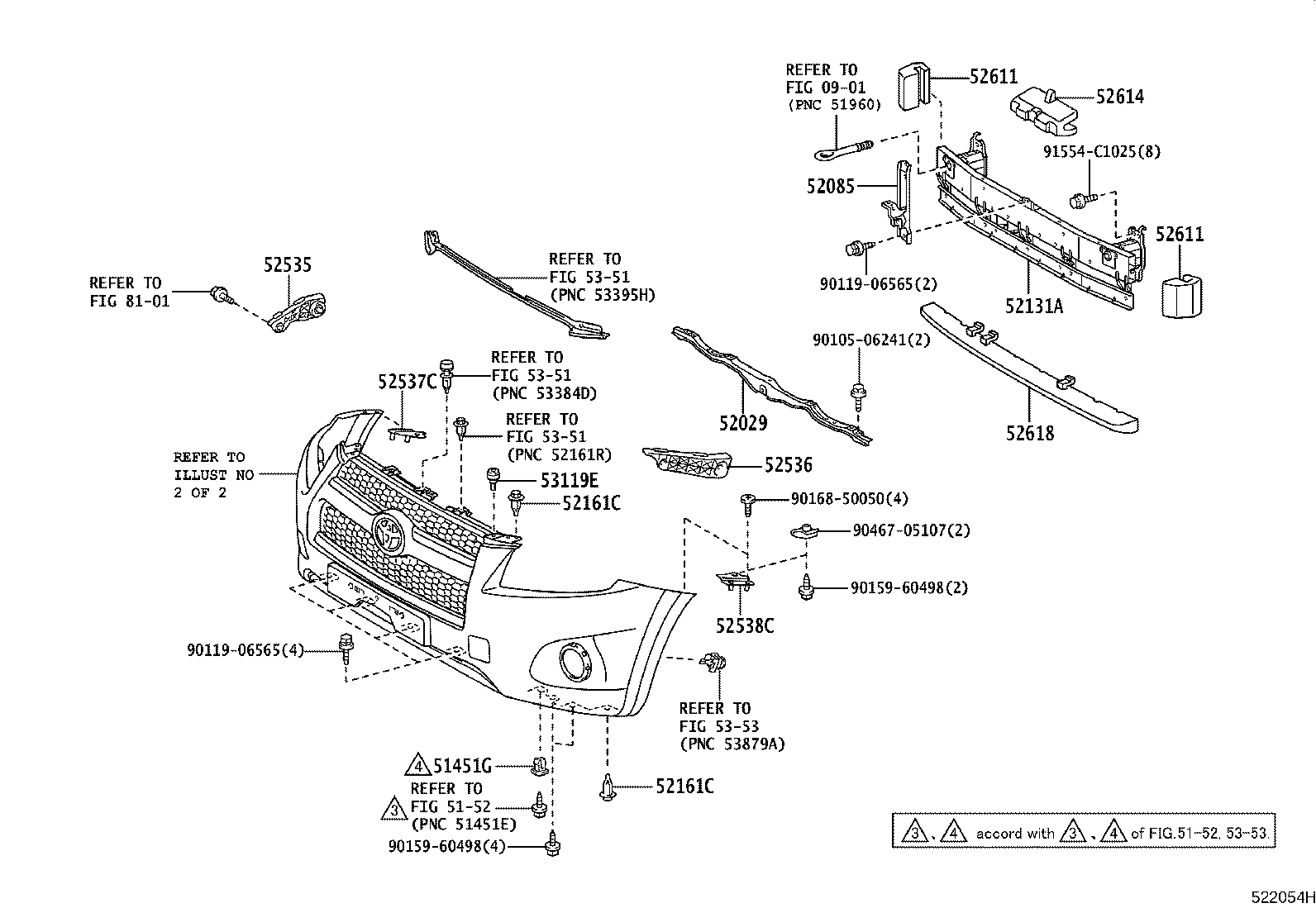

ILLUST NO. 1 OF 2(0812-1002)DCRL ; (1003-1005)ACA38..G..GEN

Click highlighted areas on diagram

X-SPORT PACKAGE OR SPECIAL EDITION

diagram 0901 51451G 5152 52029 52085 52131A 52161C 52161C 52535 52536 52537C 52538C 52611 52611 52614 52618 53119E 5351 5351 5351 5353 8101 9010506241 9011906565 9011906565 9015960498 9015960498 9016850050 9046705107 91554C1025
Part # Description Qty Price
51451G - GROMMET, NO.2
90189-06193

ACA3#,ALA30,GSA33

 2
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-42070

ACA30,31,ALA30

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-42050

ACA30,31,33,ALA30..ARL,EUR

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACA3#,ALA30,GSA33

 2
52161C - PIECE, FRONT BUMPER
52161-16010

ACA3#,ALA30,GSA33

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-42020

ACA3#,ALA30,GSA33

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-42020

ACA3#,ALA30,GSA33

 1
52537C - RETAINER, FRONT BUMPER SIDE, NO.2 RH
52537-42010

ALA30..DCRL

X-SPORT PACKAGE

 1
52538C - RETAINER, FRONT BUMPER SIDE, NO.2 LH
52538-42010

ALA30..DCRL

X-SPORT PACKAGE

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-42010

ACA30,31,33,ALA30..ARL,EUR

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-42010

ACA30,31,33,ALA30..ARL,EUR

 2
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-42010

ACA30,31,33,ALA30..ARL,EUR

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-42010

ACA30,31,33,ALA30..ARL,EUR

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-20120

ACA3#,ALA30

 2
Common parts
90105-06241
90119-06565
90159-60498
90168-50050
90467-05107
91554-C1025
Linked diagrams
0901
5152
5351
5353
8101

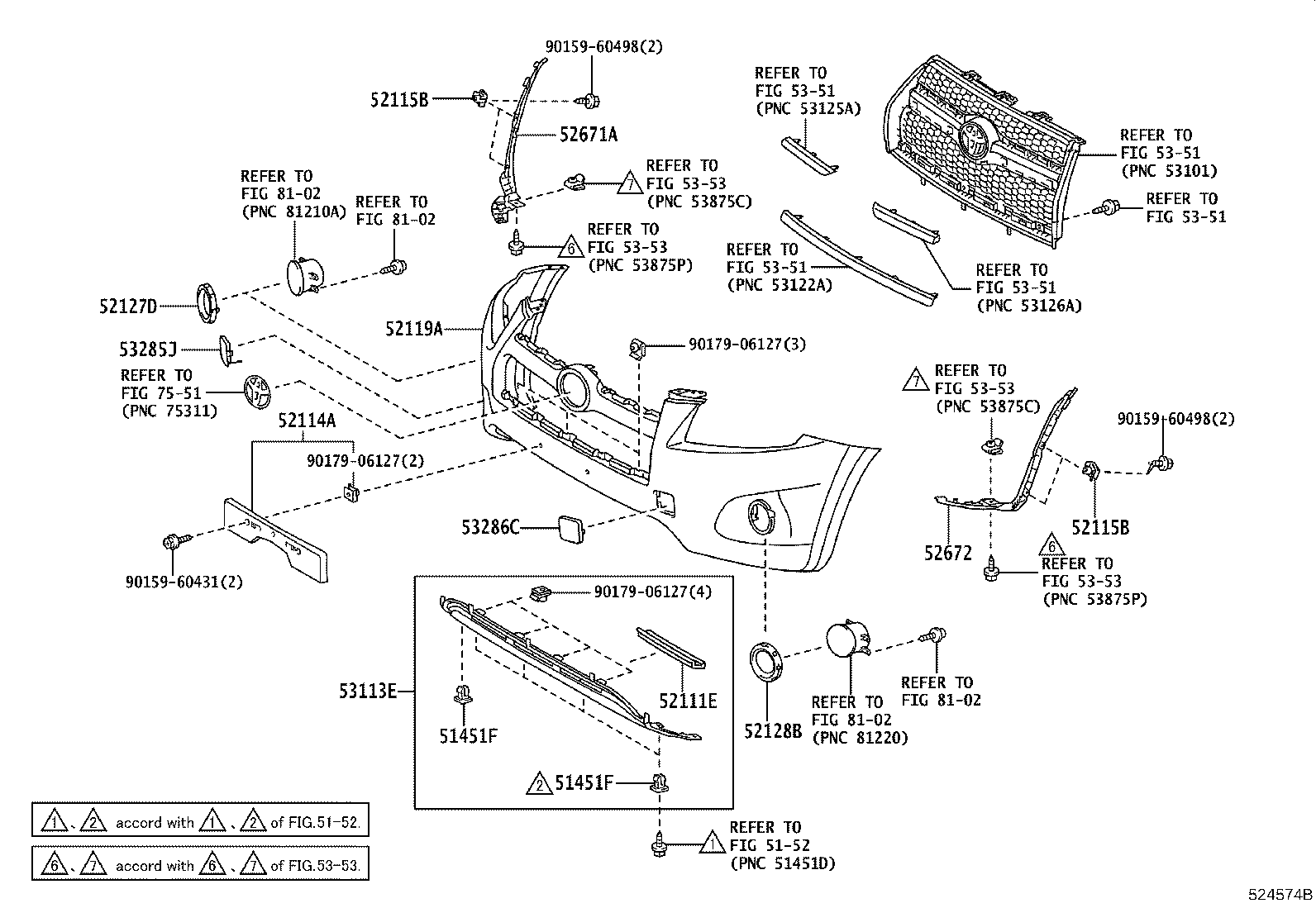

ILLUST NO. 2 OF 2(0812-1002)DCRL ; (1003-1005)ACA38..G..GEN

Click highlighted areas on diagram

X-SPORT PACKAGE OR SPECIAL EDITION

diagram 51451F 51451F 5152 52111E 52114A 52115B 52115B 52119A 52127D 52128B 52671A 52672 53113E 53285J 53286C 5351 5351 5351 5351 5351 5353 5353 5353 5353 7551 8102 8102 8102 8102 9015960431 9015960498 9015960498 9017906127 9017906127 9017906127
Part # Description Qty Price
51451F - GROMMET, NO.1
90189-06193

ALA30..DCRL

X-SPORT PACKAGE

 6
90189-06193

ACA3#,ALA30,GSA33

 4
51451F - GROMMET, NO.1
90189-06193

ALA30..DCRL

X-SPORT PACKAGE

 6
90189-06193

ACA3#,ALA30,GSA33

 4
52111E - BAR, FRONT BUMPER
52111-42010

ACA3#,ALA30,GSA33

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-42080

ALA30..DCRL

X-SPORT PACKAGE

 1
52114-42020

ACA30,31,ALA30

 1
52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1
52115-30120

ALA30..DCRL

X-SPORT PACKAGE

 4
52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1
52115-30120

ALA30..DCRL

X-SPORT PACKAGE

 4
52119A - COVER, FRONT BUMPER
52119-42930

ACA30,ALA30..DCR,HTWC

 1
52119-42931

ALA30..DCRL

 1
52119-42977

ALA30..DCRL

X-SPORT PACKAGE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-42040

ACA30,ALA30..X

 1
52127-42070

ALA30..DCRL

X-SPORT PACKAGE

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-42040

ACA30,ALA30..X

 1
52128-42070

ALA30..DCRL

X-SPORT PACKAGE

 1
52671A - EXTENSION, FRONT BUMPER ARM, RH
52671-42020

ALA30..DCRL

X-SPORT PACKAGE

 1
52672 - EXTENSION, FRONT BUMPER ARM, LH
52672-42020

ALA30..DCRL

X-SPORT PACKAGE

 1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-42040

ACA30,31,ALA30

RADIATOR COVER-WITHOUT

 1
53113-42030

ACA30,31,ALA30

 1
53113-42060

ALA30..DCRL

X-SPORT PACKAGE

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-42901

ACA3#,ALA30,GSA33

 1
53285-42928

ALA30..DCRL

X-SPORT PACKAGE

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-42901

ACA3#,ALA30,GSA33

 1
53286-42929

ALA30..DCRL

X-SPORT PACKAGE

 1
Common parts
90159-60431
90159-60498
90179-06127
Linked diagrams
5152
5351
5353
7551
8102
