ALA30R-AWFGXW (2008)
Toyota Rav4

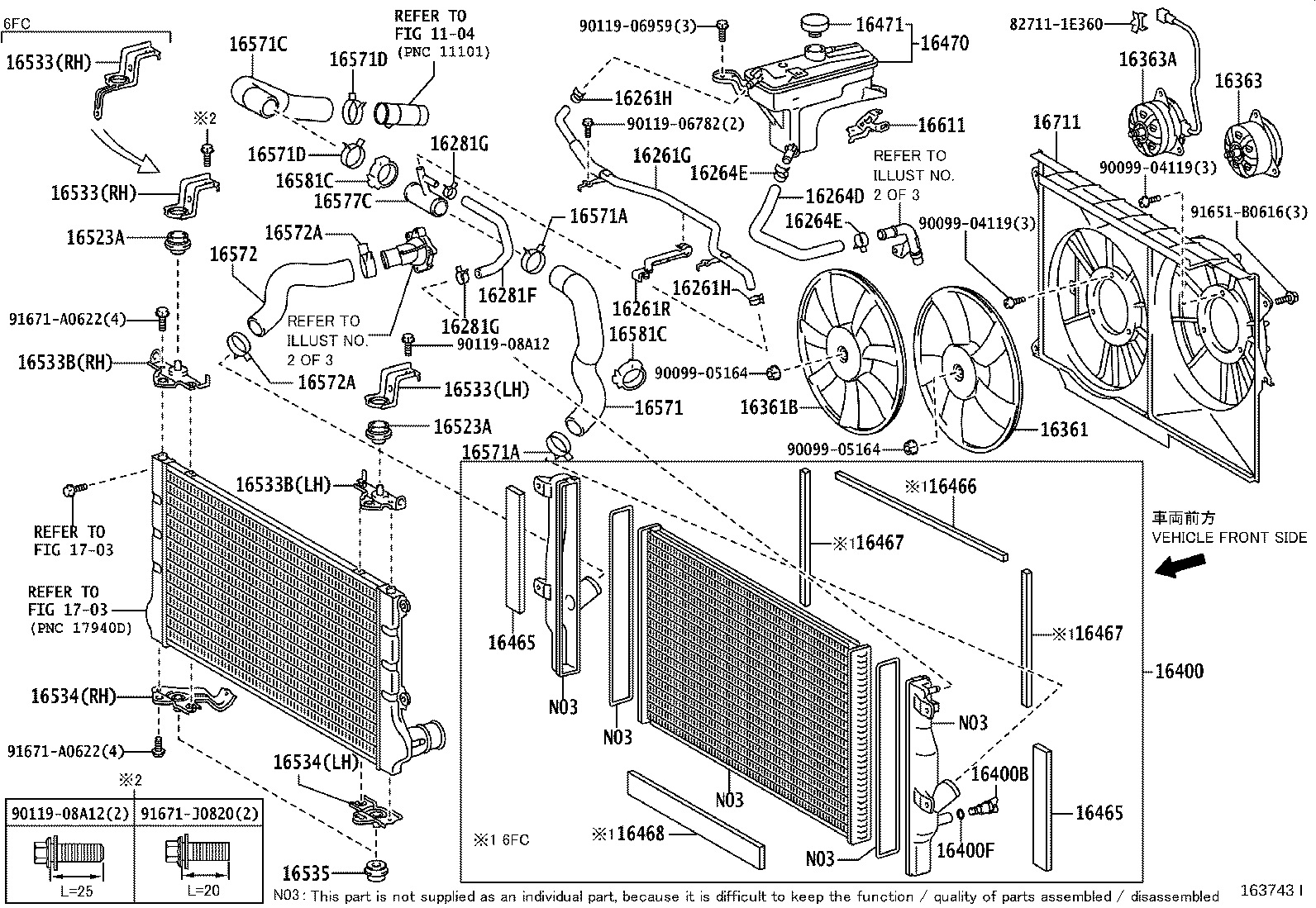

ILLUST NO. 1 OF 3(0812- )2AD#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-26020 |
2AD#..ALA30 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-19022 |
2AD#..ALA30 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-19022 |
2AD#..ALA30 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-26050 |
2AD#..ALA30 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-26030 |
2AD#..ALA30 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
2AD#..ALA30 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
2AD#..ALA30 |
2 | ||
| 16361 - FAN | ||||
| 16361-28220 |
2AZFE..ACA33..G..GCC;2AZFE,2AD#..ACA31,ALA30 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28230 |
2AZFE..ACA33..G..GCC;2AZFE,2AD#..ACA31,ALA30 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28170 |
2AZFE..ACA33..G..GCC;2AZFE,2AD#..ACA31,ALA30 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-70050 |
2AD#..ALA30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26390 |
2AD#..ALA30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
2AZFE..ACA33..G..GCC;2AZFE,2AD#..ACA31,ALA30 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
2AZFE..ACA33..G..GCC;2AZFE,2AD#..ACA31,ALA30 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-26390 |
2AD#..ALA30 |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-26390 |
2AD#..ALA30 |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-26120 |
2AD#..ALA30 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-75120 |
1AZFE,2AZFE,2AD#..ACA3#,ALA30 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16534-26010 |
2AD#..ALA30 LH |
1 | ||
| 16534-26020 |
2AD#..ALA30 RH |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16534-26010 |
2AD#..ALA30 LH |
1 | ||
| 16534-26020 |
2AD#..ALA30 RH |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-26030 |
2AD#..ALA30 LH |
1 | ||
| 16534-26040 |
2AD#..ALA30 RH |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-26030 |
2AD#..ALA30 LH |
1 | ||
| 16534-26040 |
2AD#..ALA30 RH |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
1AZFE,2AD#..ACA30,ALA30 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-26120 |
2AD#..ALA30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 90466-41006 |
2AD#..ALA30 NO.2 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 90466-41006 |
2AD#..ALA30 NO.2 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-26130 |
2AD#..ALA30 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 90466-41006 |
2AD#..ALA30 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 90466-41006 |
2AD#..ALA30 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-26080 |
2AD#..ALA30 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
2AD#..ALA30 NO.2 |
1 | ||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
2AD#..ALA30 NO.2 |
1 | ||
| 90466-41005 |
2AD#..ALA30 NO.1 |
1 | ||
| 96136-54801 |
2AD#..ALA30 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-26020 |
2AD#..ALA30 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-26040 |
2AD#..ALA30 |
2 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-26040 |
2AD#..ALA30 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-28030 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-26100 |
2AD#..ALA30 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06782 | ||||
| 90119-06959 | ||||
| 90119-08A12 | ||||
| 91651-B0616 | ||||
| 91671-A0622 | ||||
| 91671-J0820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||

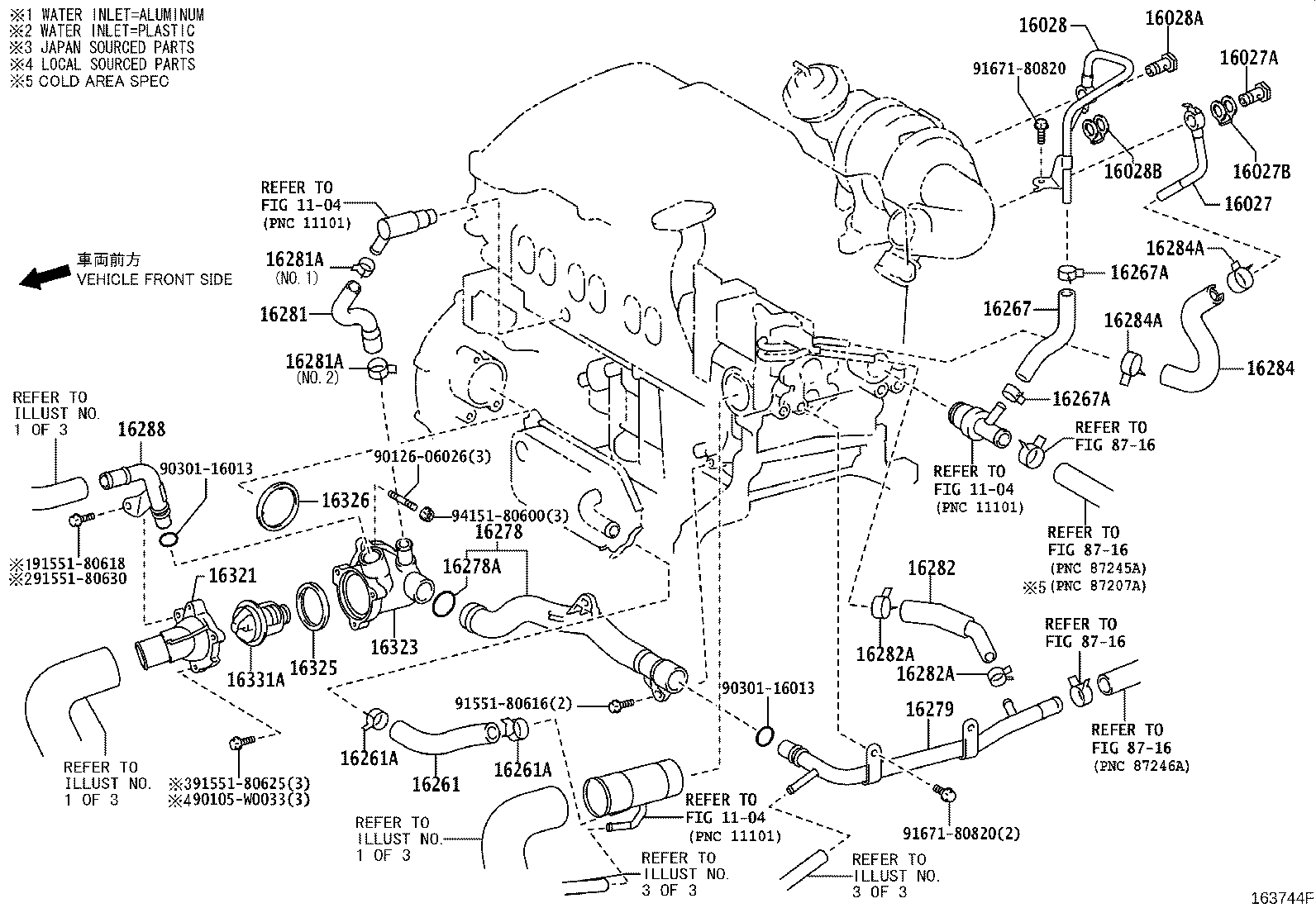

ILLUST NO. 2 OF 3(0812- )2ADFHV..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-26010 |
2ADFHV..ALA30 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 96341-11200 |
2ADFHV..ALA30 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90430-12037 |
2ADFHV..ALA30 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-26010 |
2ADFHV..ALA30 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 96341-11200 |
2ADFHV..ALA30 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90430-12037 |
2ADFHV..ALA30 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0R020 |
2AD#..ALA30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
2AD#..ALA30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
2AD#..ALA30 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-26020 |
2AD#..ALA30 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AD#..ALA30 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AD#..ALA30 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-0R010 |
2AD#..ALA30 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16258-0R010 |
2AD#..ALA30 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-26020 |
2AD#..ALA30 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0R010 |
2AD#..ALA30 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-52100 |
2AD#..ALA30 NO.2 |
1 | ||
| 96134-41900 |
2AD#..ALA30 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-52100 |
2AD#..ALA30 NO.2 |
1 | ||
| 96134-41900 |
2AD#..ALA30 NO.1 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-26020 |
2AD#..ALA30 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-26010 |
2ADFHV..ALA30 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ALA30 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ALA30 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-0R011 |
2AD#..ALA30 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-26010 |
2AD#..ALA30 ALUMINUM |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-26010 |
2AD#..ALA30 ALUMINUM |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2AD#..ALA30 OD=59.0,ID=51.9 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-26020 |
2AD#..ALA30 PNC 16321=ALUMINUM |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03125 |
2AD#..ALA30 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0033 | ||||
| 90126-06026 | ||||
| 90301-16013 | ||||
| 91551-80616 | ||||
| 91551-80618 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||

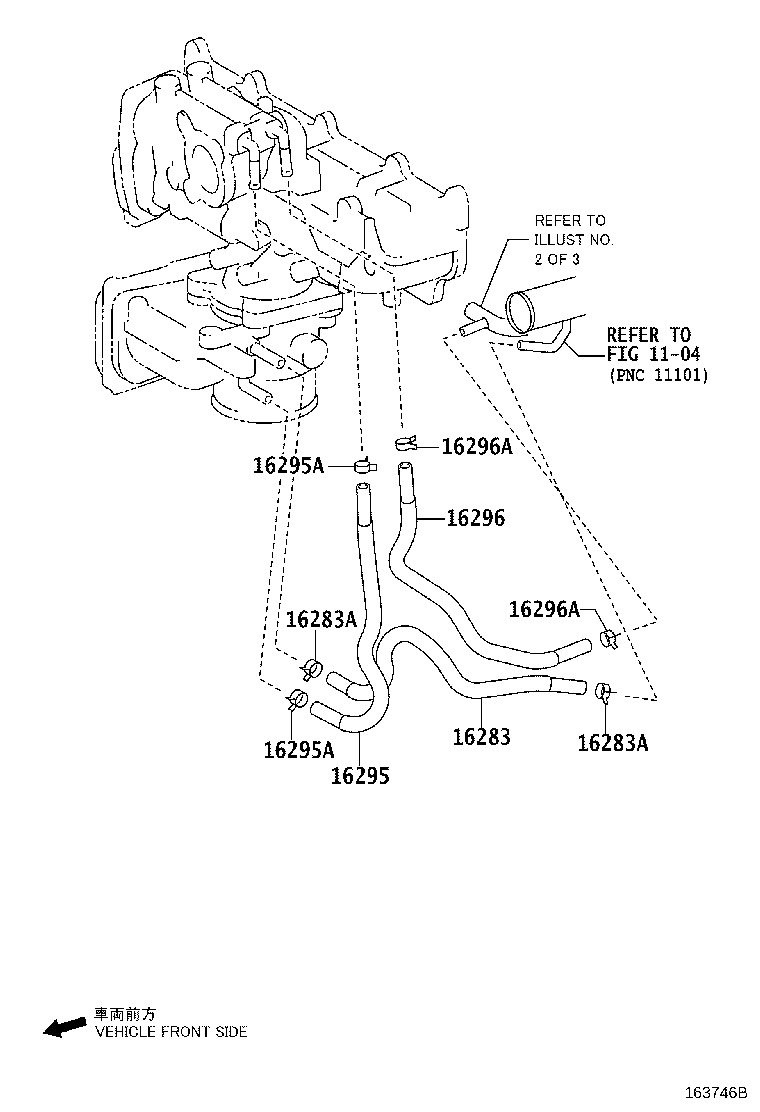

ILLUST NO. 3 OF 3(0812- )2AD#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1104 | ||||
