ALA30R-AWFGXW (2008)

Toyota Rav4

Production Dec 2008 - Feb 2010
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

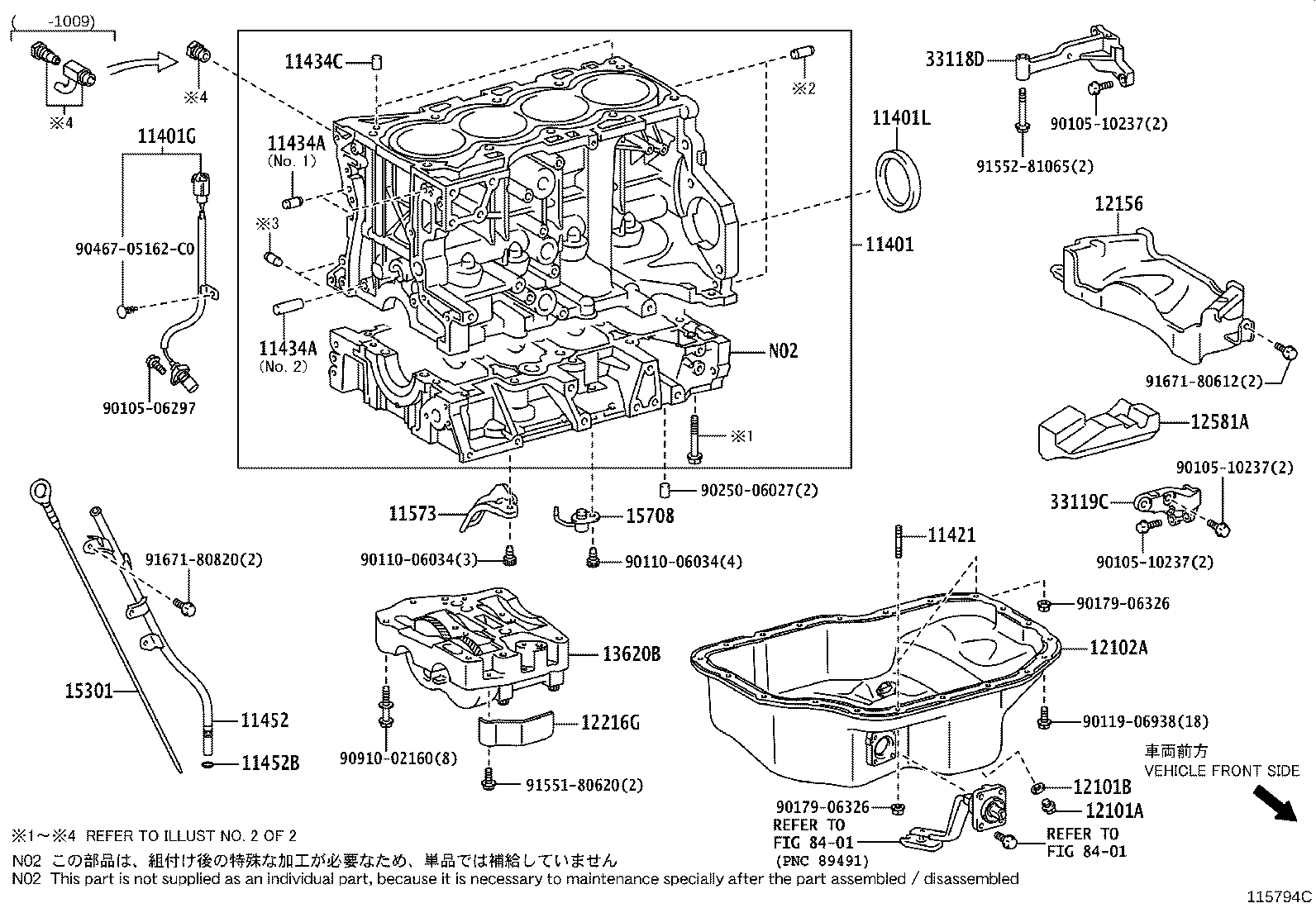

ILLUST NO. 1 OF 2(0812- )2AD#

Click highlighted areas on diagram

diagram 11401 11401G 11401L 11421 11434A 11434A 11434C 11452 11452B 11573 12101A 12101B 12102A 12156 12216G 12581A 13620B 15301 15708 33118D 33119C 8401 8401 9010506297 9010510237 9010510237 9010510237 9011006034 9011006034 9011906938 9017906326 9017906326 9025006027 9046705162C0 9091002160 9155180620 9155281065 9167180612 9167180820
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29355

2AD#..ALA30

 1
11401G - SENSOR, CRANK POSITION
90919-05069

2AD#..ALA30

 1
11401L - SEAL, ENGINE REAR OIL
90311-W0006

2AD#..ALA30

 1
11421 - BOLT, STUD(FOR OIL PAN)
90116-06134

2AD#..ALA30

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10030

2AD#..ALA30

L=36,OD=10,NO.2

 1
90250-08120

2AD#..ALA30

L=18,OD=8,NO.1

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10030

2AD#..ALA30

L=36,OD=10,NO.2

 1
90250-08120

2AD#..ALA30

L=18,OD=8,NO.1

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

2AD#..ALA30

L=15,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-26020

2AD#..ALA30

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

2AD#..ALA3#

 1
96741-19010

2AD#..ALA30

 1
11573 - PLATE, OIL REFLECTOR
11573-26010

2AD#..ALA30

 3
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0R010

2AD#..ALA30

 1
12102-0R020

2AD#..ALA30

 1
12156 - INSULATOR, OIL PAN
12156-26010

2AD#..ALA30

 1
12216G - PLATE, OIL BAFFLE
12216-26010

2AD#..ALA30

 1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-26010

2ADFHV..ALA30

 1
13620B - BALANCER ASSY, ENGINE
13620-26013

2AD#..ALA30

 1
13620-26041

2AD#..ALA30

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-26020

2AD#..ALA30

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0R010

2AD#..ALA30

 4
33118D - PLATE, STIFFENER, RH
33118-42010

ALA30

 1
33119C - PLATE, STIFFENER, LH
33119-42010

ALA30

 1
Common parts
90105-06297
90105-10237
90110-06034
90119-06938
90179-06326
90250-06027
90467-05162C0
90910-02160
91551-80620
91552-81065
91671-80612
91671-80820
Linked diagrams
8401
