ALA30L-AWFGYW (2005)
Toyota Rav4
ILLUST NO. 1 OF10(0511- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-4A360 |
ALA30..LHD |
1 | ||
| 82111-4A380 |
ALA30..LHD COLD AREA SPEC |
1 | ||
| 82111-4A381 |
ALA30..LHD COLD AREA SPEC |
1 | ||
| 82111-4A361 |
ALA30..LHD |
1 | ||
| 82111-4A382 |
ALA30..LHD COLD AREA SPEC |
1 | ||
| 82111-4A362 |
ALA30..LHD |
1 | ||
| 82111-4A360 |
ALA30..LHD PART NUMBER LABEL=82111-4A360 |
1 | ||
| 82111-4A380 |
ALA30..LHD PART NUMBER LABEL=82111-4A380 |
1 | ||
| 82111-4A361 |
ALA30..LHD PART NUMBER LABEL=82111-4A361 |
1 | ||
| 82111-4A381 |
ALA30..LHD PART NUMBER LABEL=82111-4A381 |
1 | ||
| 82111-4A362 |
ALA30..LHD PART NUMBER LABEL=82111-4A362 |
1 | ||
| 82111-4A382 |
ALA30..LHD PART NUMBER LABEL=82111-4A382 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA33..G..GCC;ACA30,31,ALA30 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

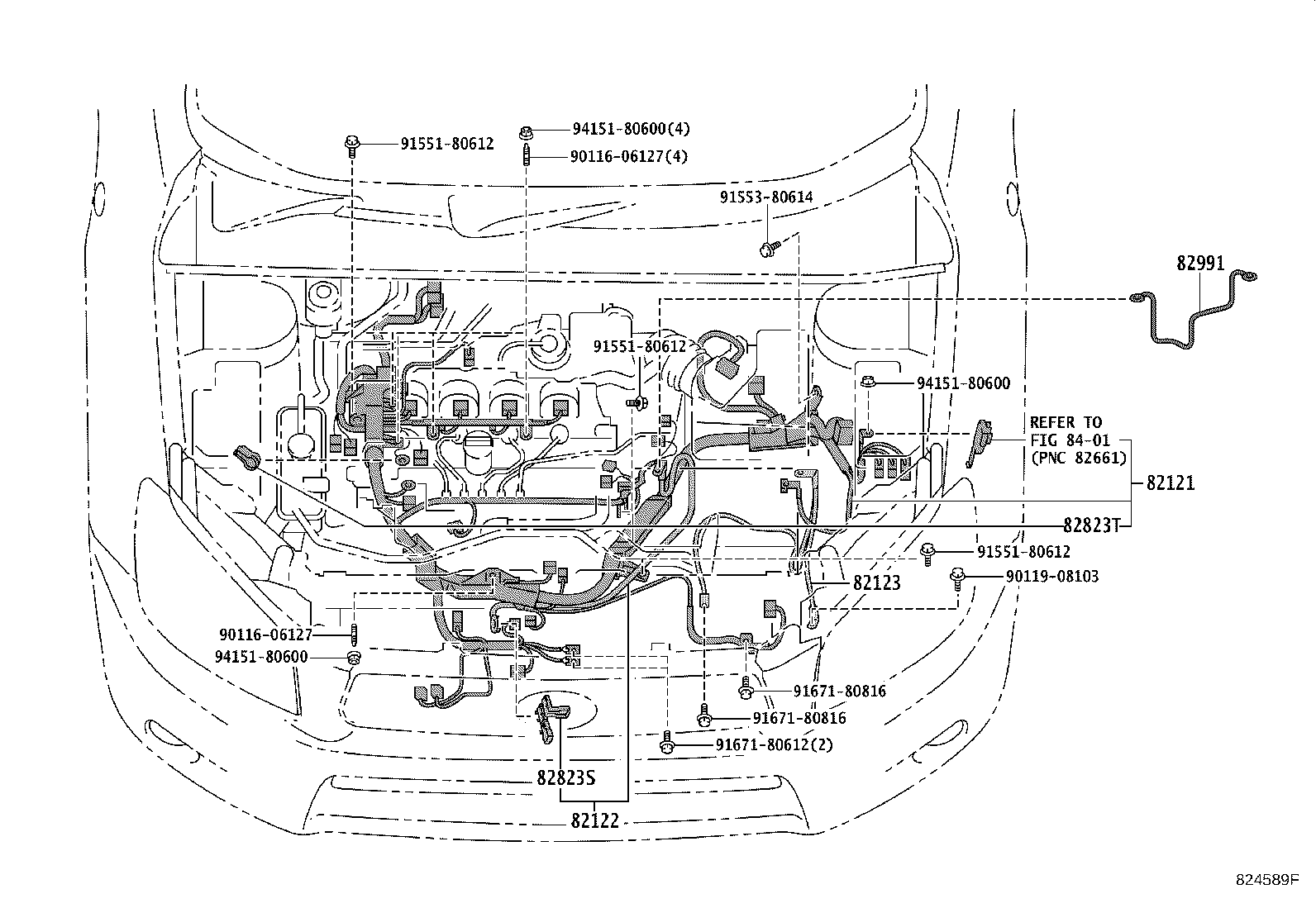

ILLUST NO. 2 OF10(0511-0812)ALA30
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-42A42 |
ALA30..DCR |
1 | ||
| 82121-42A40 |
ALA30..DCR |
1 | ||
| 82121-42A41 |
ALA30..DCR |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-42050 |
ALA30 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-42130 |
ALA30 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20090 |
ALA30 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22080 |
ALA30 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42020 |
ALA30 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08103 | ||||
| 91551-80612 | ||||
| 91553-80614 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(0511-0808)ACA33,38..LHD ; (0511-0812)ACA30,31,ALA30..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42N10 |
ACA30,ALA30..LHD..MTM..G AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42N00 |
ACA30,ALA30..LHD..MTM..G |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42N30 |
ACA30,ALA30..LHD..MTM..G WITH(SMART KEY & CRUISE CONTROL)&AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42N20 |
ACA30,ALA30..LHD..MTM..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42N01 |
ACA30,ALA30..LHD..MTM..G |
1 | ||
| 82141-42N11 |
ACA30,ALA30..LHD..MTM..G AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F00 OR 82141-42M80 |
1 | ||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F10 OR 82141-42M90 |
1 | ||
| 82141-42N10 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F50 OR 82141-42N10 |
1 | ||
| 82141-42N00 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F40 OR 82141-42N00 |
1 | ||
| 82141-42N20 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F80 OR 82141-42N20 |
1 | ||
| 82141-42N30 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F90 OR 82141-42N30 |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F11 OR 82141-42M91 |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F01 OR 82141-42M81 |
1 | ||
| 82141-42N11 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F51 OR 82141-42N11 |
1 | ||
| 82141-42N01 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F41 OR 82141-42N01 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-42040 |
ACA30,31,ALA30..LHD..G |
1 | ||
| 82142-42050 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42160 |
ACA3#,ALA30..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42230 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42231 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42241 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42240 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42171 |
ACA3#,ALA30..LHD |
1 | ||
| 82666-42170 |
ACA3#,ALA30..LHD |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ACA3#,ALA30,GSA33..G |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42050 |
ACA3#,ALA30..LHD |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42060 |
ACA3#,ALA30..LHD |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(0511- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-42870 |
ACA30,31,ALA30..LHD..G |
1 | ||
| 82151-42880 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-42780 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82152-42770 |
ACA30,31,ALA30..LHD..G |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-42100 |
ACA30,31,ALA30..LHD |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-42100 |
ACA30,31,ALA30..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-42230 |
ACA3#,ALA30..EUR,GEN |
1 | ||
| 82184-42250 |
ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82184-42250 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82184-42231 |
ACA3#,ALA30..EUR,GEN |
1 | ||
| 82184-42290 |
ACA30,ALA30..G REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82184-42251 |
ACA30,ALA30..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82184-42251 |
ACA30,31,ALA30..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82184-42291 |
ACA30,ALA30..G REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 5 OF10(0511- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-42J40 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42D40 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42C60 |
ACA30,ALA30..LHD |
1 | ||
| 82161-42C50 |
ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC) WITHOUT(CURTAIN & SIDE AIR BAG) |
1 | ||
| 82161-42G30 |
ACA30,ALA30..LHD..G MOON ROOF-WITH |
1 | ||
| 82161-42D41 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42G40 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH |
1 | ||
| 82161-42J41 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42D41 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE)&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42D30 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82161-42D21 |
ACA30,ALA30..LHD..G REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82161-42D30 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82161-42J41 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE)&MOON ROOF-WITH&SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82161-42G30 |
ACA30,ALA30..LHD..G REPAIR KIT(W/O SPARE TIRE)&MOON ROOF-WITH |
1 | ||
| 82161-42G40 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&REPAIR KIT(W/O SPARE TIRE)&MOON ROOF-WITH |
1 | ||
| 82161-42J40 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42J40 |
1 | ||
| 82161-42D40 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D40 |
1 | ||
| 82161-42C60 |
ACA30,ALA30..LHD PART NUMBER LABEL=82161-42C60 |
1 | ||
| 82161-42D30 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D30 |
1 | ||
| 82161-42C50 |
ACA30,ALA30..LHD..G..(DCR,DCRE,HTWC) PART NUMBER LABEL=82161-42C50 |
1 | ||
| 82161-42G40 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42G40 |
1 | ||
| 82161-42D41 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D41 |
1 | ||
| 82161-42G30 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42G30 |
1 | ||
| 82161-42D30 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D30 |
1 | ||
| 82161-42J41 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42J41 |
1 | ||
| 82161-42D21 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D21 |
1 | ||
| 82161-42J41 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42J41 |
1 | ||
| 82161-42G40 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42G40 |
1 | ||
| 82161-42G30 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42G30 |
1 | ||
| 82161-42D41 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82161-42D41 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-42030 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82162-42300 |
ACA30,31,ALA30..LHD..G MOON ROOF-WITH |
1 | ||
| 82162-42020 |
ACA30,31,ALA30..LHD |
1 | ||
| 82162-42010 |
ACA30,ALA30..LHD..G WITHOUT(CURTAIN & SIDE AIR BAG)&AUDIO-RADIO LESS |
1 | ||
| 82162-42310 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH |
1 | ||
| 82162-42010 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82162-42010 |
1 | ||
| 82162-42030 |
ACA30,31,ALA30..LHD..G PART NUMBER LABEL=82162-42030 |
1 | ||
| 82162-42300 |
ACA30,31,ALA30..LHD..G PART NUMBER LABEL=82162-42300 |
1 | ||
| 82162-42020 |
ACA30,31,ALA30..LHD PART NUMBER LABEL=82162-42020 |
1 | ||
| 82162-42310 |
ACA30,31,ALA30..LHD..G PART NUMBER LABEL=82162-42310 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42010 |
ACA30,31,ALA30 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-42020 |
ACA30,31,ALA30 |
1 | ||
| 82165-42010 |
ACA30,ALA30..G REPAIR KIT(W/O SPARE TIRE) |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-42010 |
ACA30,31,ALA30 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-42410 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82171-42440 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82171-42440 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82171-42450 |
ACA3#,ALA30,GSA33..G MOON ROOF-WITH |
1 | ||
| 82171-42420 |
ACA30,ALA30..G AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82171-42450 |
ACA30,ALA30..G MOON ROOF-WITH&AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82171-42470 |
ACA30,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH&AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82171-42470 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL)&MOON ROOF-WITH |
1 | ||
| 82171-42410 |
ACA3#,ALA30,GSA33 PART NUMBER LABEL=82171-42410 |
1 | ||
| 82171-42420 |
ACA30,ALA30..G PART NUMBER LABEL=82171-42420 |
1 | ||
| 82171-42440 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82171-42440 |
1 | ||
| 82171-42450 |
ACA30,ALA30..G PART NUMBER LABEL=82171-42450 |
1 | ||
| 82171-42440 |
ACA30,31,ALA30..LHD..G PART NUMBER LABEL=82171-42440 |
1 | ||
| 82171-42470 |
ACA30,31,ALA30..LHD..G PART NUMBER LABEL=82171-42470 |
1 | ||
| 82171-42470 |
ACA30,ALA30..LHD..G PART NUMBER LABEL=82171-42470 |
1 | ||
| 82171-42450 |
ACA3#,ALA30,GSA33..G PART NUMBER LABEL=82171-42450 |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-42020 |
ALA30 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42210 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42280 |
ACA33..G..GCC;ACA30,31,ALA30 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 5854 | ||||
| 8121 | ||||
ILLUST NO. 7 OF10(0511- )ACA3#,ALA3#
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10070 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-20B00 | ||||
| 82715-28A50 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-42740 | ||||
| 82715-42760 | ||||
| 82715-42770 | ||||
| 82715-42820 | ||||
| 82715-42830 | ||||
| 82715-42840 | ||||
| 82715-42870 | ||||
| 82715-42B50 | ||||
| 82715-42B90 | ||||
| 82715-42D00 | ||||
| 82715-42D80 | ||||
| 82715-42E00 | ||||
| 82715-42E10 | ||||
| 82715-42E20 | ||||
| 82715-42E30 | ||||
| 82715-42E40 | ||||
| 90119-06952 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 91672-81020 | ||||
ILLUST NO.10 OF10(0511- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90080-98298 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11002 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11030 | ||||
| 90980-11060 | ||||
| 90980-11073 | ||||
| 90980-11075 | ||||
| 90980-11095 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-WA052 | ||||
ILLUST NO. 6 OF10(0511- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-60140 |
ACA30,33,38,ALA30..LHD..G SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
ILLUST NO. 8 OF10(0511- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-35520 | ||||
| 82715-21110 | ||||
| 82715-42850 | ||||
| 82715-42860 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO. 3 OF10(0808- )GCC,GEN ; (0812- )LHD..EUR
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42N10 |
ACA30,ALA30..LHD..MTM..G AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42N00 |
ACA30,ALA30..LHD..MTM..G |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42N30 |
ACA30,ALA30..LHD..MTM..G WITH(SMART KEY & CRUISE CONTROL)&AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-MANUAL&AUDIO-RADIO LESS |
1 | ||
| 82141-42N20 |
ACA30,ALA30..LHD..MTM..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42N01 |
ACA30,ALA30..LHD..MTM..G |
1 | ||
| 82141-42N11 |
ACA30,ALA30..LHD..MTM..G AUDIO-AM/FM/LW,CD,NAVI |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G WITHOUT(CURTAIN & SIDE AIR BAG)&DAYTIME RUNNING LIGHT SYSTEM-NORTH EUROPE BULB&AIR CONDITIONER-WITHOUT&AUDIO-RADIO LESS |
1 | ||
| 82141-42M80 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F00 OR 82141-42M80 |
1 | ||
| 82141-42M90 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F10 OR 82141-42M90 |
1 | ||
| 82141-42N10 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F50 OR 82141-42N10 |
1 | ||
| 82141-42N00 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F40 OR 82141-42N00 |
1 | ||
| 82141-42N20 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F80 OR 82141-42N20 |
1 | ||
| 82141-42N30 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F90 OR 82141-42N30 |
1 | ||
| 82141-42M91 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F11 OR 82141-42M91 |
1 | ||
| 82141-42M81 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F01 OR 82141-42M81 |
1 | ||
| 82141-42N11 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F51 OR 82141-42N11 |
1 | ||
| 82141-42N01 |
ACA30,ALA30..LHD..MTM..G PART NUMBER LABEL=82141-42F41 OR 82141-42N01 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-42040 |
ACA30,31,ALA30..LHD..G |
1 | ||
| 82142-42050 |
ACA30,31,ALA30..LHD..G WITH(SMART KEY & CRUISE CONTROL) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-42160 |
ACA3#,ALA30..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42230 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42231 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42241 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666-42240 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42171 |
ACA3#,ALA30..LHD |
1 | ||
| 82666-42170 |
ACA3#,ALA30..LHD |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-30370 |
ACA3#,ALA30,GSA33..G |
1 | ||
| 82671M - BLOCK, JUNCTION, NO.5 | ||||
| 82671-42050 |
ACA3#,ALA30..LHD |
1 | ||
| 82671N - BLOCK, JUNCTION, NO.6 | ||||
| 82671-42060 |
ACA3#,ALA30..LHD |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
ACA3#,ALA30,GSA33 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-42180 |
ACA3#,ALA30,GSA33 NO.1 |
4 | ||
| 82824-42210 |
ACA3#,ALA30 NO.3 |
44 | ||
| 82824-52080 |
ACA3#,ALA30..LHD NO.5 |
2 | ||
| 82824-42200 |
ACA3#,ALA30 NO.2 |
8 | ||
| 82824-42200 |
ACA3#,ALA30,GSA33 NO.2 |
28 | ||
| 82824-42210 |
ACA3#,ALA30,GSA33 NO.3 |
24 | ||
| 82824-42190 |
ACA3#,ALA30,GSA33 NO.4 |
4 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
