ACA38R-ANPXKQ (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )ACA38,ALA35,ZSA35

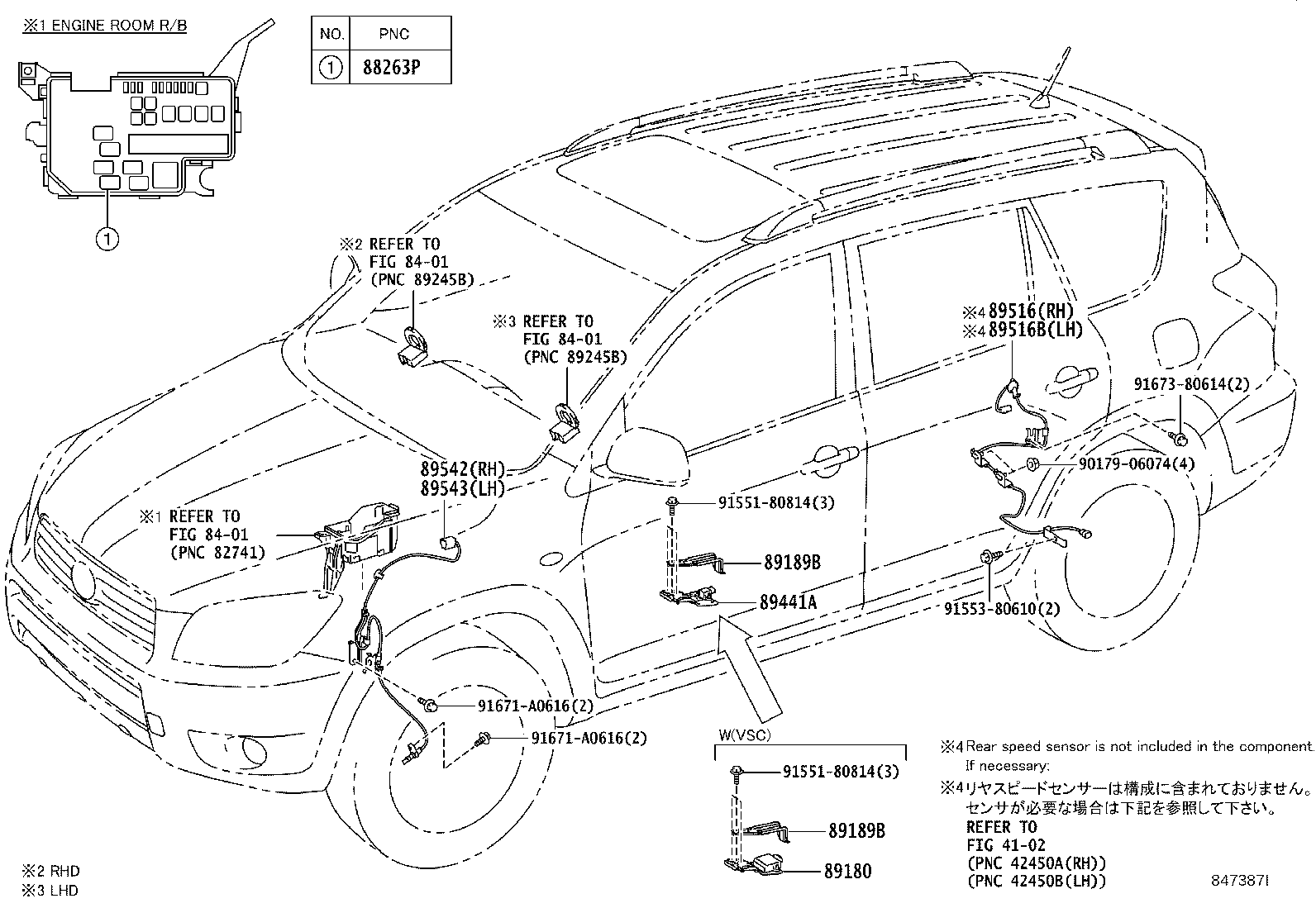

Click highlighted areas on diagram

diagram 4102 8401 8401 8401 88263P 89180 89189B 89189B 89441A 89516 89516B 89542 89543 9017906074 9155180814 9155180814 9155380610 91671A0616 91671A0616 9167380614
Part # Description Qty Price
89180 - SENSOR ASSY, YAWRATE
89180-42040

ACA38..G..GCC;ACA33,38..X..ARL;ACA33..G..(GCC,GEN)

VSC-WITH

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA33,38,GSA33

 1
89189B - BRACKET, YAWRATE SENSOR
89189-42010

ACA33,38,GSA33

 1
89441A - SENSOR, DECELERATION
89440-42050

ACA38;ACA33..X;ACA33..LHD..G

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-42050

ACA38

 1
89516B - WIRE, SKID CONTROL SENSOR
89516-42060

ACA38

 1
89542 - SENSOR, SPEED, FRONT RH
89542-42050

ACA3#,ALA30,GSA33

 1
89543 - SENSOR, SPEED, FRONT LH
89543-42050

ACA3#,ALA30,GSA33

 1
Common parts
90179-06074
91551-80814
91553-80610
91671-A0616
91673-80614
Linked diagrams
4102
8401
