ACA38R-ANPXKQ (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )RHD

Click highlighted areas on diagram

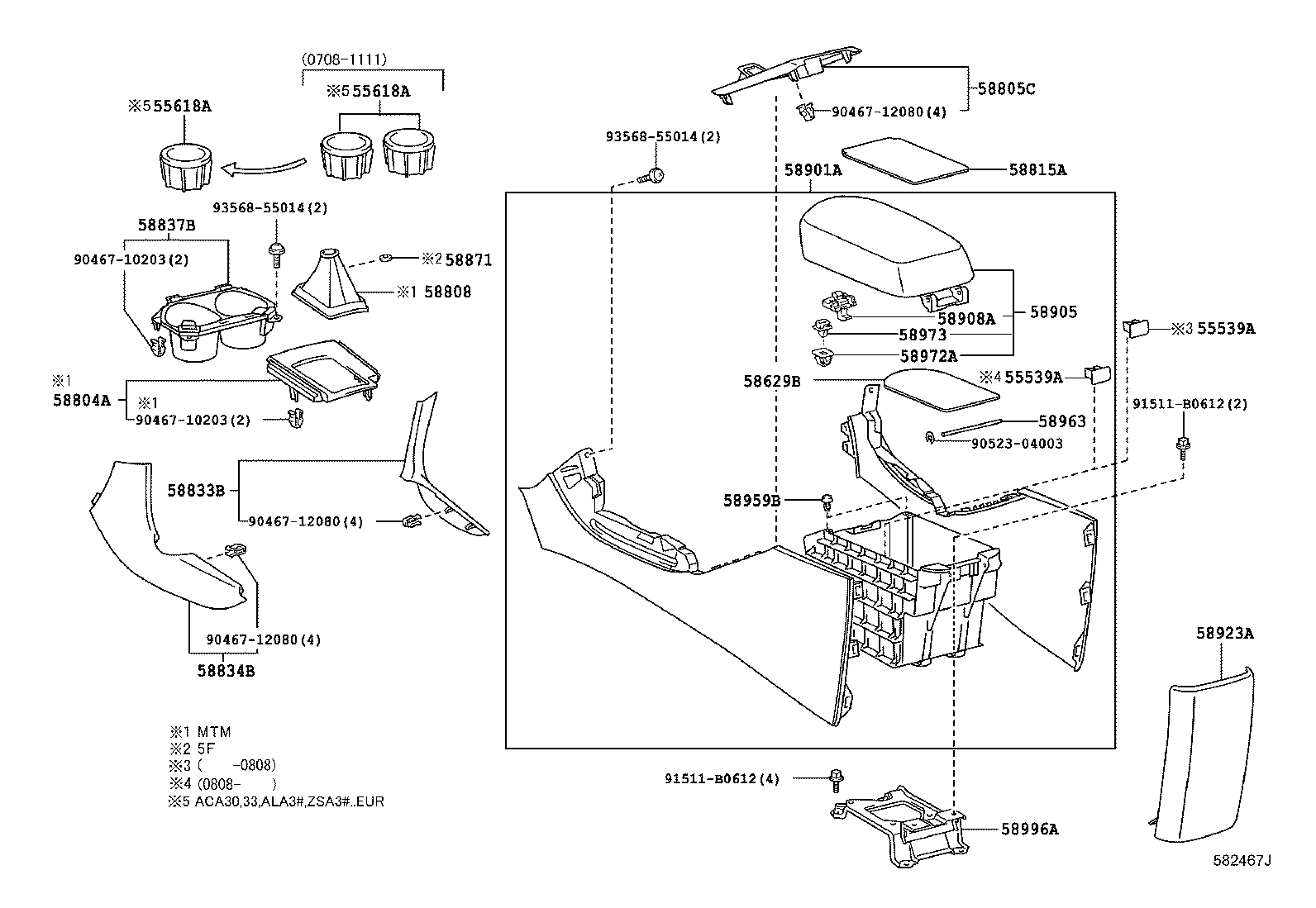

diagram 55539A 55539A 55618A 55618A 58629B 58804A 58805C 58808 58815A 58833B 58834B 58837B 58871 58901A 58905 58908A 58923A 58959B 58963 58972A 58973 58996A 9046710203 9046710203 9046712080 9046712080 9046712080 9052304003 91511B0612 91511B0612 9356855014 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

ACA3#,ALA30,GSA33

DK.GRAY

 1
55539A - COVER, SPARE SWITCH HOLE
55539-52060B0

ACA3#,ALA30,GSA33

DK.GRAY

 1
58629B - MAT, CENTER CONSOLE
58629-42010

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-42041B0

ACA3#,ALA3#,GSA33,ZSA3#..RHD

DK.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-42020

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-42010B0

ACA33,38;ACA30,31,ALA30..G

DK.GRAY,TRIM1#,4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32020

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
58908-12080

ACA3#,ALA3#,GSA33,ZSA3#

 1
58923A - PANEL, CONSOLE REAR END
58923-42010E0

ACA33,38;ACA30,31,ALA30..G

FAWN,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 2
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-47010

ACA3#,ALA30,GSA33

 1
58972A - BASE, CONSOLE COMPARTMENT DOOR LOCK
58972-12010

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
58973 - PIN, CONSOLE COMPARTMENT DOOR LOCK
58973-34010

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-42030

ACA33..X..GCC;ACA33,38,GSA33..ARL,GEN

 1
Common parts
90467-10203
90467-12080
90523-04003
91511-B0612
93568-55014
