ACA38L-ANPXKV (2010)
Toyota Rav4
Production
Mar 2010
-
Dec 2012
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

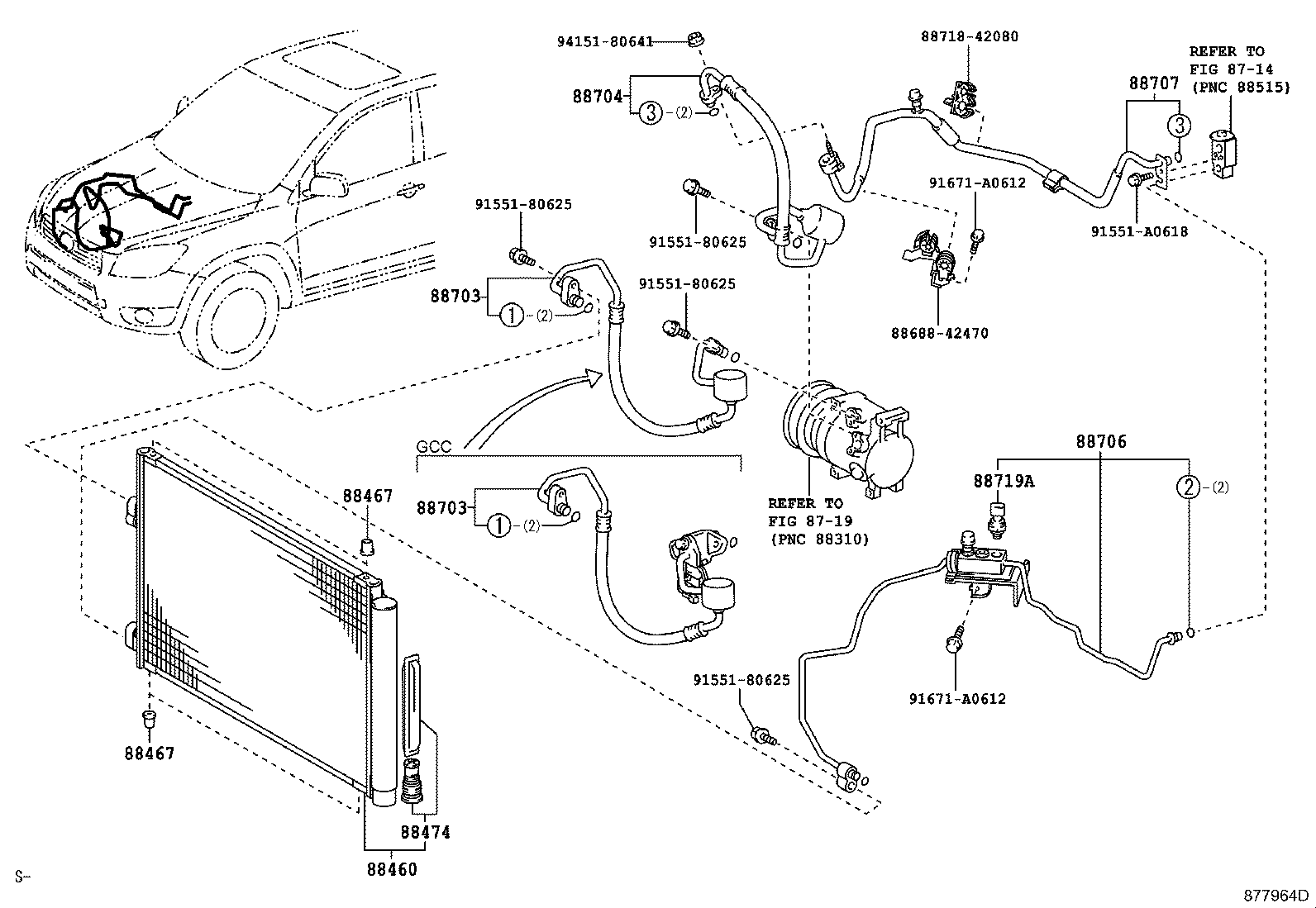

ILLUST NO. 1 OF 2(0511- )ACA31,33,38
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-42120 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
ACA3#,ALA3#,GSA33,ZSA3# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-42090 |
ACA33,38..GCC |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-42090 |
ACA33,38..GCC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-42190 |
ACA33,38 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-42400 |
ACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN) |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-42090 |
ACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
ACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 88688-42470 | ||||
| 88718-42080 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-A0612 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(0511- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
