ACA38L-ANPXKV (2010)

Toyota Rav4

Production Mar 2010 - Dec 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0511- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625H 88625P 88625Q
Part # Description Qty Price

ILLUST NO. 2 OF 3(0511- )LHD

Click highlighted areas on diagram

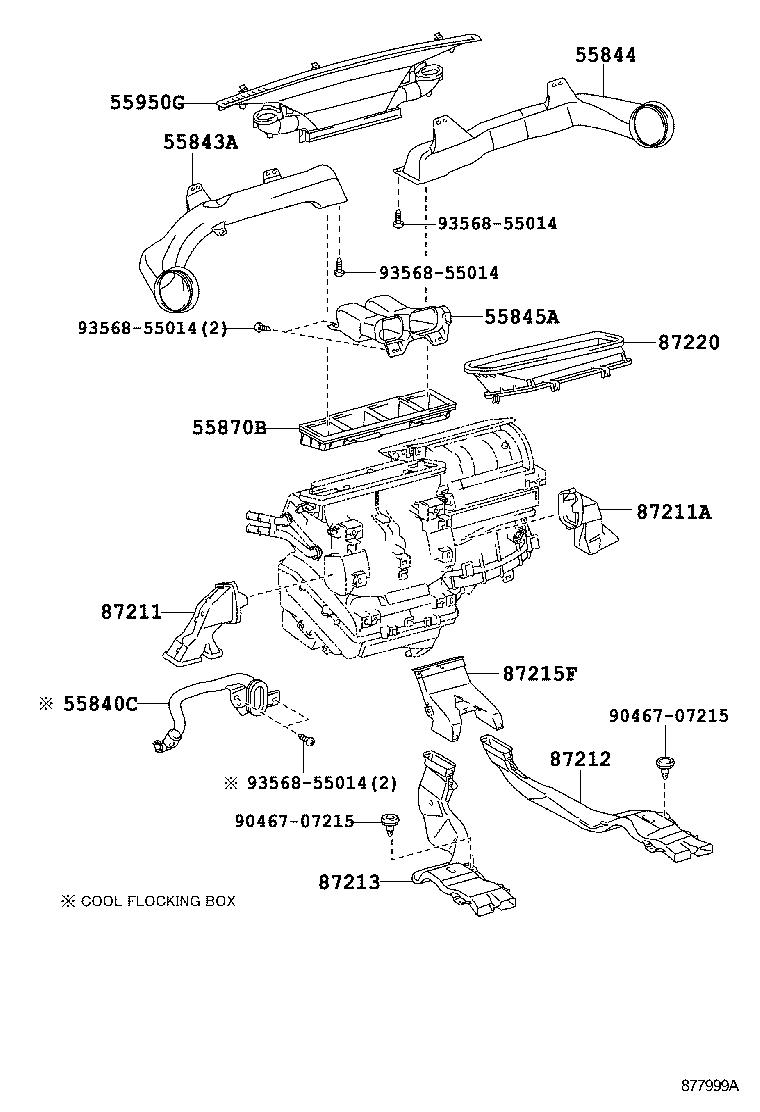

AIR DUCT

diagram 55840C 55843A 55844 55845A 55870B 55950G 87211 87211A 87212 87213 87215F 87220 9046707215 9046707215 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-42050

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-42070

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
87211 - DUCT, AIR, NO.1
87211-42090

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
87211A - DUCT, AIR, NO.2
87211-42100

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
87220 - DUCT ASSY, AIR
87220-42070

ACA38;ACA33..LHD..X;ACA33..G..GEN

 1
Common parts
90467-07215
93568-55014
